3-15.1 MAC-based VLAN
This section shows MAC-based VLAN entries configured by various MAC-based VLAN users.
Currently we support following VLAN User types:
CLI/Web/SNMP : These are referred to as static.
NAS : NAS provides port-based authentication, which involves communications between a
Supplicant, Authenticator, and an Authentication Server.
Web Interface
To Display MAC-based VLAN configuration in the web interface:
1. Click Monitor, MAC-based VLAN Status.
2. Specify the Static, NAS, Combined.
3. Display MAC-based information.

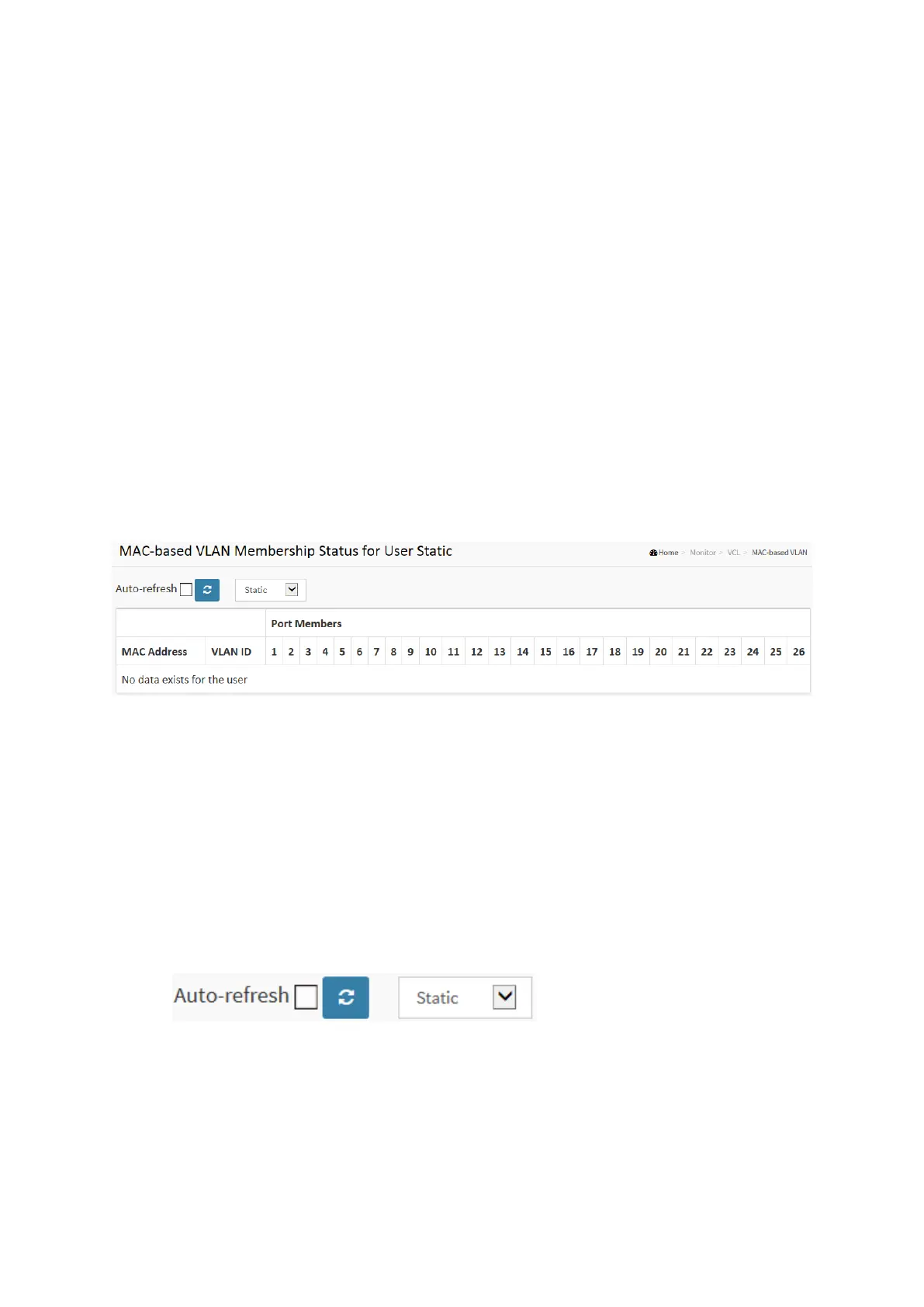

Figure 3-15.1: The MAC-based VLAN Membership Status for User Static
Parameter description:
MAC Address :
Indicates the MAC address.
VLAN ID :
Indicates the VLAN ID.
Port Members :
Port members of the MAC-based VLAN entry.
Buttons
Auto-refresh: Check this box to refresh the page automatically. Automatic refresh occurs
every 3 seconds.
Refresh: Click to refresh the page.
