3-7 Loop Protection
This section displays the loop protection port status the ports of the currently selected switch.
Web Interface
To display the Loop Protection status in the web interface:
1. Click Monitor, Loop Protection
2. If you want to auto-refresh the information then you need to evoke the “Auto refresh”.
3. Click “ Refresh“ to refresh the LACP Statistics.

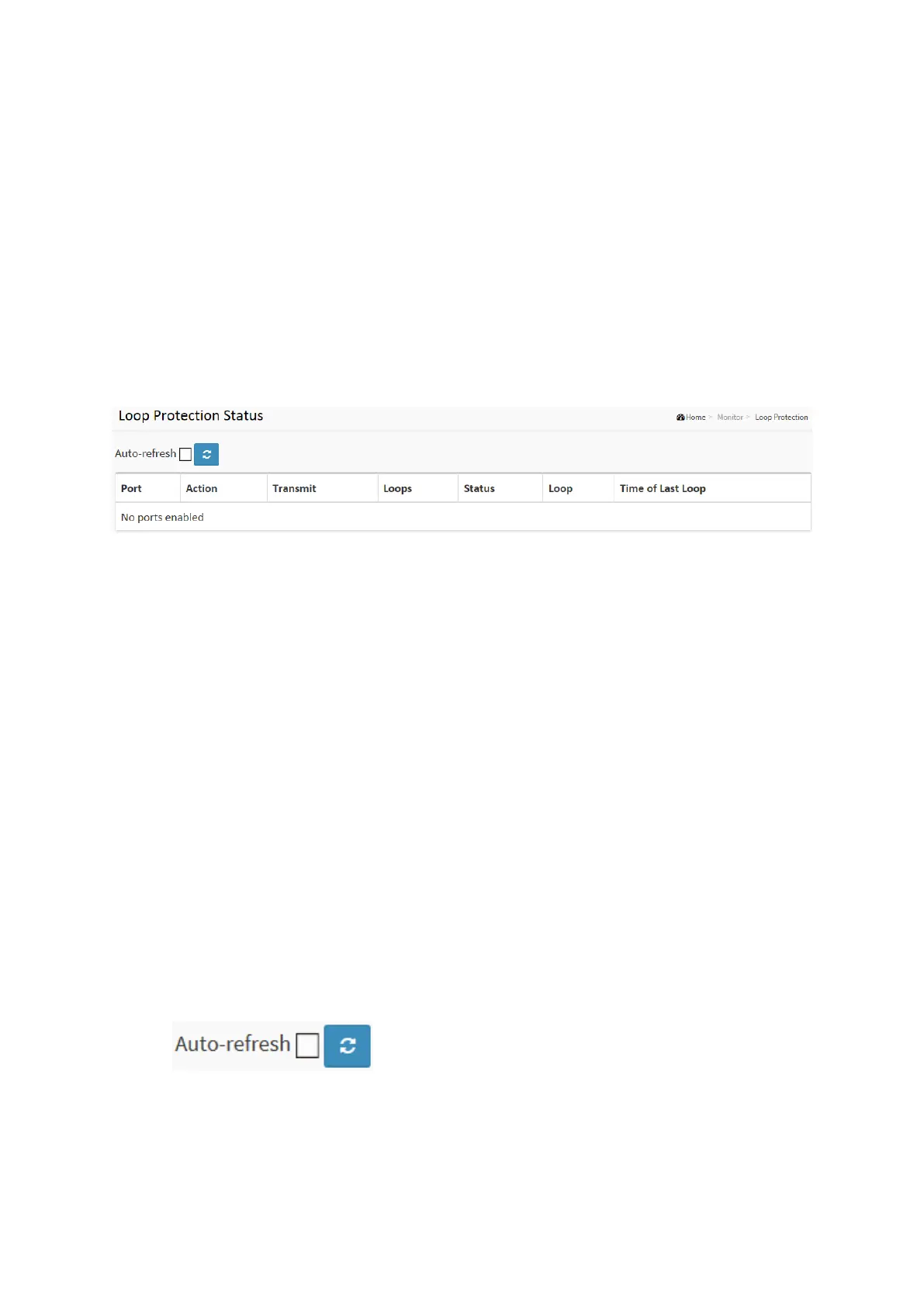

Figure 3-7: Loop Protection Status
Parameter description:
 Port
The switch port number of the logical port.
 Action
The currently configured port action.
 Transmit
The currently configured port transmit mode.
 Loops
The number of loops detected on this port.
 Status
The current loop protection status of the port.
 Loop
Whether a loop is currently detected on the port.
 Time of Last Loop
The time of the last loop event detected.
 Buttons
Refresh: Click to refresh the page immediately.
Auto-refresh: Check this box to enable an automatic refresh of the page at regular
intervals.
