LevelOne GEP-2651 - 2-4.1.2 Excluded IP

Publication date: June, 2015
Revision A1
24
2-4.1.2 Excluded IP
This page configures excluded IP addresses. DHCP server will not allocate
these excluded IP addresses to DHCP client.
Web Interface
To configure DHCP server excluded IP in the web interface:
1. Click Configuration, DHCP, Server, Excluded IP
2. Click Add IP Range then you can create new IP Range on the switch.
3. Click Apply.

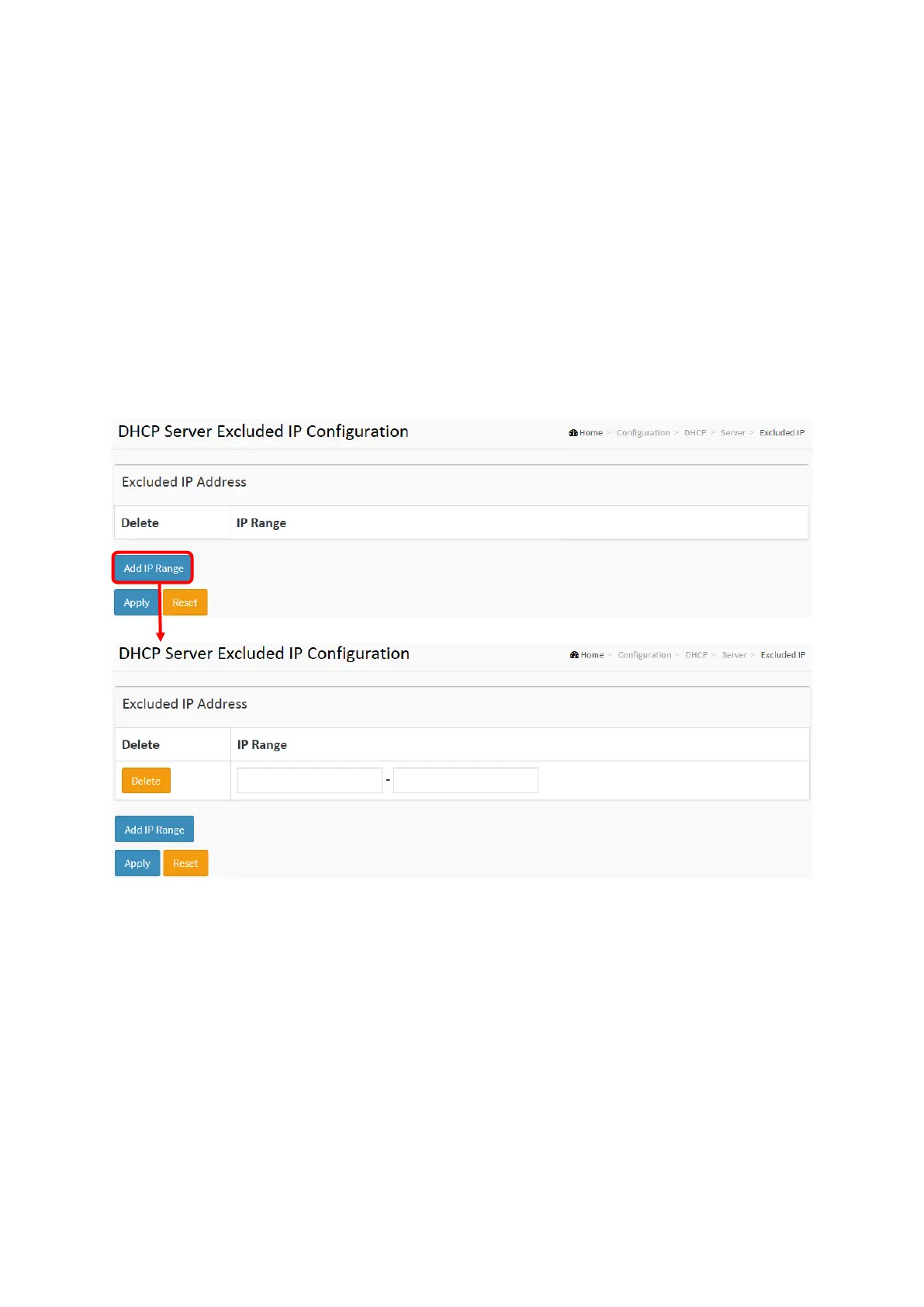

Figure 2-4.1.2: The DHCP server excluded IP
Parameter description:
 IP Range :
Define the IP range to be excluded IP addresses. The first excluded IP must be smaller than or equal to
the second excluded IP. BUT, if the IP range contains only 1 excluded IP, then you can just input it to
either one of the first and second excluded IP or both.
 Buttons
Add IP Range - Click to add a new excluded IP range.
Apply – Click to save changes.
Reset - Click to undo any changes made locally and revert to previously saved values.
