158
Parameter description:
 Port :
The logical port for the settings contained in the same row. Click on the port number in
order to configure the schedulers.
 Mode :
Shows the scheduling mode for this port.
 Weight (Qn) :
Shows the weight for this queue and port.
 Scheduler Mode :
Controls whether the scheduler mode is "Strict Priority" or "Weighted" on this switch port.
 Queue Shaper Enable :
Controls whether the queue shaper is enabled for this queue on this switch port.
 Queue Shaper Rate :
Controls the rate for the queue shaper. The default value is ?. This value is restricted
to ?-1000000 when the "Unit" is "kbps", and it is restricted to 1-? when the "Unit" is "Mbps.
 Queue Shaper Unit :
Controls the unit of measure for the queue shaper rate as "kbps" or "Mbps". The default
value is "kbps".

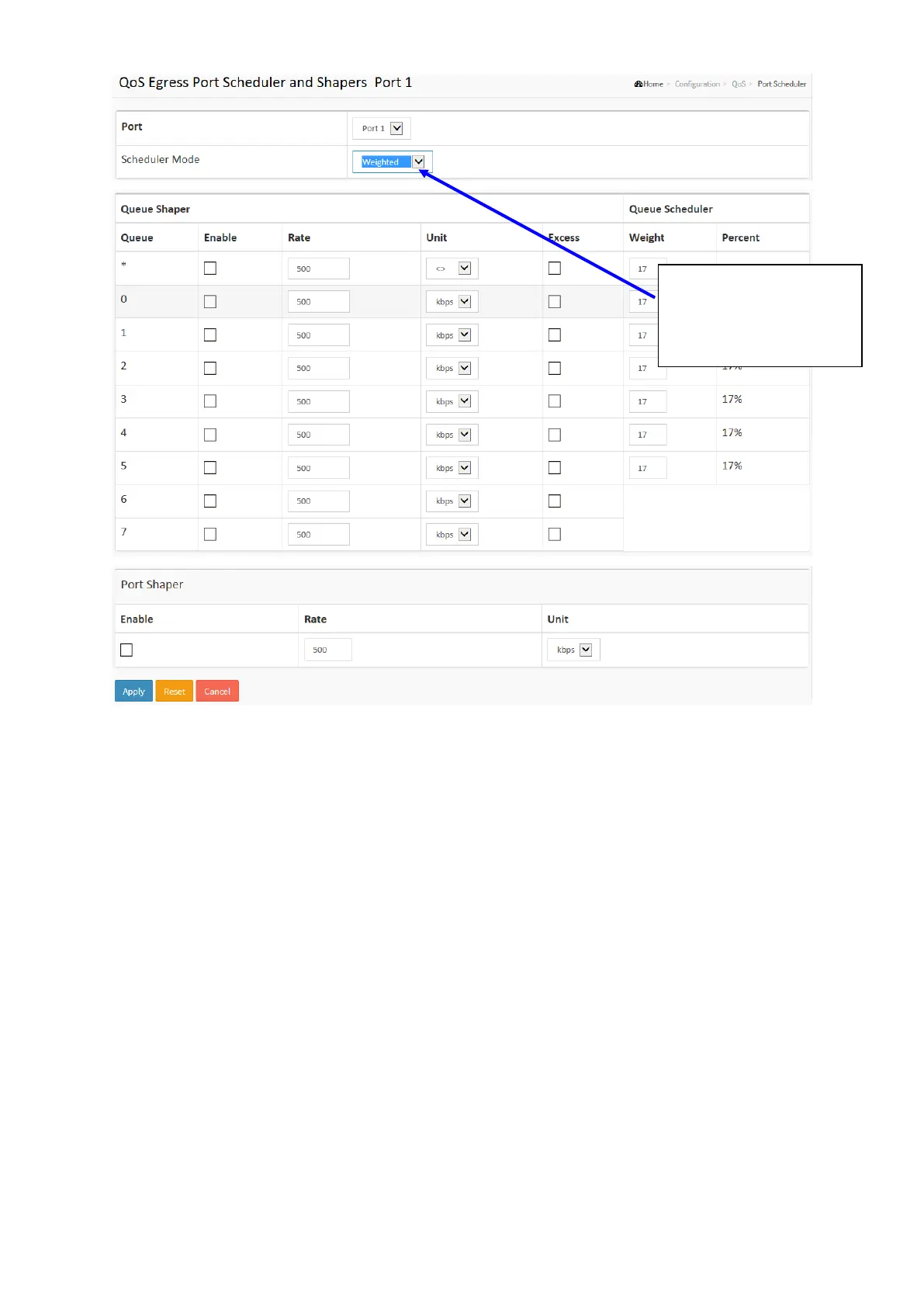

If you select the scheduler
mode with wighted then
the screen will change as
the figure.
