Action :
Indicates the forwarding action of the ACE.
Permit: Frames matching the ACE may be forwarded and learned.
Deny: Frames matching the ACE are dropped.
Filter: Frames matching the ACE are filtered.
Rate Limiter :
Indicates the rate limiter number of the ACE. The allowed range is 1 to 16. When Disabled is
displayed, the rate limiter operation is disabled.
Port Redirect :
Indicates the port copy operation of the ACE. Frames matching the ACE are copied to the
port number. The allowed values are Disabled or a specific port number. When Disabled is
displayed, the port copy operation is disabled.
Mirror :
Specify the mirror operation of this port. The allowed values are:
Enabled: Frames received on the port are mirrored.
Disabled: Frames received on the port are not mirrored.
The default value is "Disabled".
CPU :
Forward packet that matched the specific ACE to CPU.
CPU Once :
Forward first packet that matched the specific ACE to CPU.
Counter :
The counter indicates the number of times the ACE was hit by a frame.
Conflict :
Indicates the hardware status of the specific ACE. The specific ACE is not applied to the
hardware due to hardware limitations.
Buttons

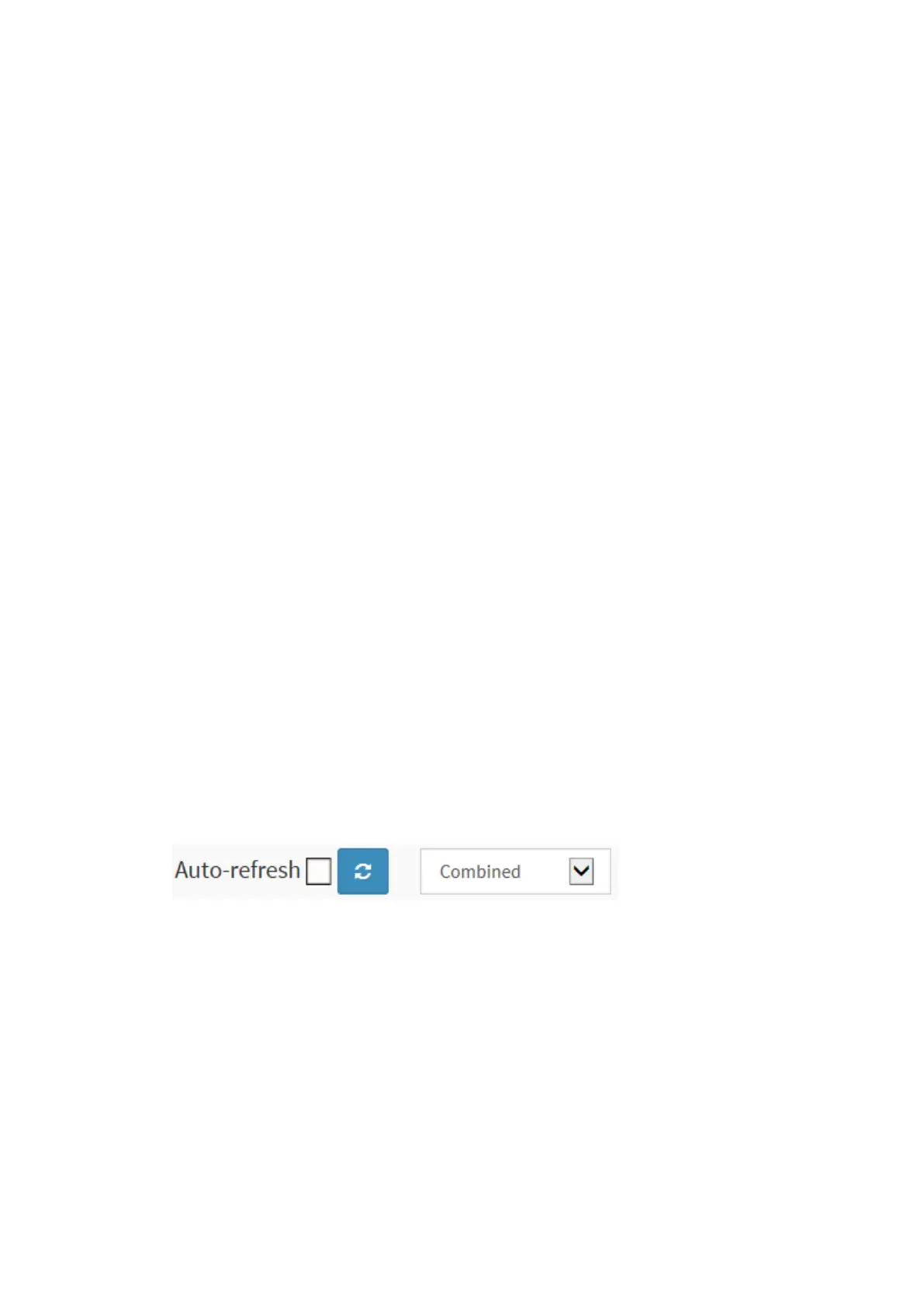

Auto-refresh: Check this box to refresh the page automatically. Automatic refresh occurs
every 3 seconds.
Refresh: Click to refresh the page.
