2-5.1.6.2 History
Configure RMON History table on this page. The entry index key is ID.
Web Interface
To display the configure RMON History in the web interface:
1. Click RMON, History.
2. Click Add New Entry.
3. Specify the ID parameters.
4. Click Apply.

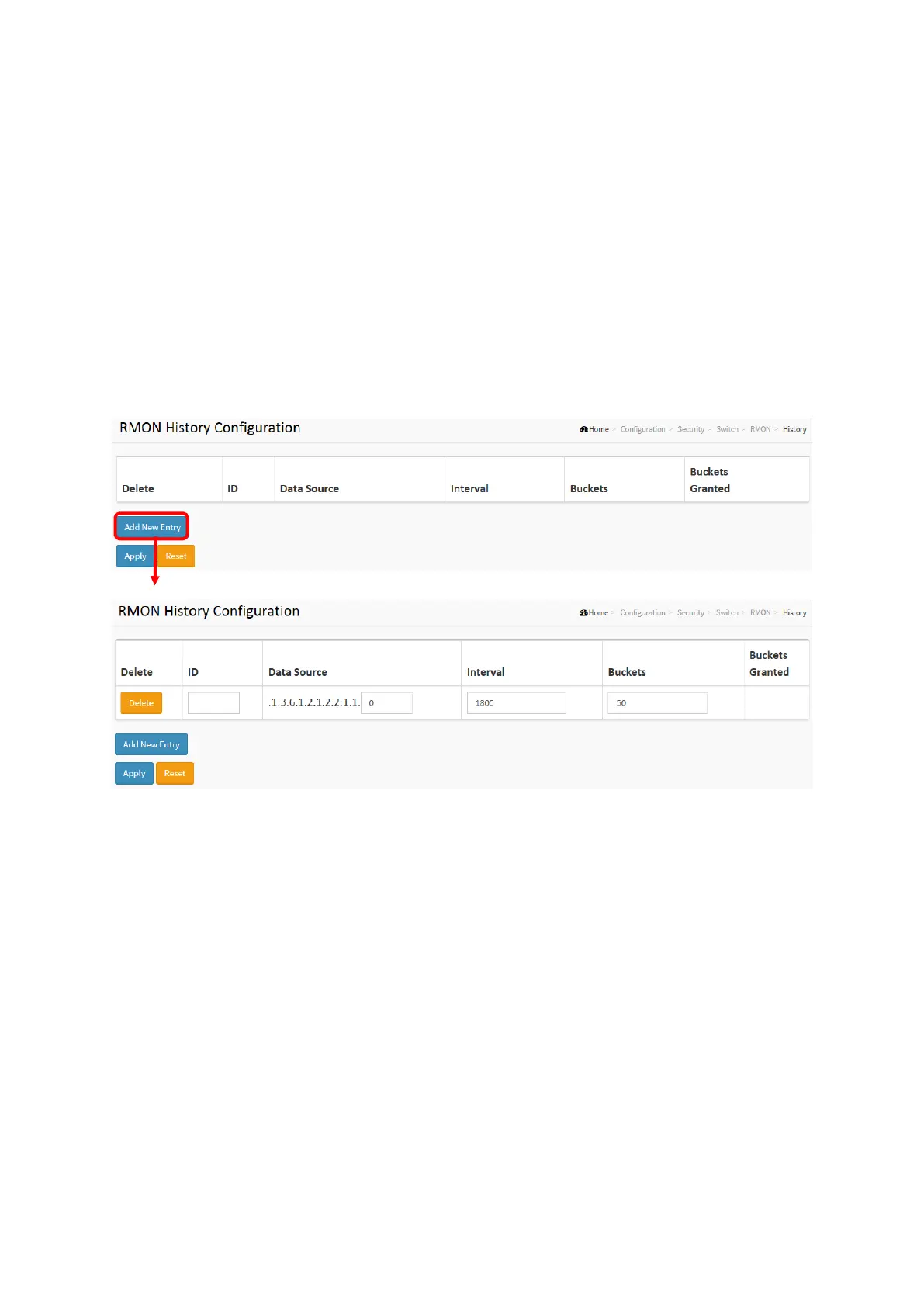

Figure 2-5.1.6.2: The RMON History Configuration
Parameter description:
These parameters are displayed on the RMON History Configuration page:
Delete
Check to delete the entry. It will be deleted during the next save.
ID
Indicates the index of the entry. The range is from 1 to 65535.
Data Source
Indicates the port ID which wants to be monitored. If in stacking switch, the value must add
1000*(switch ID-1), for example, if the port is switch 3 port 5, the value is 2005
Interval
Indicates the interval in seconds for sampling the history statistics data. The range is from 1
to 3600, default value is 1800 seconds.
Buckets
Indicates the maximum data entries associated this History control entry stored in RMON.
The range is from 1 to 3600, default value is 50.
