2-5.2.5.2 Navigating the VLAN Configuration
Each page shows up to 9999 entries from the VLAN table, default being 20, selected through
the "entries per page" input field. When first visited, the web page will show the first 20 entries
from the beginning of the VLAN Table. The first displayed will be the one with the lowest VLAN
ID found in the VLAN Table.
The "VLAN" input fields allow the user to select the starting point in the VLAN Table. Clicking
the button will update the displayed table starting from that or the closest next VLAN Table
match. The will use the next entry of the currently displayed VLAN entry as a basis for the next
lookup. When the end is reached the warning message is shown in the displayed table. Use the
button to start over.
Web Interface
To configure a VLAN Mode Configuration in the web interface:
1. Click “Add new entry”.
2. Specify the VLAN ID, Log Type
3. Click Apply.

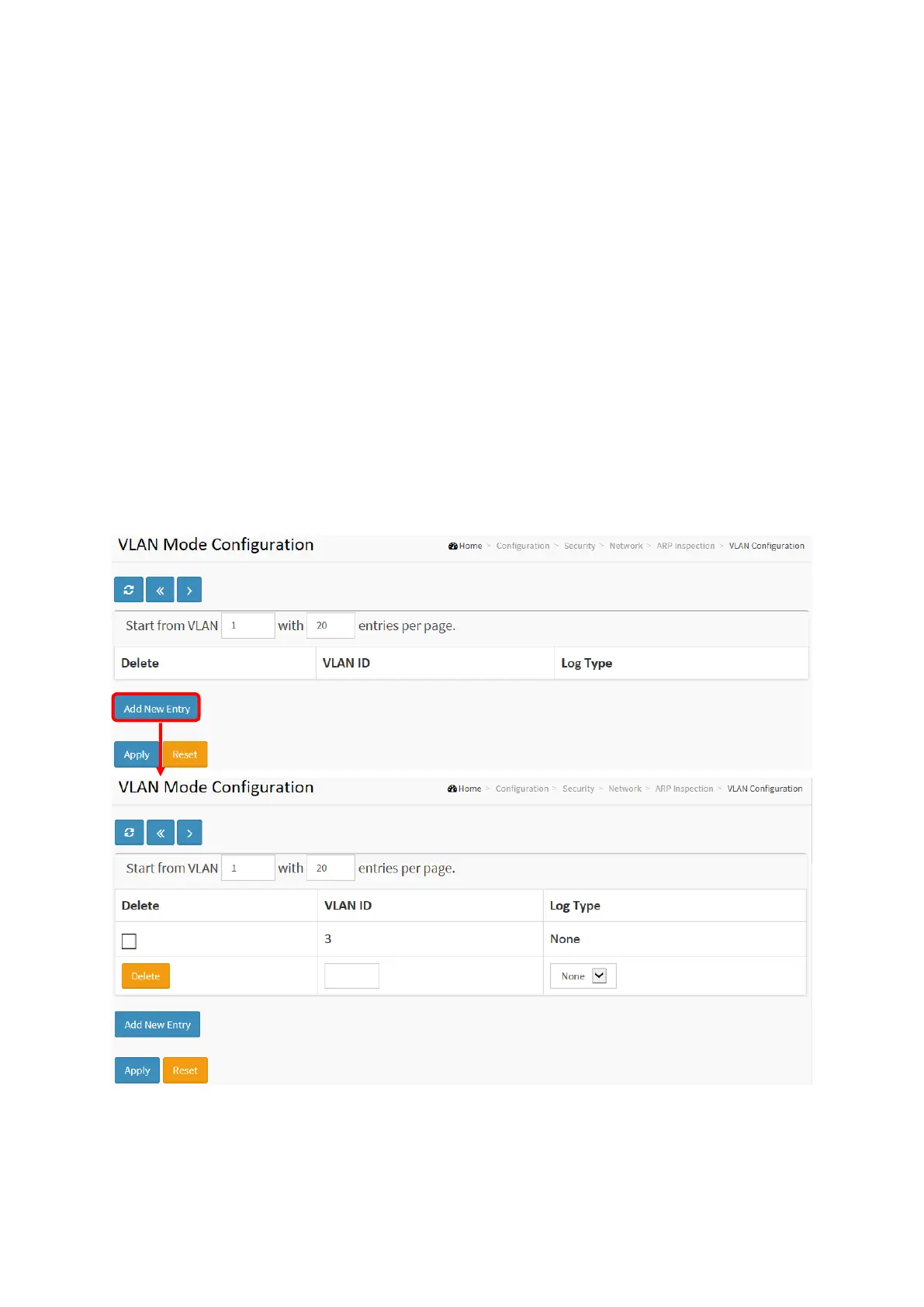

Figure 2-5.2.5.2: The VLAN Mode Configuration
