Leviton EZ-MAX - Termination

Page 130
Termination
All CAN based networks must be terminated at both ends. The Z-MAX Master/Slave
network is no exception.
Each panel has a termination jumper. When a relay panel is the last
panel on the run,
it’s termination jumper must be installed.

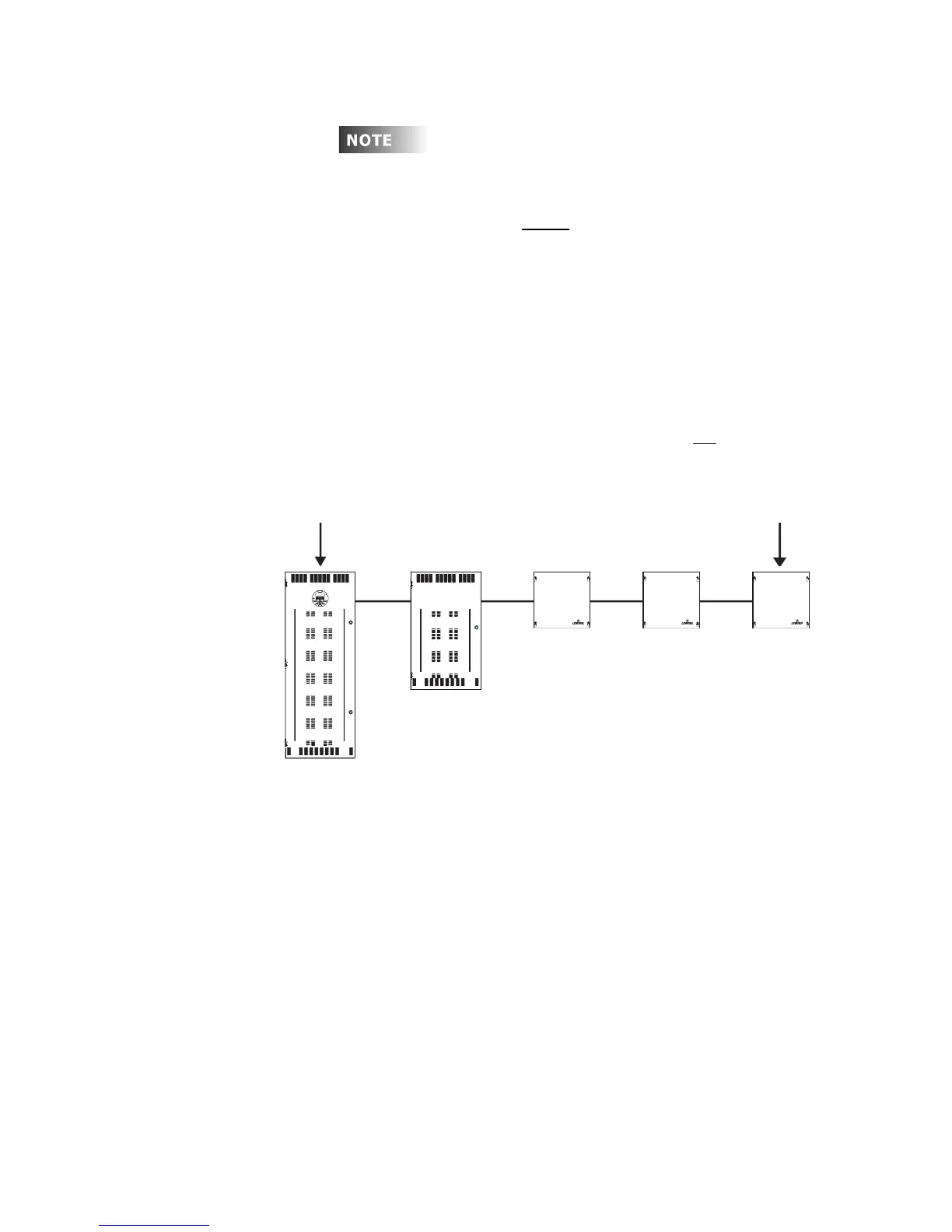

Figure 11: Cabinets requiring termination
RJ
-
45
connec
t
ors mus
t
b
e
"
cr
i
mpe
d"
on
t
o
th
e
end of your Category-5e cable in order to
successfully make your connections. This requires
a special tool made specifically for this purpose
called an "RJ-45 Crimper" or other similar
terminology. Always
use one of these crimpers
when making these connections. Read and
understand the instruction by the crimpers
manufacturer prior to use. Leviton offers a
crimper as Leviton part number 47613-EZC.
48 Relay Master Cabinet
24 Relay Remote Cabinet
4 Relay Remote Cabinet 4 Relay Remote Cabinet 4 Relay Remote Cabinet
Terminate this cabinet
Terminate this cabinet
