Low-Voltage Input Terminals & Connections

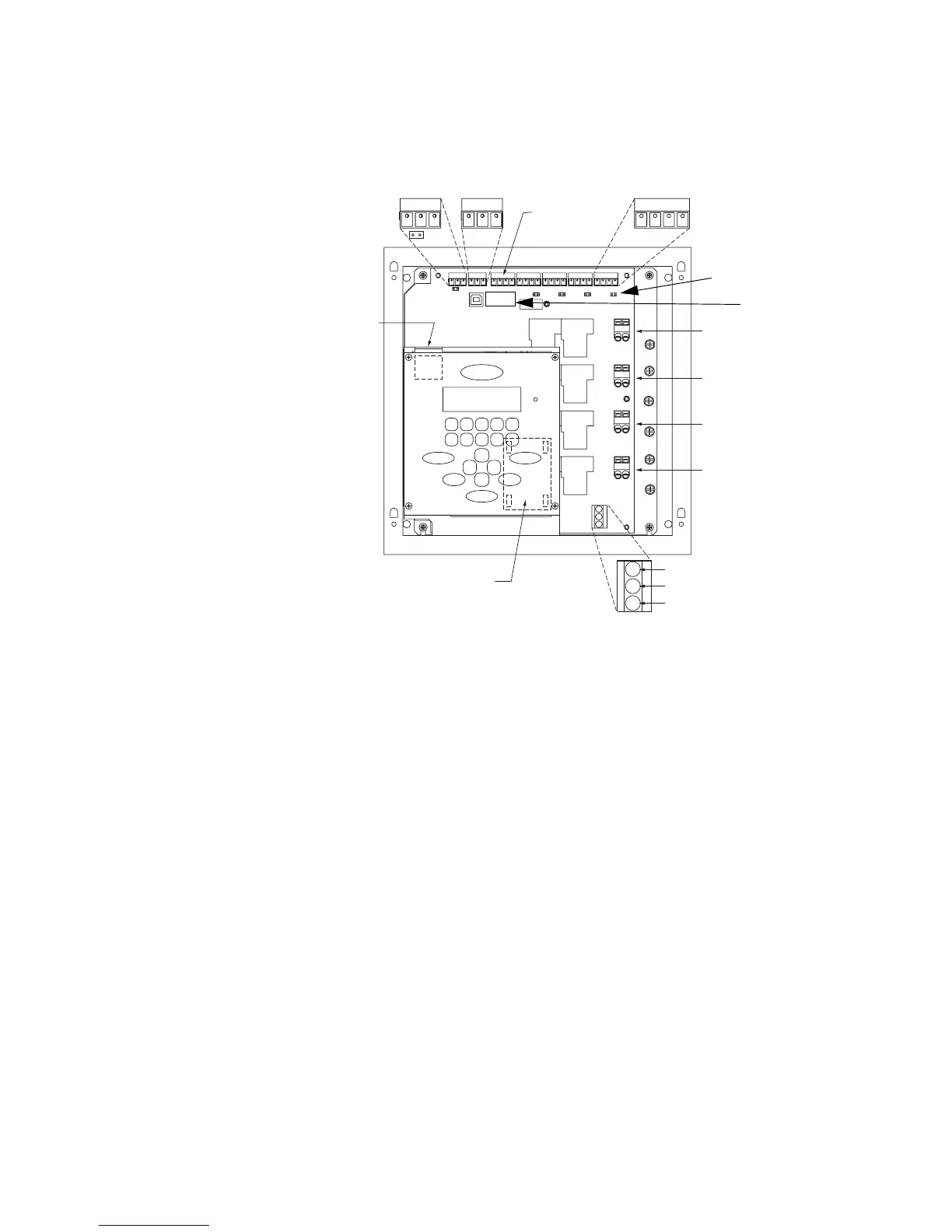

The next several drawings show the location of inputs in the various cabinet types.
Figure 5: Low Voltage Input Locations, 4 relay remote & EZ-max relay
cabinets
Active hi/low jumper
1A 2A G
SLOW BLO W FUSE
Relay #1
Relay #2
Relay #3
Relay #4
USB
Connector
Control
Power
Input
Additional
Common
Terminations
RJ Connector
for Modem
277VAC (347V on 347V models)
120VAC
Neutral
Socket for
Optional Modem
Photocell
IN +V COM
Occupancy
Sensor
IN +24V COM
Input #1
(2-4 typical)
ON OFF +24V OUT
INPUT 1INPUT 2INPUT 3INPUT 4
13W Required
Control Input Power
active high/low
jumper
Input
Polarity
IC (See text)
(IC #U4)
