CHAPTER 3: SETTING INTO OPERATION 3 - 3
TRYTON 112 CNC
From this point on, the bar feed system is unpacked in the same way as when delivered on
a pallet. The Tryton 112 bar feed system is always delivered as follows :

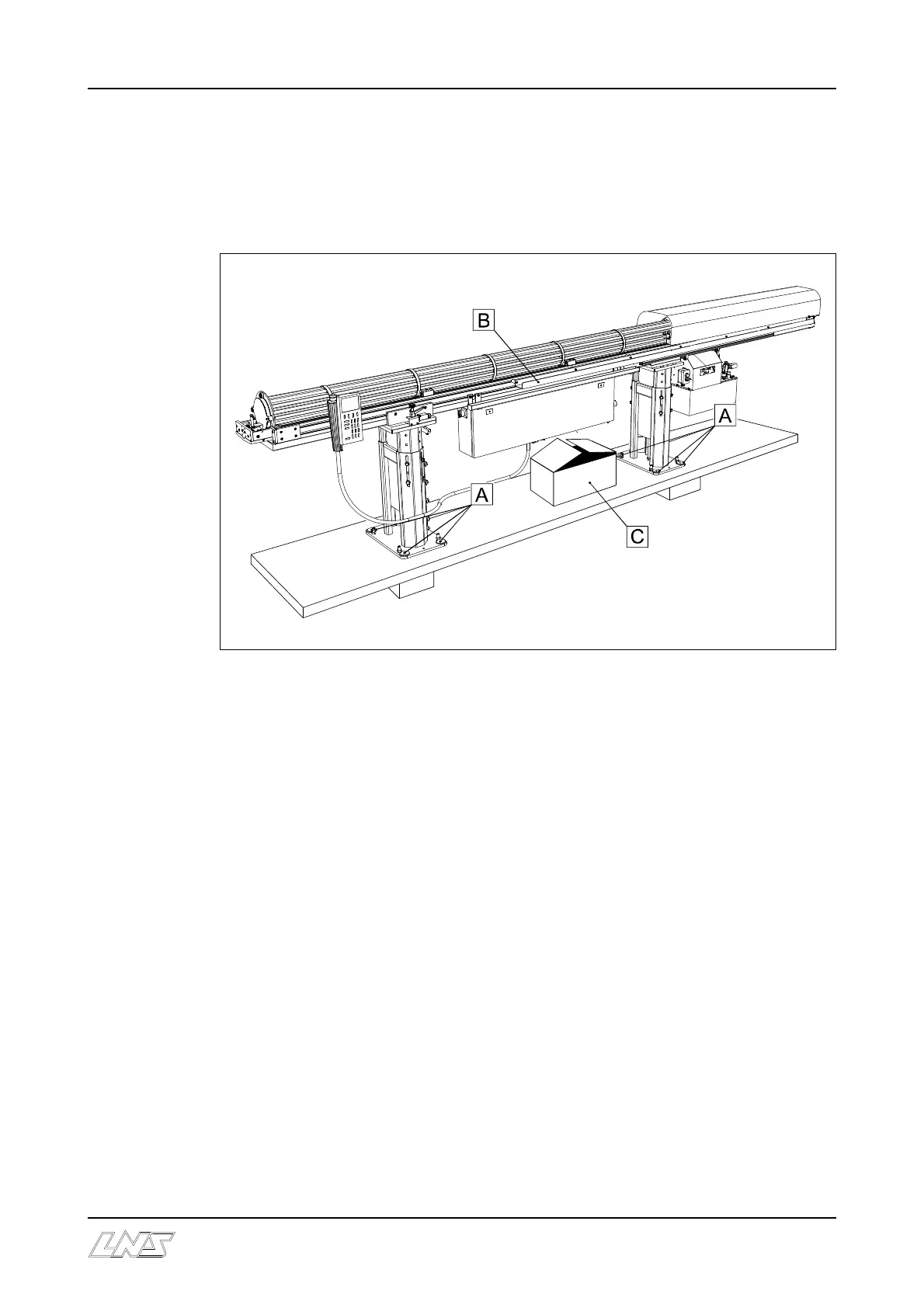

C The bar feed system is completely assembled and fastened to the pallet by 8 screws (A).
C A pusher is delivered installed in the bar-feeder. Any additional accessories are supplied
fixed to the support (B).
C The interface plug and technical documentation are packed separately (C), with the
installation components and tools.
Unpack the accessories and tools then place them so that they are accessible when the pusher
is installed.
1.3 Preparation for mounting
For mounting and installing the bar feed system, it is advisable to contact LNS or one of its
agents. The latter cannot be held responsible for any malfunction resulting from an incorrect
installation in which they did not take part.
