CHAPTER 4: ELECTRICS 4 - 7
TRYTON 112 CNC
2.2 Description of the elements in the control cabinet
2.2.1 Main disconnect switch QS1
In accordance with the requirements of the
international IEC standards, when the main
disconnect switch is at 0off, it interrupts
the input of the three phases in the control
cabinet of the bar feed system.

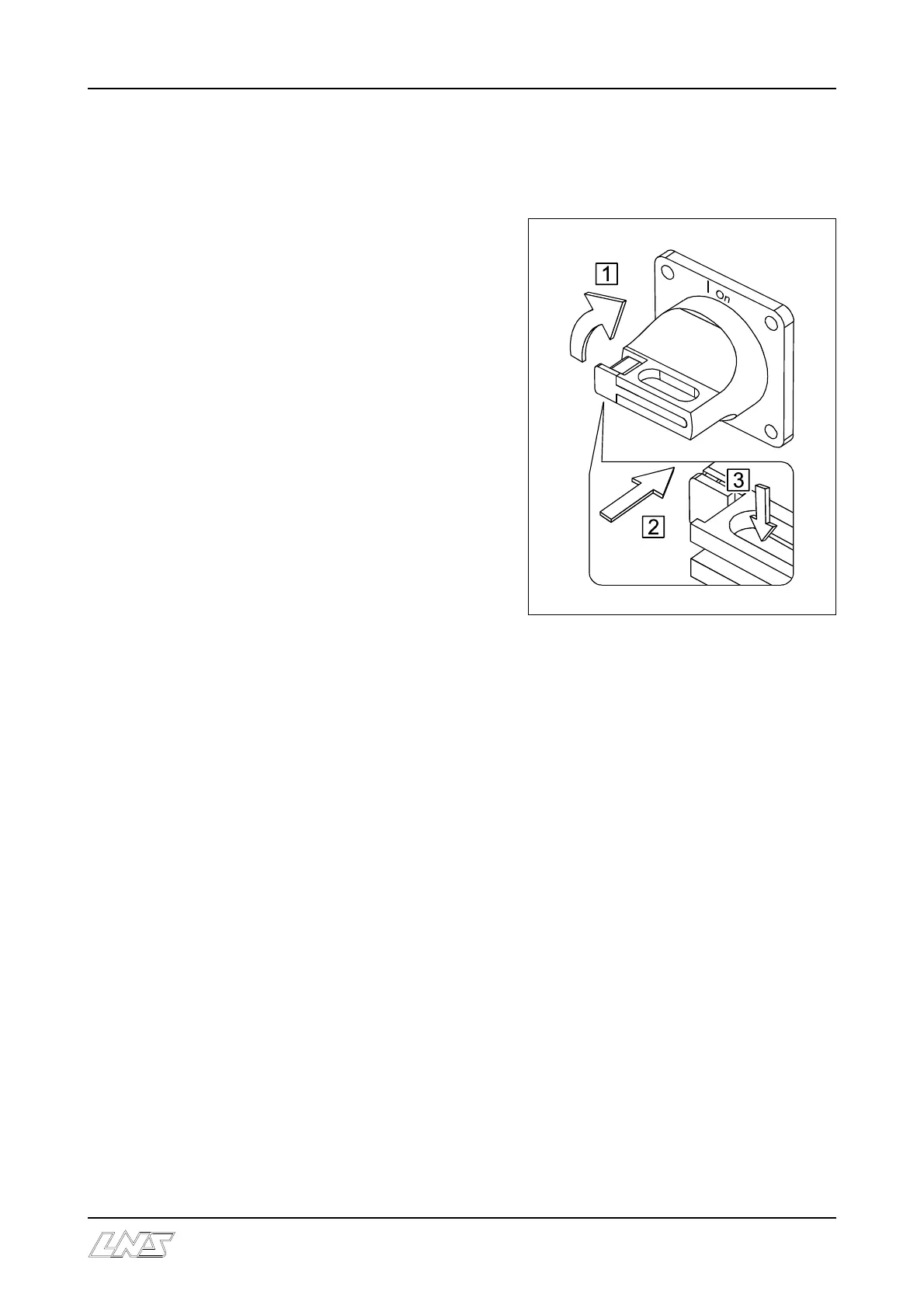

To power up the bar feed system, turn (1)
the switch handle to the right, to the Ion
position.
To power down , turn the switch to the left,
to the 0off position.
The main switch can be locked with a
padlock. This way, it is impossible to turn
the bar feed system on.
Push (2) the locking mechanism and insert
(3) the padlock into the opening. Lock the
padlock.
