CHAPTER 4: ELECTRICS 4 - 9
TRYTON 112 CNC
2.2.3 Transformer
The transformer powers the entire low voltage network of the bar feed system, as well as a
portion of the interface signals, (see section 4.3.2).
The output is protected by a fuse set on a support.
Although fuse seldom need replacing, is it advisable to keep some spare ones on hand.
On the primary side, the transformer accepts a voltage of 220 to 480 volts, 50 or 60 Hz.
Measure the power provided by the lathe, and, if necessary, adapt the cable on the power
terminal block (A).

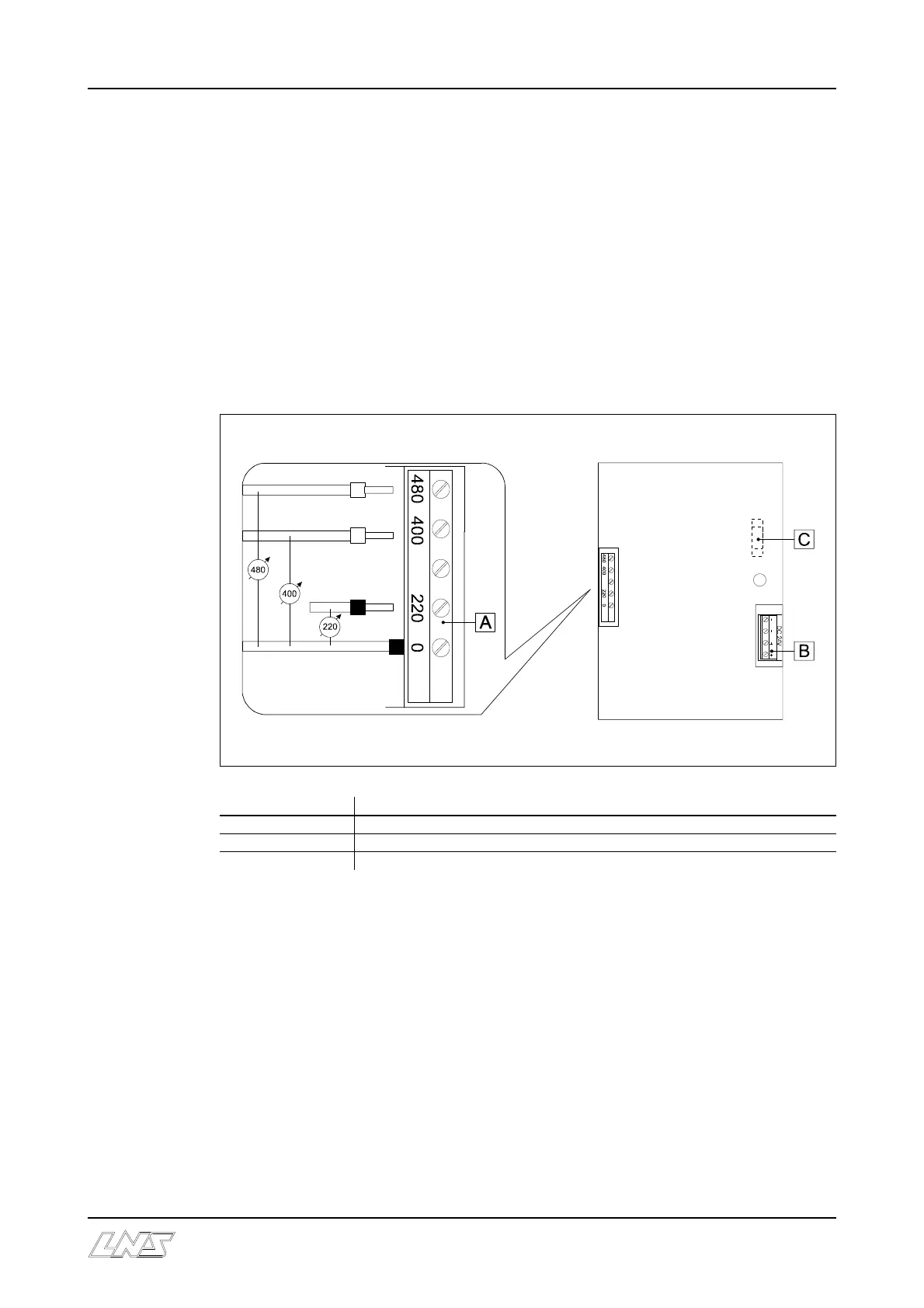

Designation Description
A Primary terminal block, 220V-380V / 50hz or 60 Hz ± 15%
B Output , 24 Vdc, terminal block
C Fuse 5 Amps for 24 Vdc
