CHAPTER 4: ELECTRICS 4 - 11
TRYTON 112 CNC

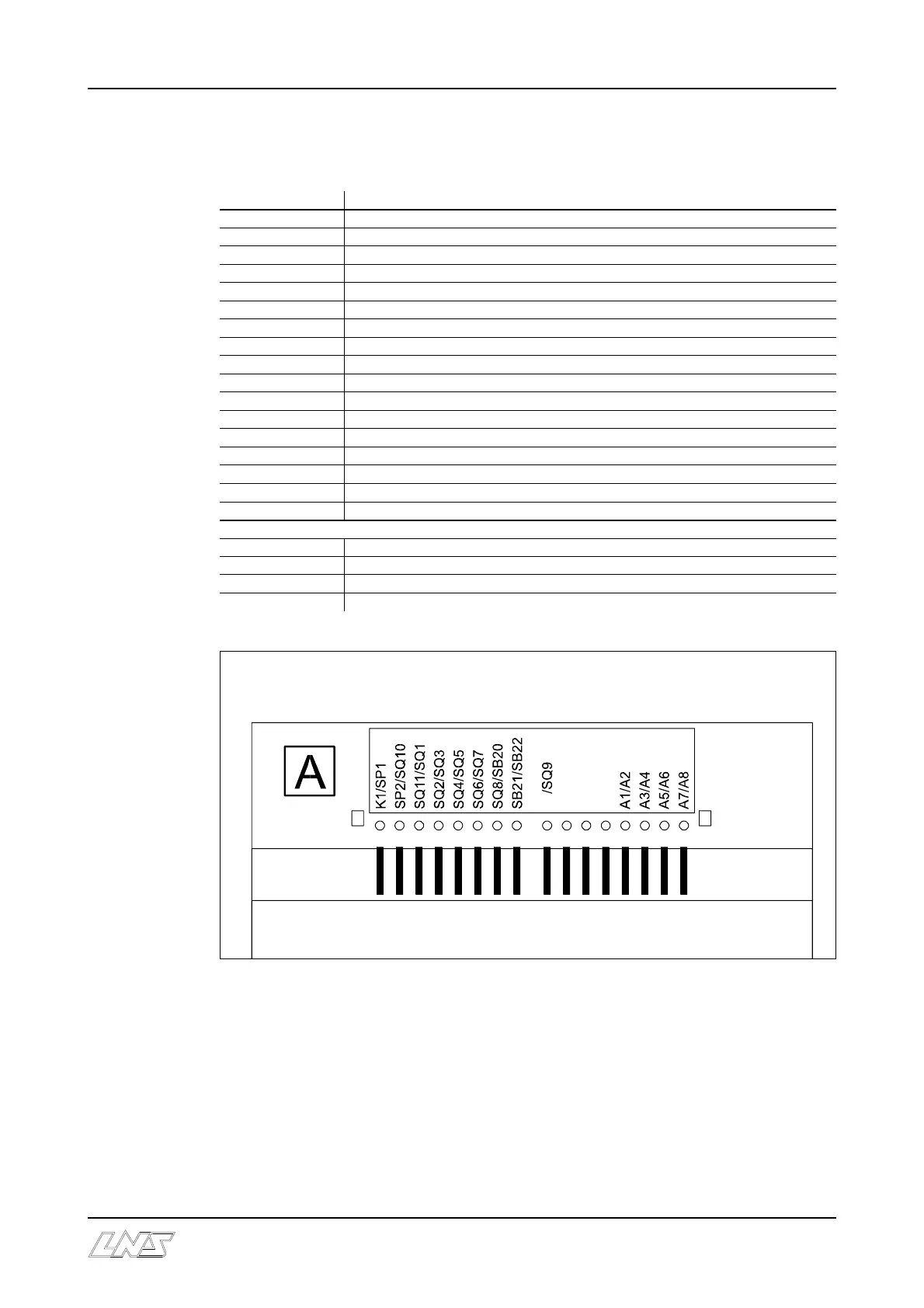

A) Input
Designation Description
K 1 Emergency stop control circuit
SP 1 Air pressure switch
SP 2 Hydraulic pressure control switch
SQ 1 Positioning stopper proximity switch
SQ 2 Barrel indexing
SQ 3 Indexing hole detector
SQ 4 Material presence control proximity switch
SQ 5 Front end-of-travel connector
SQ 6 Rear end-of-travel connector
SQ 7 Locked piston
SQ 8 End of bar
SQ 10 Loading arm security switch (option)
SQ 11 Main access cover safety switch
SB 20 Load push-button
SB 21 Selector / Advance
SB 22 Selector / Retract
SR 2 Pulse generator: Counting
Interface
A 1 Clamping device of the lathe Open
A 2 Lathe in Automatic cycle
A 3 Load command (according to application)
A 4 Cams engaged
