CHAPTER 8 : OPERATION 8 - 13
TRYTON 112 CNC
8
9
10

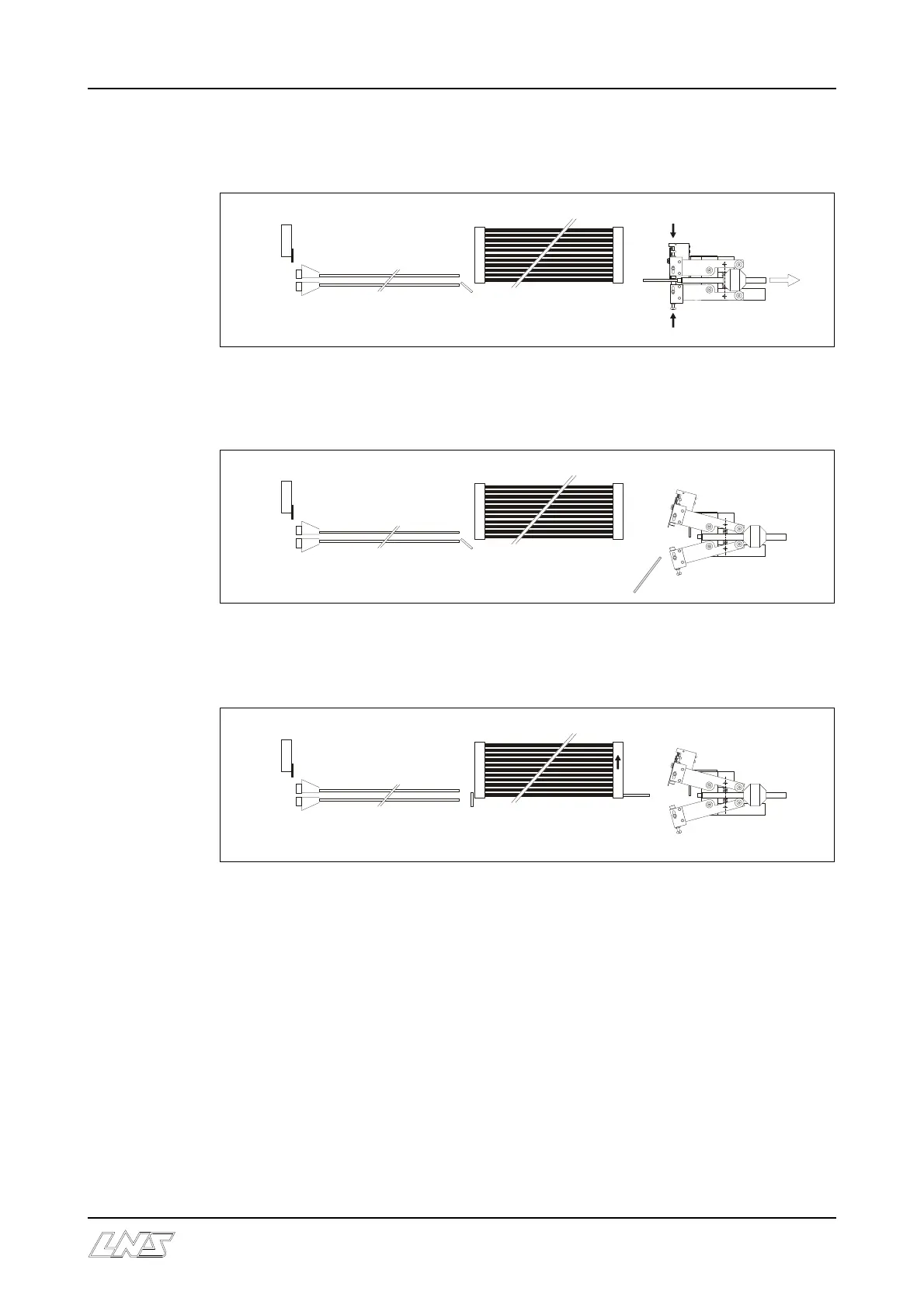

8. When mobile vice reaches the end-stop, the cam separates the ball-bearings and
the jaws grip the remnant.
9. The connector withdraws to the end-stop and extracts the remnant from the
barfeed collet.
10. The barrel is then indexed and it positions the next bar in the axis of the pusher
and the spindle. The loading cycle restarts.
