Beta Draft Confidential
Installing and Removing Modules
Switch Processor Module
CBX 500 Multiservice WAN Switch Hardware Installation Guide 4/5/036-5
InstallinganSPModule

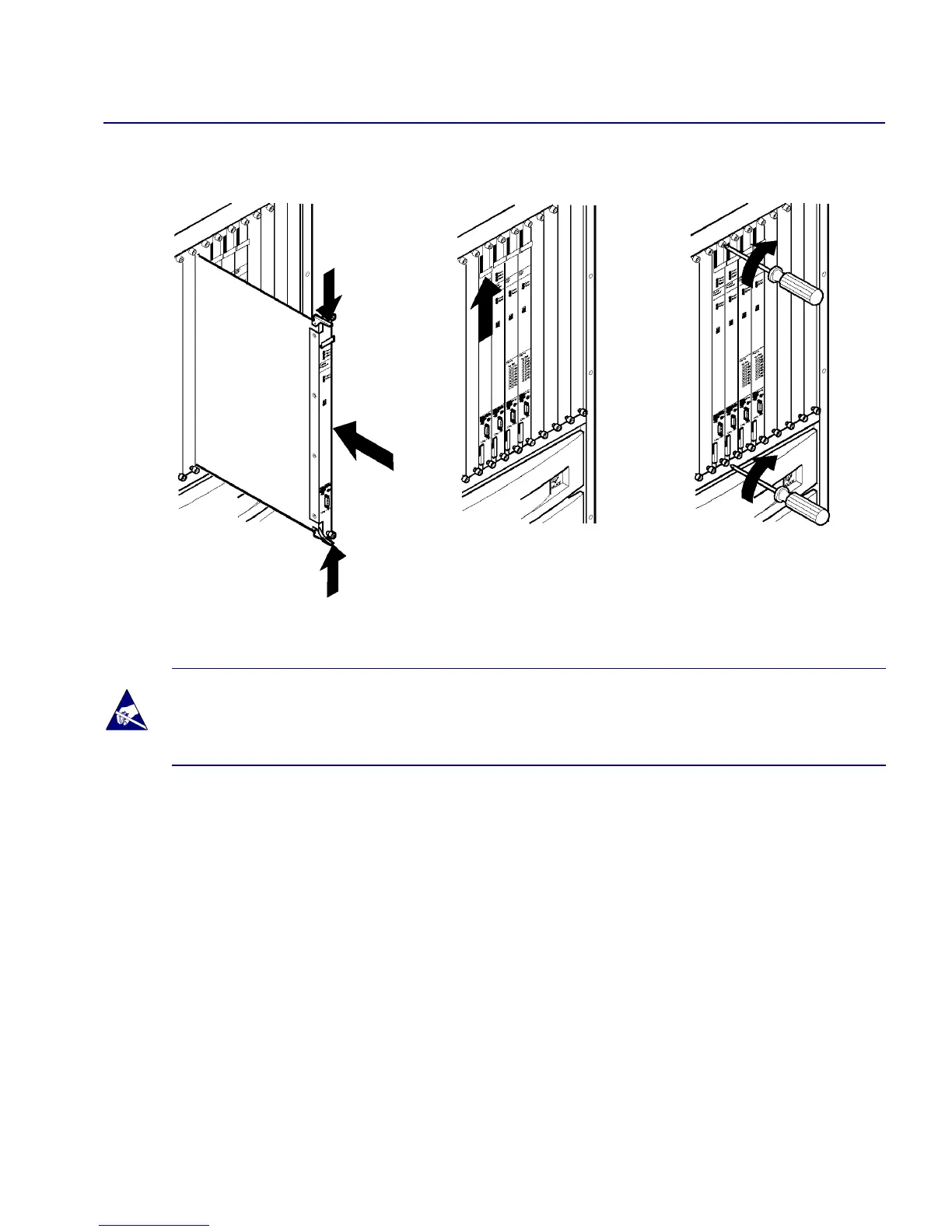

Figure 6-2. Installing an SP Module
To install an SP module:
1. Align the replacement SP module with the card guide and carefully slide the
module into the switch.
2. Depress the card ejectors simultaneously to seat the module into the backplane.
3. Slide the card ejector lock up.
4. Using a #2 Phillips-head screwdriver, tighten the two thumbscrews (using a
maximum of 6 to 8 inch-pounds of torque).
5. If necessary, restore power to the switch.
Lift
Warning – The following procedure may make the device susceptible to electrostatic
charge.
