Installing the CBX 500 Switch
Setting Up the Switch
Beta Draft Confidential
4-64/5/03 CBX 500 Multiservice WAN Switch Hardware Installation Guide
3. Repeat Steps 1 and 2 to install the second mid-mount bracket onto the other side
of the switch.
Installing 23-inch Front-Mount Brackets
Figure 4-3 shows how to install the 23-inch front-mount brackets onto the switch.

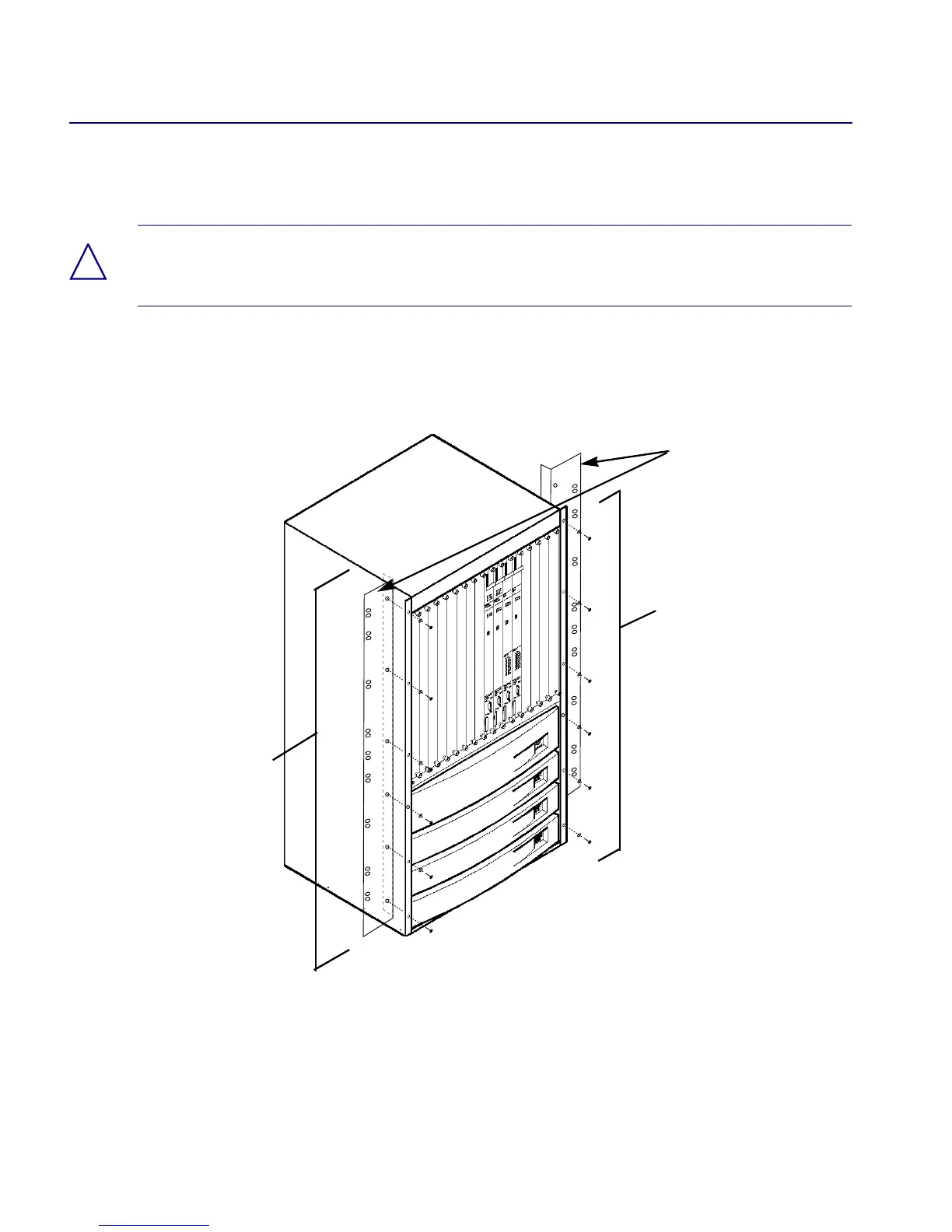

Figure 4-3. Installing 23-inch Front-Mount Brackets
!
Caution – Failure to use the proper screws may damage the switch.
6 #10 Ext. Tooth
Lock Washers
6 #10 Ext. Tooth
Lock Washers
6Screws
(#10-32 x .25)
6Screws
(#10-32 x .25)
Front-Mount Brackets
To Next Page
