Installing the CBX 500 Switch
Setting Up the Switch
Beta Draft Confidential
CBX 500 Multiservice WAN Switch Hardware Installation Guide 4/5/034-5
Installing 23-inch Mid-Mount Brackets
Figure 4-2 shows how to install the 23-inch mid-mount brackets onto the switch.

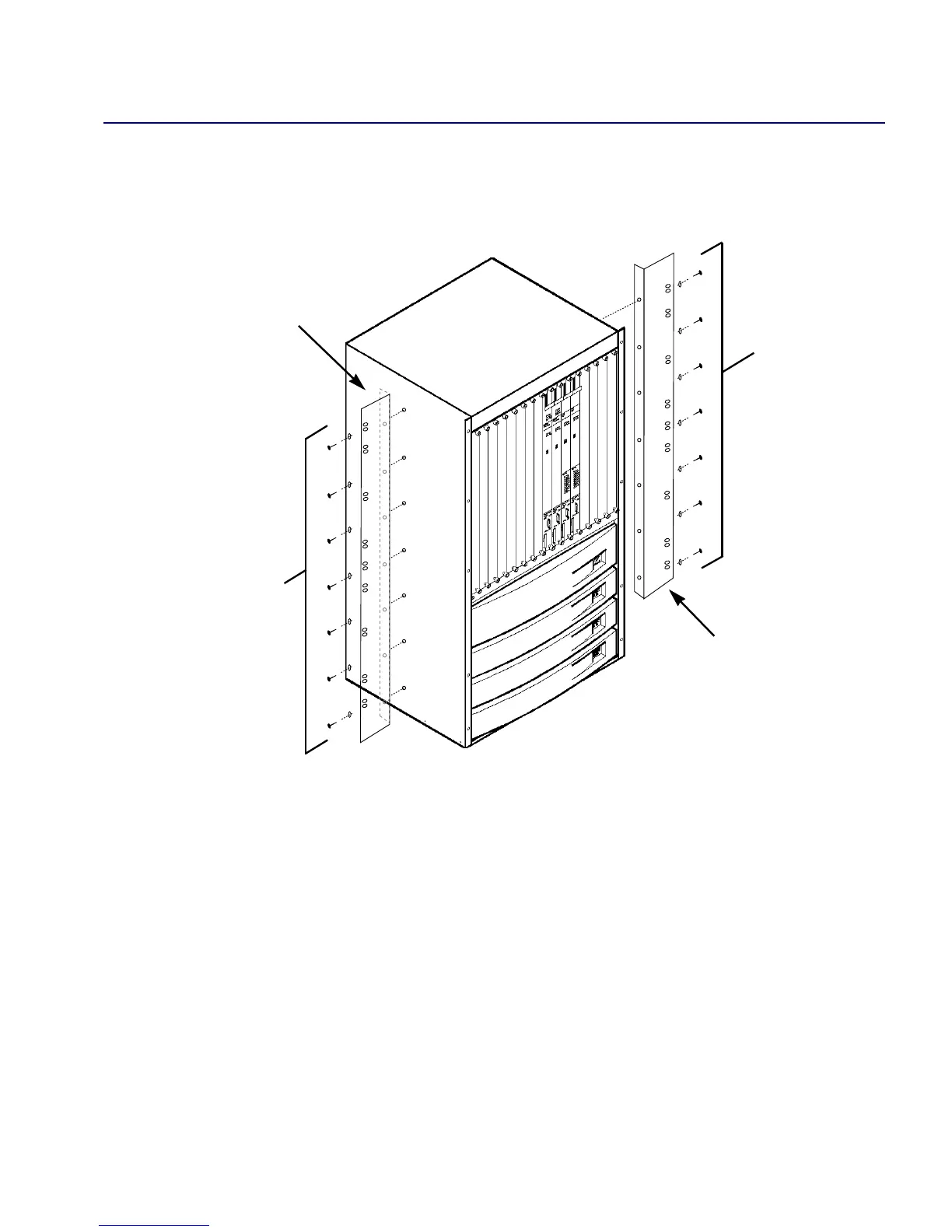

Figure 4-2. Installing 23-inch Mid-Mount Brackets
To install 23-inch mid-mount brackets onto the switch:
1. Position a mid-mount bracket onto one side of the switch, lining up the seven
screw holes on the bracket with the seven screw holes on the side of the switch.
Figure 4-2 shows the correct orientation of the brackets.
2. Using a #2 Phillips-head screwdriver, install the seven #10-32 x .25 truss-head
screws and #10 external tooth lock washers that came with the brackets through
the mid-mount bracket holes into the switch. Use a maximum of 6to8
inch-pounds of torque.
7#10Ext.Tooth
Lock Washers
7Screws
(#10-32 x .25)
Mid-Mount
Bracket
7Screws
(#10-32 x .25)
7#10Ext.Tooth
Lock Washers
Mid-Mount
Bracket
