Installing the CBX 500 Switch
Setting Up the NMS
Beta Draft Confidential
4-124/5/03 CBX 500 Multiservice WAN Switch Hardware Installation Guide
management traffic from burdening the switch. See the B-STDX, CBX, and GX
Getting Started User’s Guide for information about setting up a management PVC
connection
(see page 4-15).
Lucent recommends direct or indirect Ethernet as the primary connection method from
the NMS to the switch.
Figure 4-6 through Figure 4-8 show the types of NMS-connection methods.

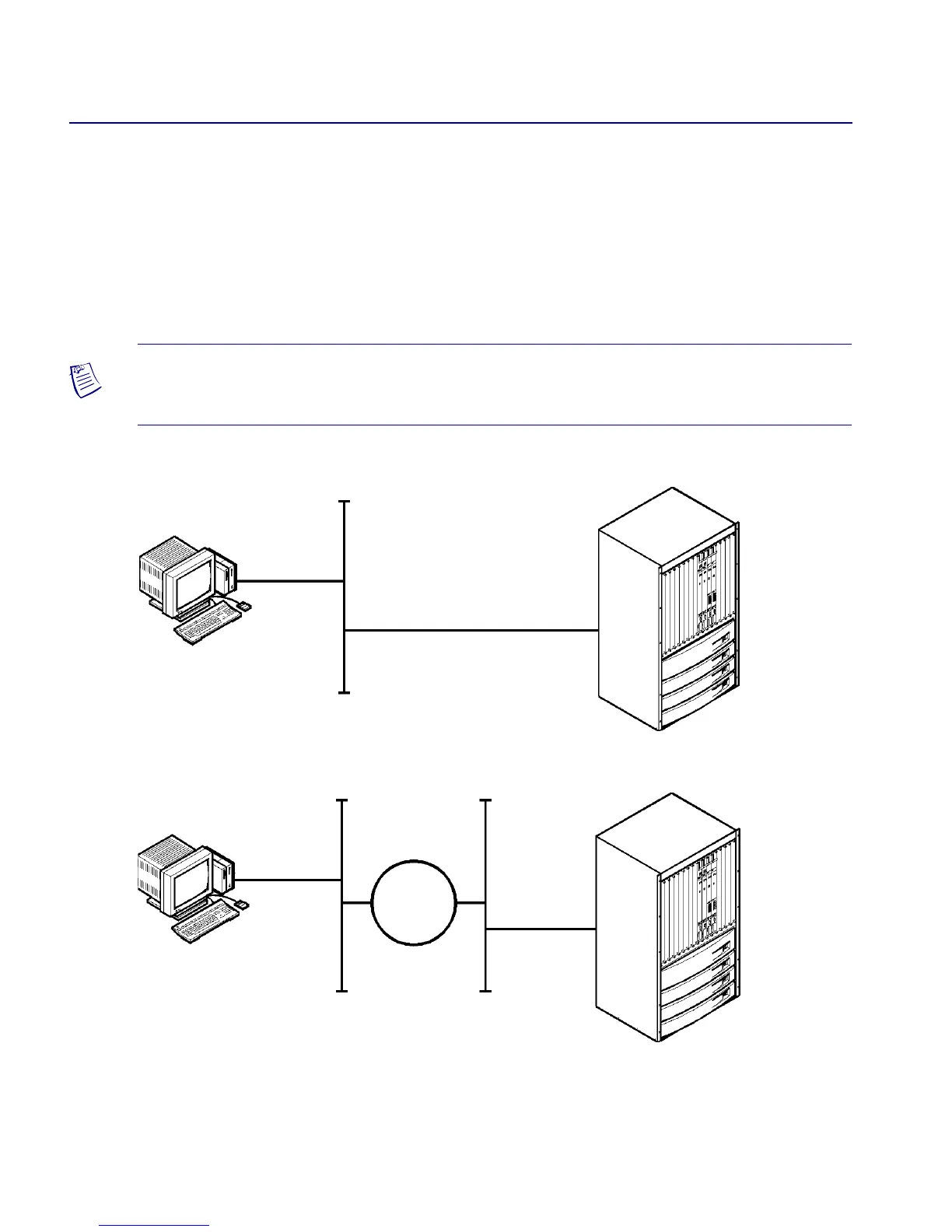

Figure 4-6. Direct Ethernet Method
Figure 4-7. Indirect Ethernet Method
Note – Lucent recommends that you provision dial-up or some other access to each
switch in the Lucent network as a backup.
NMS
Ethernet
Port
NMS
Ethernet
Port
Router
To Next Page
