Installing the CBX 500 Switch
Setting Up the Switch
Beta Draft Confidential
4-44/5/03 CBX 500 Multiservice WAN Switch Hardware Installation Guide
Installing 19-inch Mid-Mount Brackets

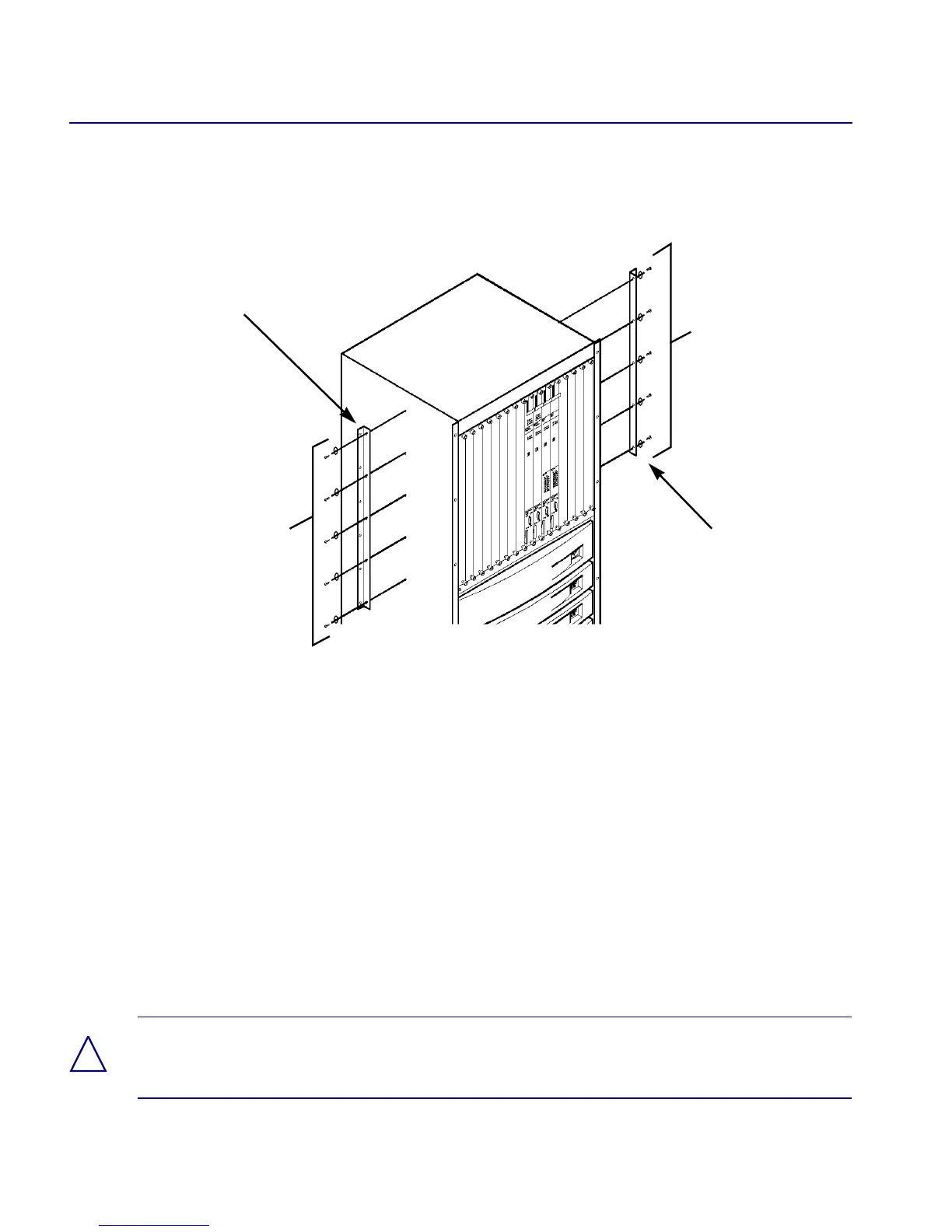

Figure 4-1 shows how to install the 19-inch mid-mount brackets onto the switch.
Figure 4-1. Installing 19-inch Mid-Mount Brackets
To install 19-inch mid-mount brackets onto the switch:
1. Position a mid-mount bracket onto one side of the switch, lining up the five screw
holes on the bracket with the five screw holes on the side of the switch. Figure 4-1
shows the correct orientation of the brackets.
2. Using a #2 Phillips-head screwdriver, install the five #10-32 x .25 truss-head
screws and #10 external tooth lock washers that came with the brackets through
the mid-mount bracket holes into the switch. Use a maximum of 6to8
inch-pounds of torque.
3. Repeat Steps 1 and 2 to install the second mid-mount bracket onto the other side
of the switch.
5 #10 Ext. Tooth
Lock Washers
5Screws
(#10-32 x .25)
Mid-Mount Bracket
(Note Orientation)
Mid-Mount Bracket
(Note Orientation)
5#10Ext.Tooth
Lock Washers
5Screws
(#10-32 x .25)
!
Caution – Failure to use the proper screws may damage the switch.
