Lucent Technologies DDM-2000 OC-3 User Manual

363-206-285
Applications
2-18 Issue 3 June 2001
Each OC-3 node provisions the same STS-1/VT time slots as the other OC-3
nodes on the same ring. With 0x1 application, the host OC-3 or OC-12 ring
passes the content of the STS-1/VT time slots to the hosted OC-3 shelf(ves)
without terminating them or performing protection switching on them. Ring path
switching is not done on the DDM-2000 OC-12 ring; rather STS-1/VT level path
switching is done elsewhere in the network.

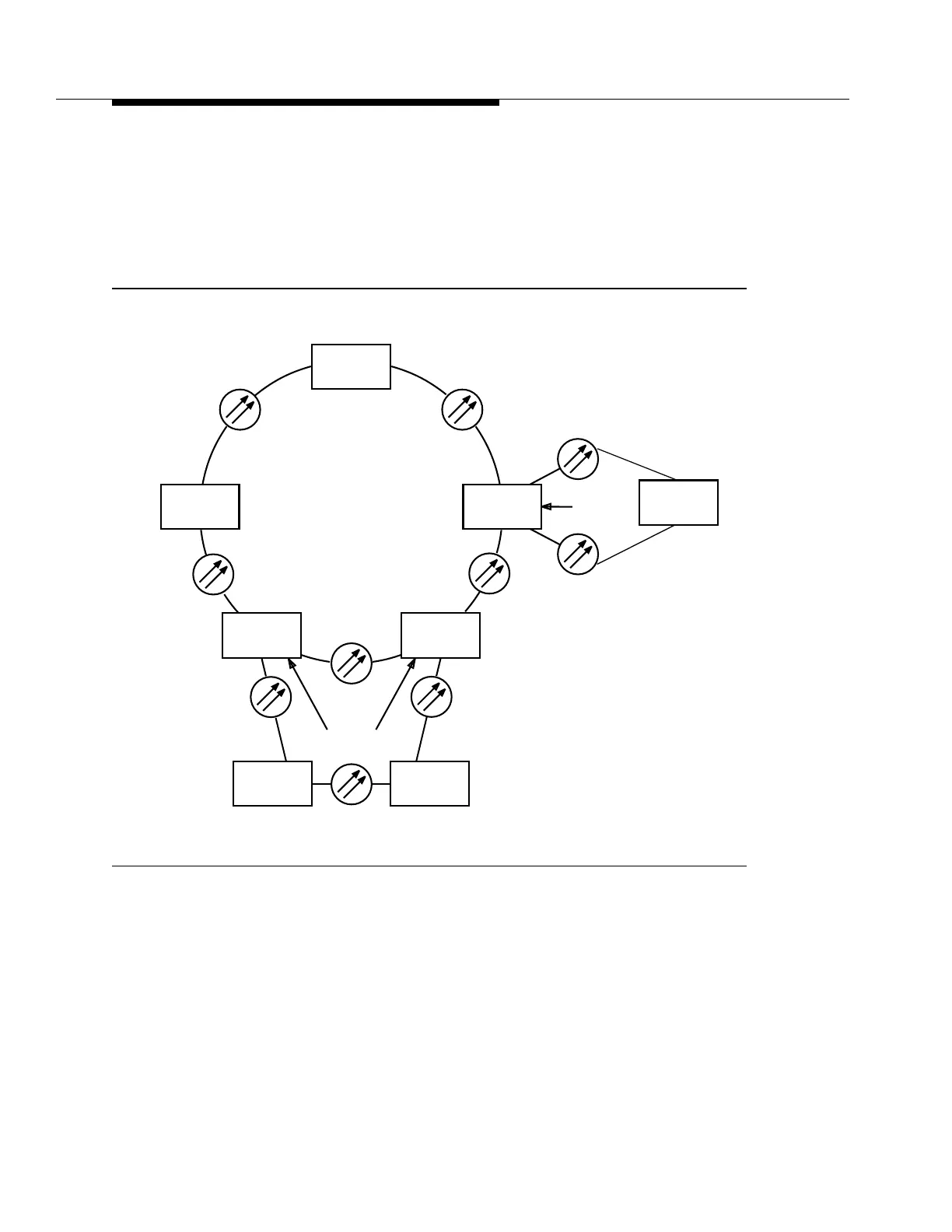

Figure 2-11. OC-12 Ring Transport (STS-1/VT1.5 0x1) With FiberReach OC-3 Rings
OC-1 Path Switched Ring 2
DDM-2000 FiberReach Multiplexers can be configured in an OC-1 path switched
ring. The path switched OC-1 ring is best suited for DS1, DS0, and broadband
DDM-2000
OC-3/12
STS-1 Path Switched
OC-12 Ring
DDM-2000
OC-3/12
DDM-2000
OC-3/12
DDM-2000
OC-3/12
DDM-2000
OC-3/12
DDM-2000
FiberReach
OC-3
DDM-2000
FiberReach
OC-3
DDM-2000
FiberReach
OC-3
Single
Homed
OC-3 Ring
Dual
Homed
OC-3 Ring
