363-206-285
Applications
Issue 3 June 2001
2-67

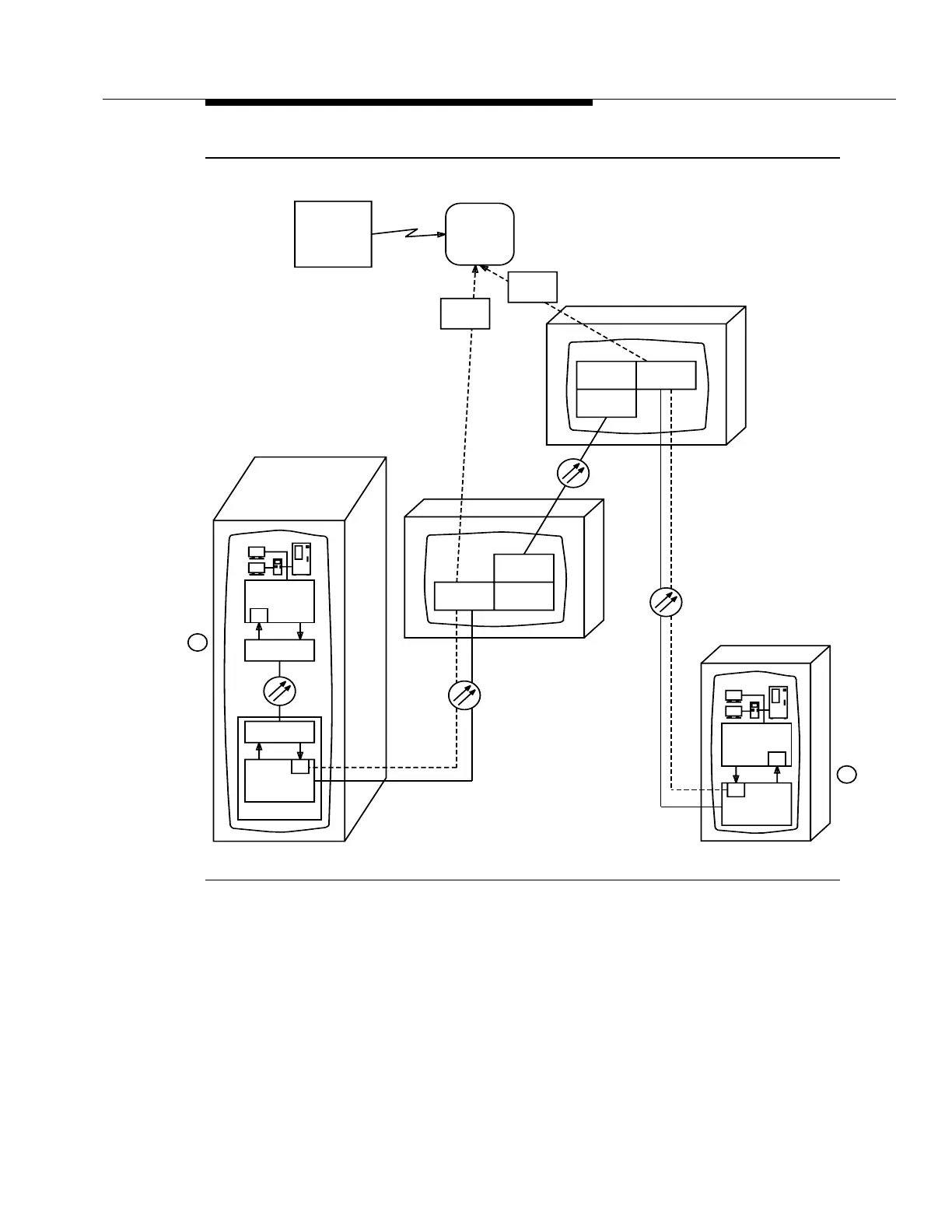

Figure 2-45. DS1 Path Performance Monitoring for Tariff Verification
End-to-End
DS1 Path
Performance
Data at OS
Center
OS
Z to A
PM
A to Z
PM
DACS IV-
2000
DDM-2000
OC-3
FT-2000
CO B
DACS IV-
2000
DDM-2000
OC-3
FT-2000
CO A
OC-48
LAN Bridge/
Router
M
DS1s
M
DDM-2000
OC-3
Remote Office
LAN Bridge/
Router
M
DS1s
M
DDM-2000
OC-3
DDM-Plus
DDM-Plus
DS1s
BRT-2000
Company HQ
OC-3
OC-3
Z
A
