363-206-285 Detailed Level Procedure: DLP-513
Issue 2, February 2000 Page 19 of 20
DDM-2000 OC-3 MULTIPLEXER
BBF9/BBF10 IMA LAN
34.
NOTE:
The only hardware option settings on IMA LAN circuit packs are the
power settings (located on the bottom circuit board) shown in Figure 10.
If there are other jumpers on the circuit pack similar to the power jumpers,
they are factory test points and should be ignored.
Refer to Table O and Figure 10 and set power jumpers.

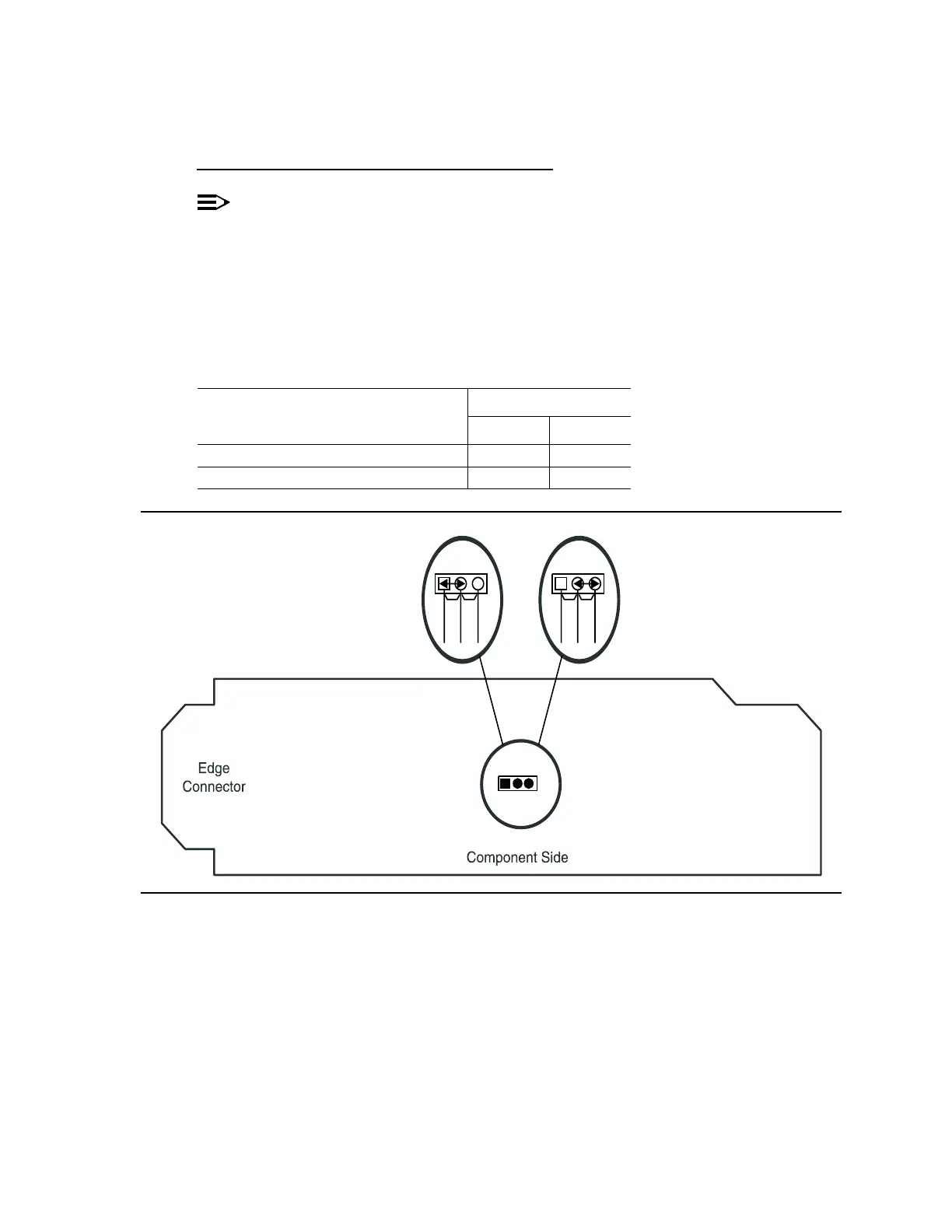

Figure 10 – IMA LAN Power Settings
Table O – IMA LAN Power Settings
Corresponding FUNCTION UNITS IMA Power Setting
MXRVO Circuit Pack +5 V –48 V
BBG2 MXRVO X
BBG2B MXRVO X
-48V
-48V
-48V+5V
+5V
+5V
