BBG4/BBG4B DS3 Hardware Settings 7
The location of the BBG4/BBG4B DS3 circuit pack LBO jumpers is shown in
Figure 7-27. The BBG4/BBG4B DS3 LBO settings are shown in the table.
BBG4/BBG4B DS3 LBO Settings

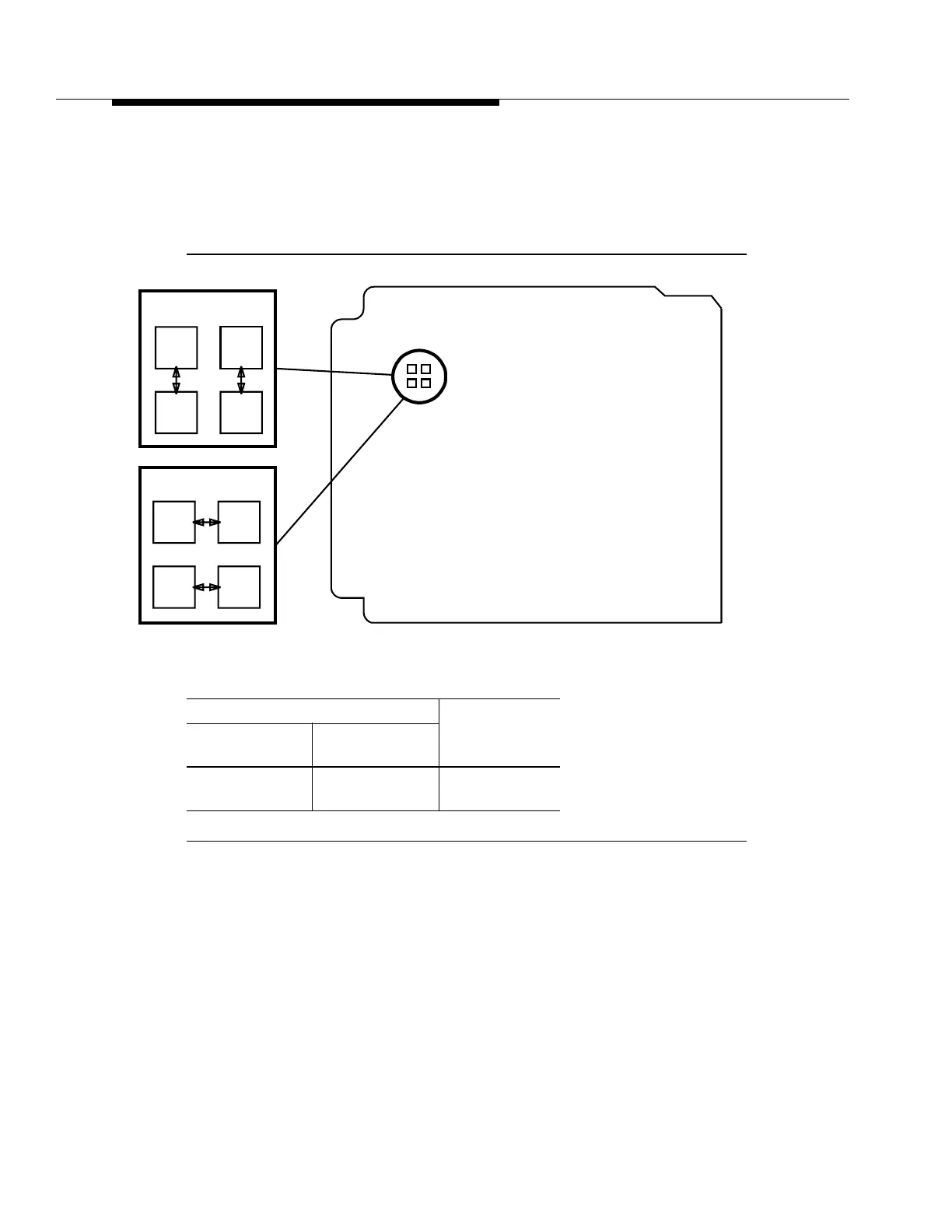

Figure 7-27. BBG4/BBG4B DS3 Line Build-Out (LBO) Jumpers
Cable Length (Ft)
735A
Cable
734D
Cable
LBO Setting
0to125
>125 to 250
0to225
>225 to 450
LBO IN
LBO OUT
LBO IN
Edge
Connector
LBO OUT
Component Side
