Lucent Technologies DDM-2000 OC-3 User Manual

363-206-285
Applications
Issue 3 June 2001
2-43

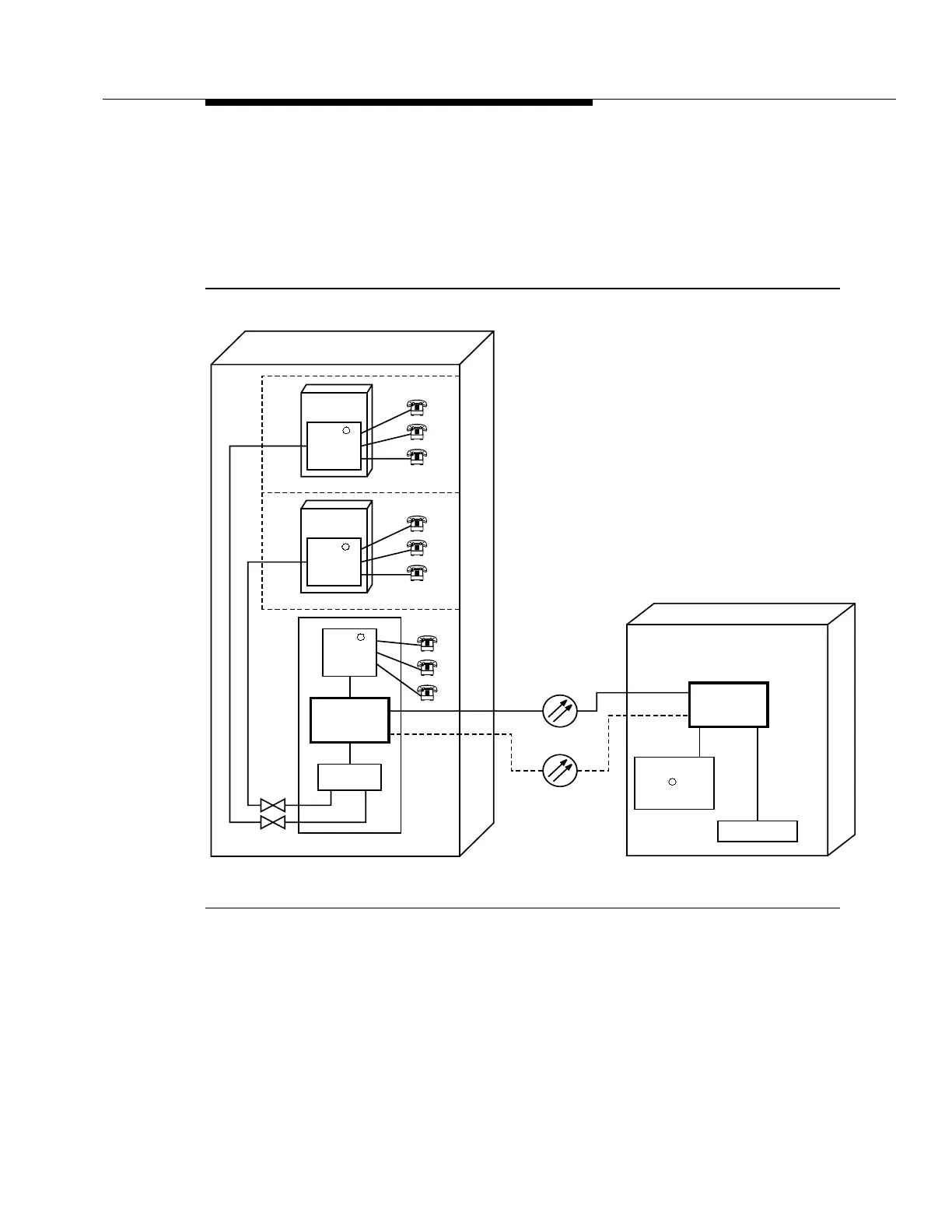

Figure 2-28 and Figure 2-29 show two typical applications in a metropolitan high-
rise, where an OC-3 point-to-point folded ring topology network runs from the CO
to the customer's building. Figure 2-28 shows an initial application with
preexisting copper wiring in the building risers. From a basement cabinet, the
DDM-2000 OC-3 Multiplexer and DDM-Plus or DDM-2000 FiberReach provide
direct DS1 service over this wiring to cabinets on the floors above.
Figure 2-28. Metro Application — Copper in the Riser
OC-3
OC-3
Protection
Route
DDM-Plus
Series 5
BRT-2000
DS1
SLC
RT
DS1
DDM-2000
OC-3
Basement
Series 5
BRT
SLC
Series 5
RT
BRT
SLC
RT
METALLIC
CUSTOMER LOCATION
T1
T1
R
R
R
DDM-2000
OC-3
Central Office
5ESS
R
DS1/EC-1
Switch
DACS IV-2000
DS1
