363-206-285
Transmission and Synchronization Interfaces
Issue 3 June 2001
5-31

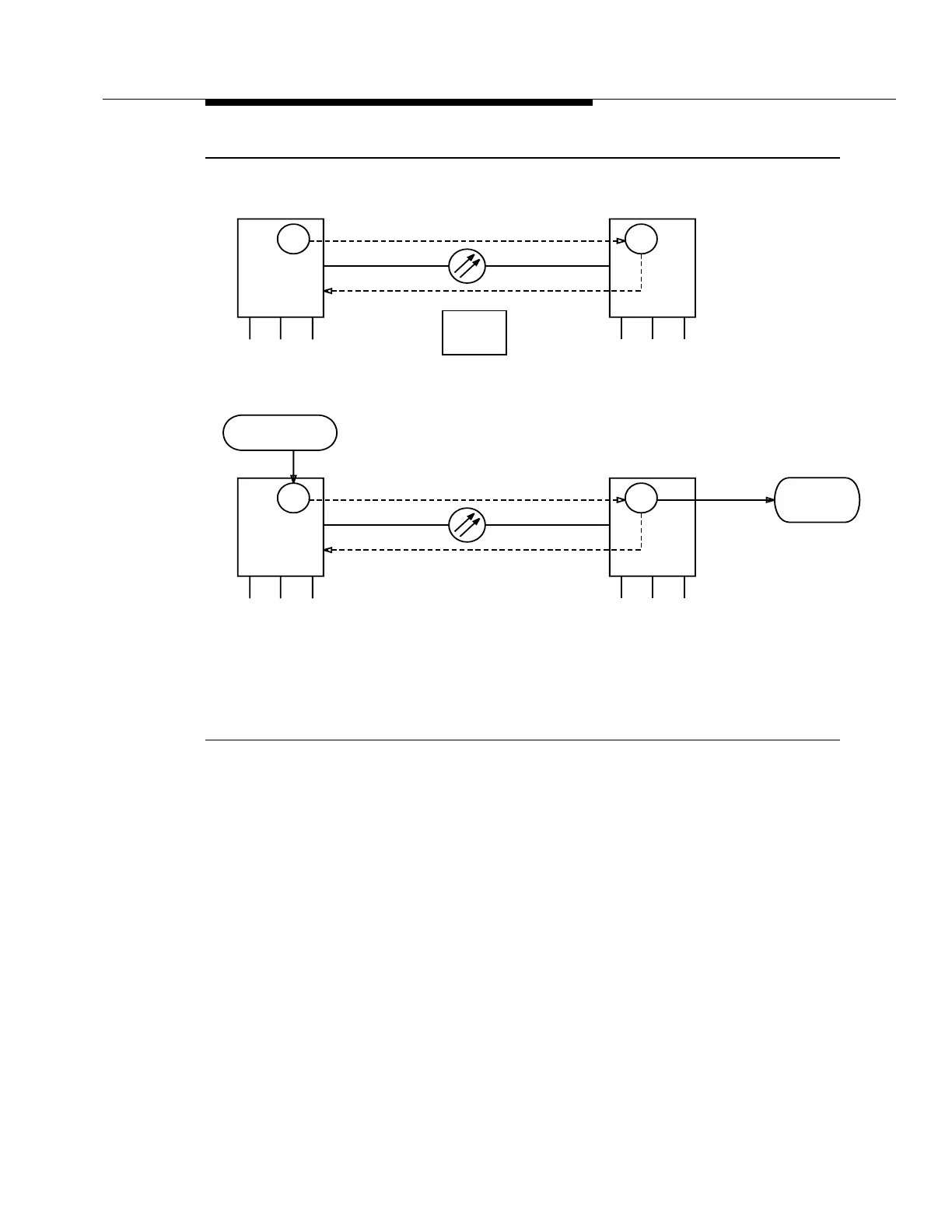

Figure 5-19. Synchronization Timing Configurations (Sheet 1 of 2)
Free-Running
DDM-2000
DDM-2000
Loop-Timed
(a) Free-Running/Loop-Timing Configuration
CO Small CO or RT
DDM-2000
DDM-2000
Loop-Timed
CO
Clock Source
(Stratum 3 or better)
RT
DS1 Timing
Output
BITS Clock
(b) External Timing/Loop-Timing Configuration
(Optional
BBF2B)
DS1/DS3/EC-1DS1/DS3/EC-1
DS1/DS3/EC-1 DS1/DS3/EC-1
DS1
tpa 820926/01
OC-N
OC-N
TG TG
TGTG
