Lucent Technologies DDM-2000 OC-3 User Manual

363-206-285
Applications
2-44 Issue 3 June 2001

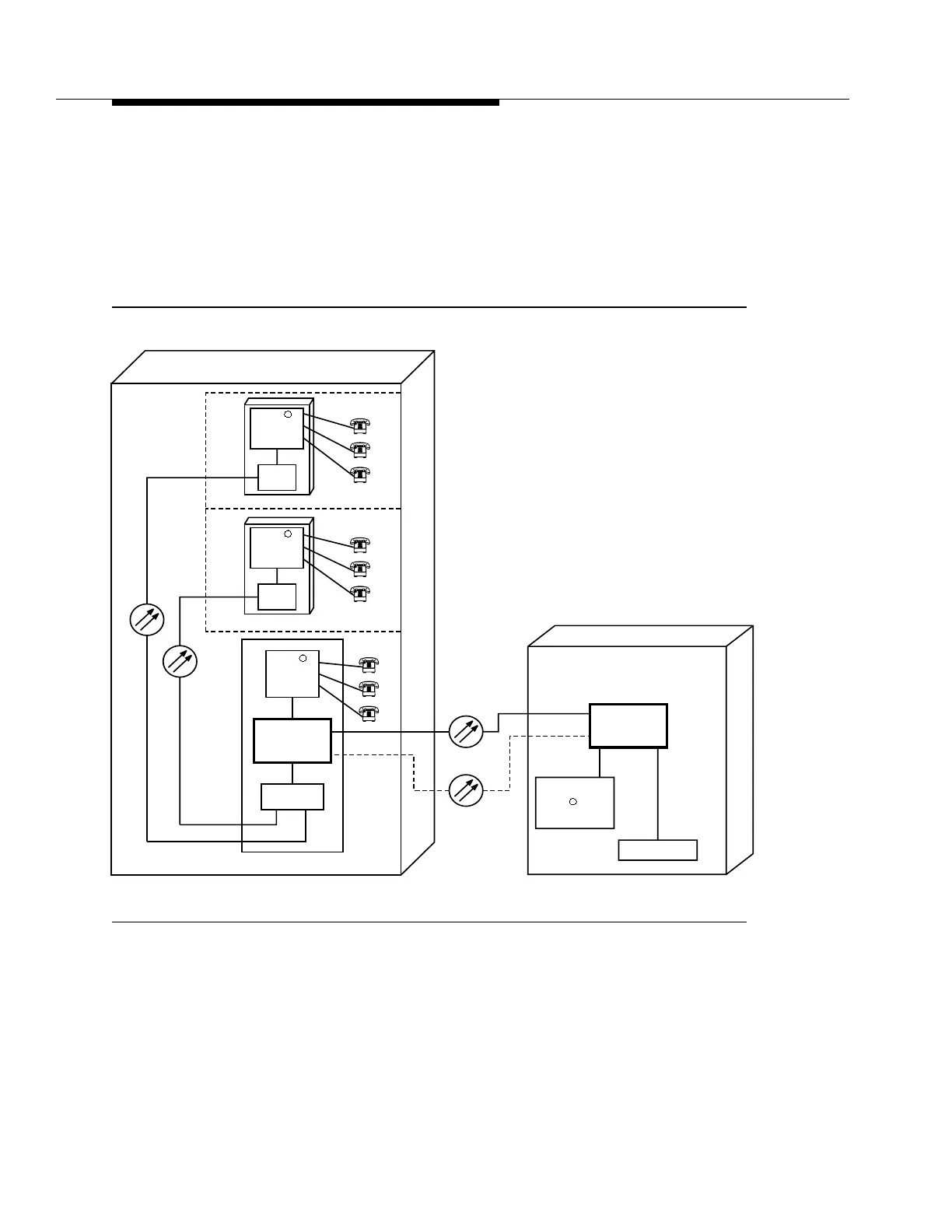

Figure 2-29 shows a larger application with fiber in the riser, using the optical
extension capability of DDM-Plus or DDM-2000 FiberReach, to extend optical
bandwidth to individual floors. Satellite locations contain the DDM-Plus distant
terminal (DT) to convert the optical extension interface into four standard DS1
signals. Self-healing needs can be met with cabled ring or diverse routing. The
OC-3 bandwidth to customer locations also positions the network to deliver higher
bandwidth services, such as video.
Figure 2-29. Metro Application — Fiber in the Riser
BRT
Basement
Series 5
SLC
RT
OC-3
DS1
OC-3
Protection
Route
DDM-Plus
BRT-2000
DS1
SLC
Series 5
RT
CUSTOMER LOCATION
DDM-
Plus
DS1
BRT
SLC
Series 5
RT
DDM-
Plus
DS1
FIBER
DDM-2000
OC-3
R
R
R
DDM-2000
OC-3
Central Office
5ESS
R
DS1/EC-1
Switch
DACS IV-2000
DS1
