NTP-029: Circuit Order 363-206-285
Page 10 of 22 Issue 2, February 2000
DDM-2000 OC-3 MULTIPLEXER
DO ITEMS BELOW IN ORDER LISTED. . . . . FOR DETAILS, GO TO

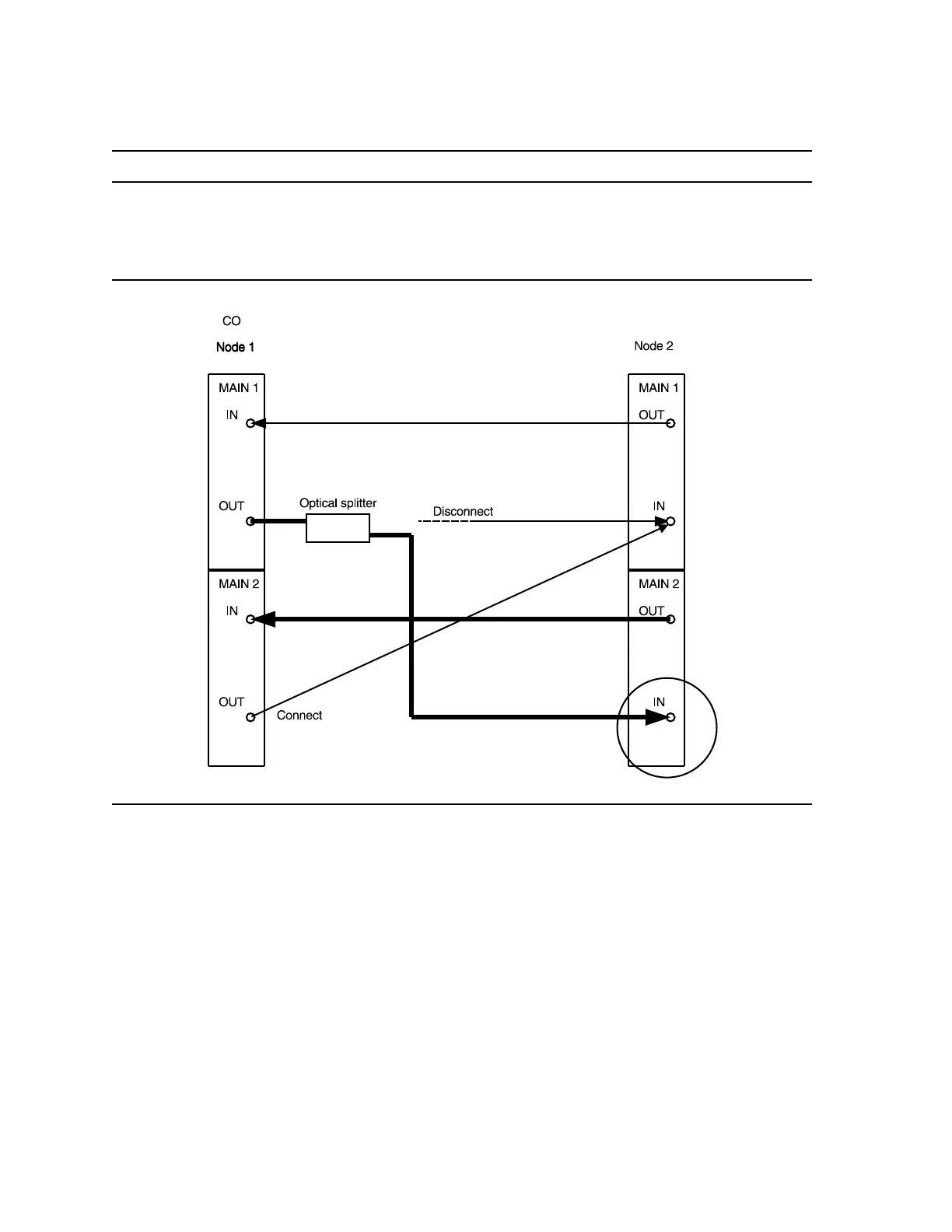

16. Disconnect the fiber from the optical splitter output going to Node
2 MAIN 1 IN. Connect the fiber from Node 2 MAIN 1 IN to Node 1
MAIN 2(P) OUT. (See Figure 6.)
Figure 6 – DDM-2000 OC-3 Point-to-Point to Ring Upgrade
To Next Page
