NTP-039: Circuit Order 363-206-285
Page 14 of 32 Issue 2, February 2000
DDM-2000 OC-3 MULTIPLEXER
DO ITEMS BELOW IN ORDER LISTED. . . . . FOR DETAILS, GO TO
19. At Node 1, remove optical splitter from MAIN 1 OUT. Connect
optical fiber from Node 1 MAIN 1 OUT to Node 2 MAIN 2(P) IN.
(See Figure 9.)

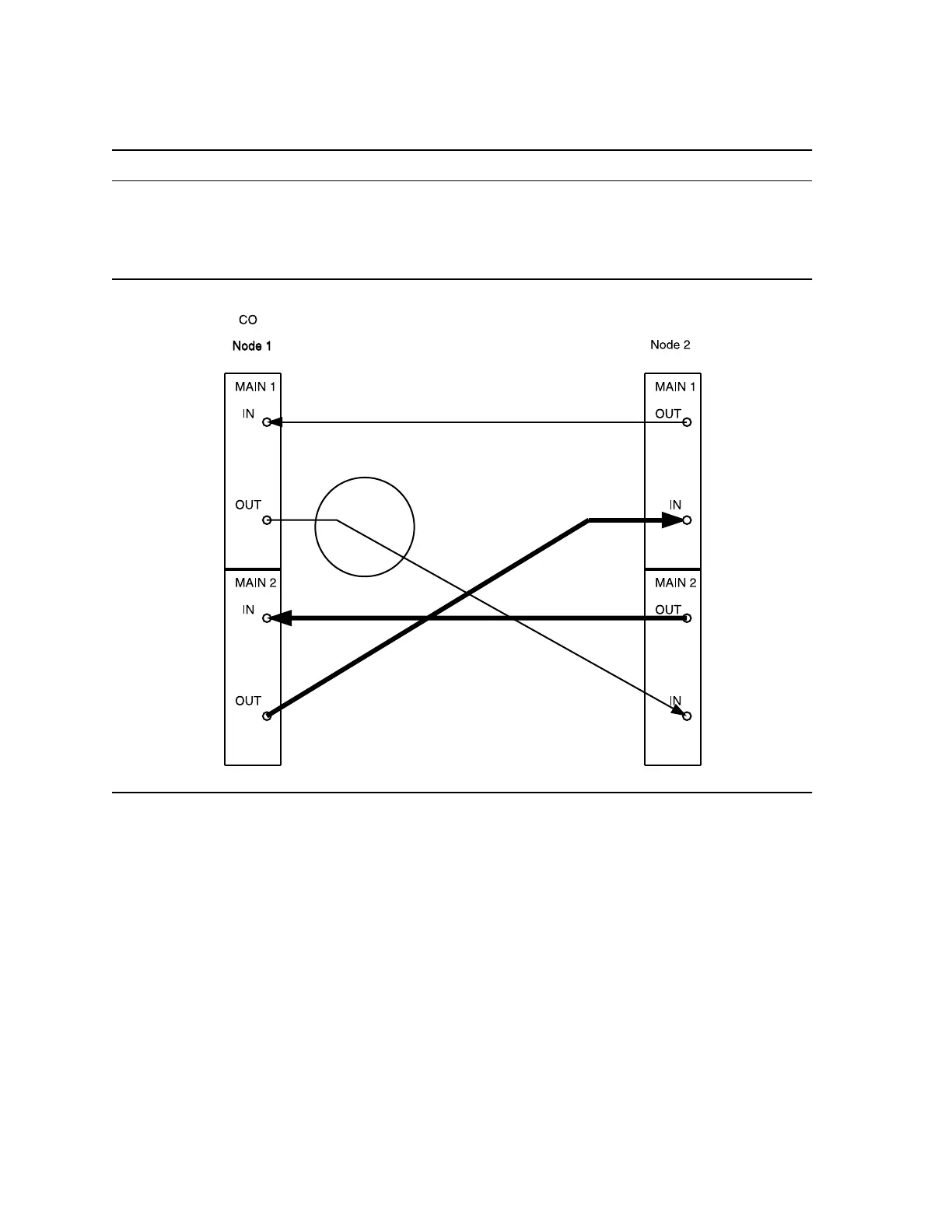

Figure 9 – DDM-2000 OC-3 Drop or Add/Drop Network to Ring Upgrade
To Next Page
