363-206-285

Shelf Descriptions and Configurations

Issue 3 June 2001

3-25

DDM-2000 Fan Shelf 3

The DDM-2000 Fan Shelf (Figure 3-16) provides forced convection cooling to

DDM-2000 OC-3 shelves in uncontrolled environments.

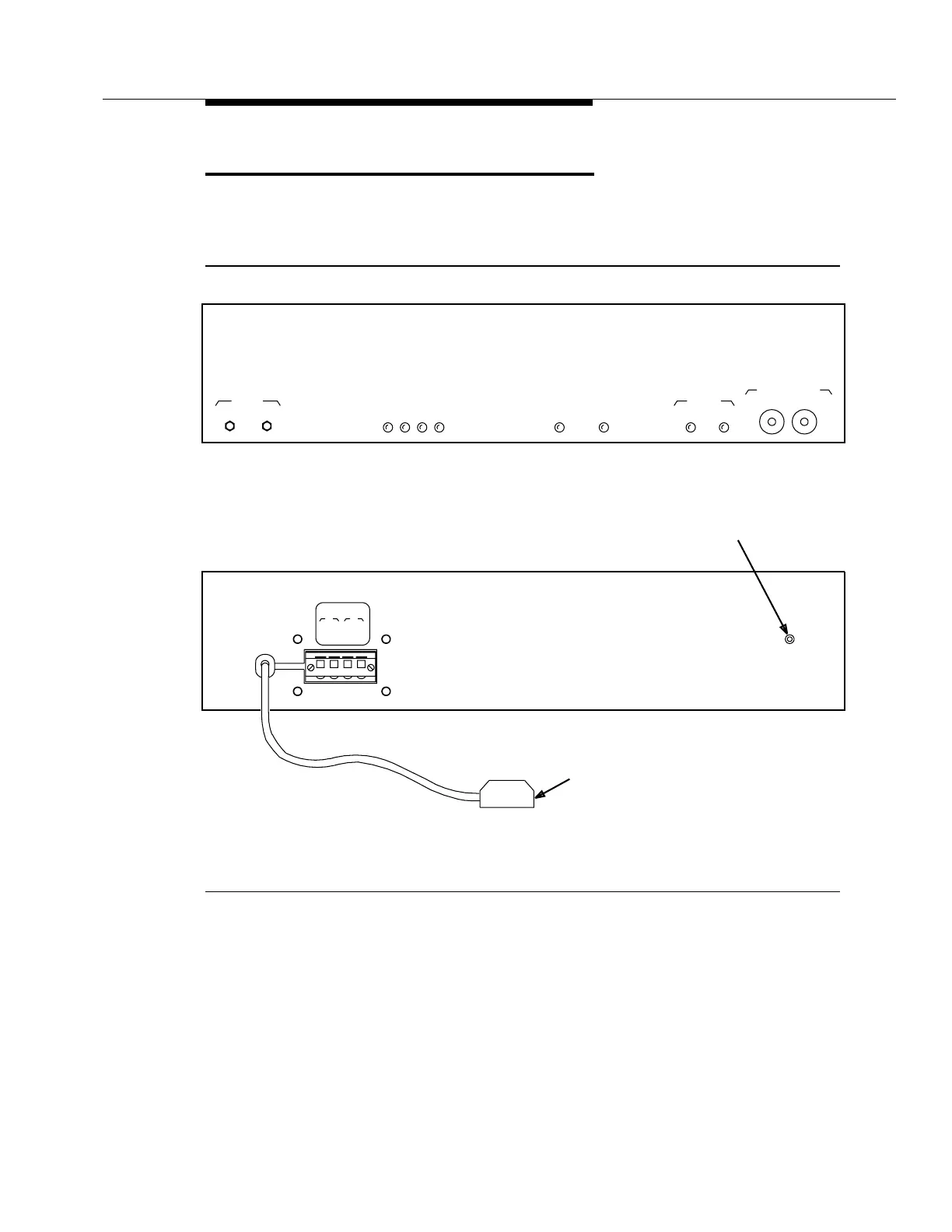

Figure 3-16. DDM-2000 Fan Shelf

POWER

Miscellaneous

Alarm Cable

Ground

ALARM

RESET

TEST

FAN FAULT

21 FAULT

CONTROL

FAULT

FILTER

REPLACE

POWER

POWER RESET

Rear View

Front View
