363-206-285 Detailed Level Procedure: DLP-505
Issue 2, February 2000 Page 4 of 8
DDM-2000 OC-3 MULTIPLEXER

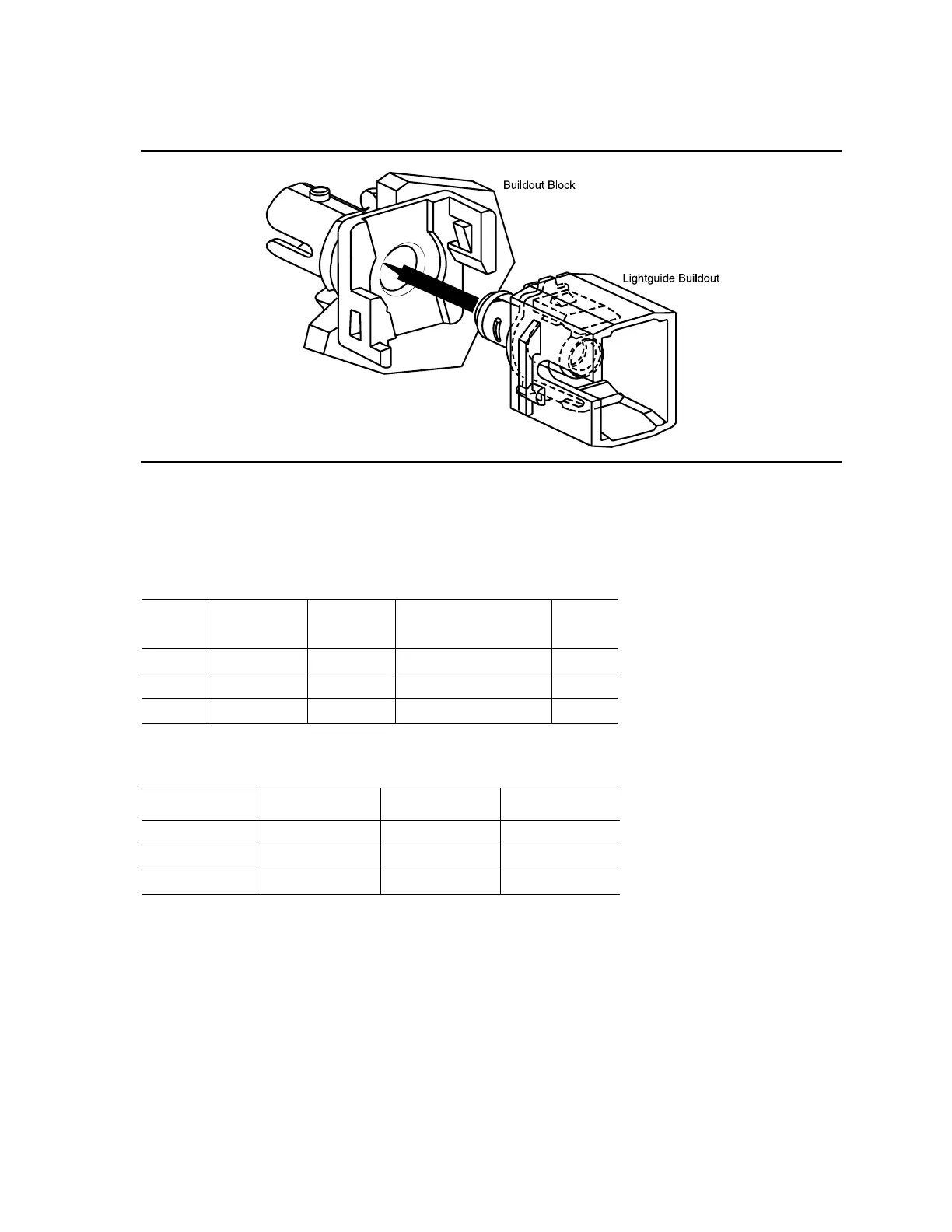

Figure 3 – SC-Type Universal Buildout
Table A – Universal 0 dB Lightguide Buildouts
Code Comcode
Connector
Type Cable Connection
Label
Color
A3060 106708951 SC SM-SM & MM-MM None
A3070 106795354
ST
SM-SM & MM-MM None
A3080 106795404 FC/PC SM-SM & MM-MM None
Table B – Single-Mode Lightguide Jumpers
Code Comcode Length (Feet) Connectors
FS1EP-EP-2 107149494 2 ST-ST
LS1SC-SC-2 106908247 2 SC-SC
LS1FP-FP-10 106593825 10 FCPC-FCPC
