OC-1 Ring Function Unit Pass-Through 5
The OC-1 ring function unit pass-through is identical in functionality to the pass-
through supported in the main slots. A function unit pass-through connection
consumes no bandwidth on the ring supported by the OLIUs in the main slots.
Figure 5-14 shows an example of this configuration.

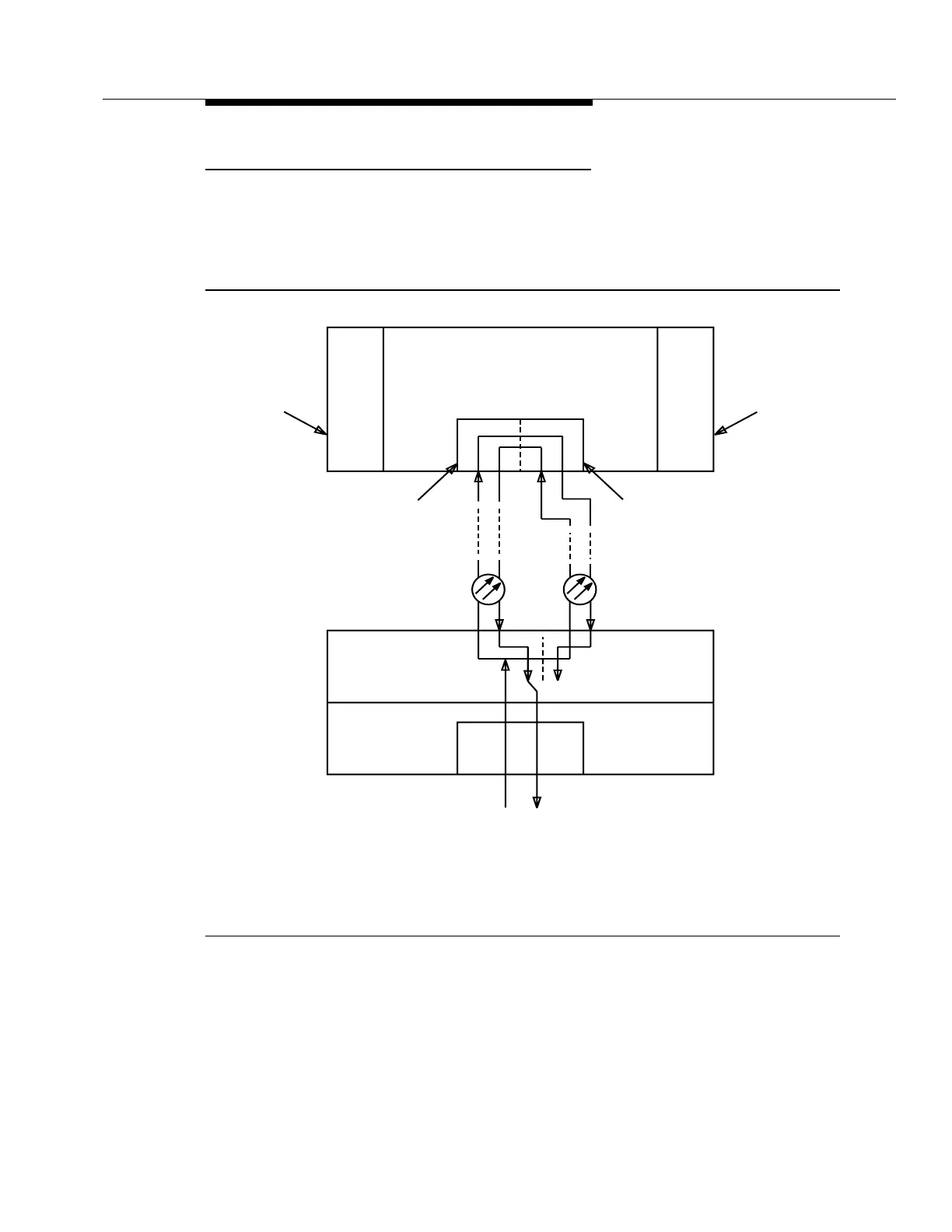

Figure 5-14. OC-1 Ring Function Unit Pass-Through
O
L
I
U
O
L
I
U
Main-1
Main-2
FN ( )-1 FN ( )-2
DS1
DDM-2000
Fiber Reach
Shelf
OC-1
OC-1
DDM-2000
OC-3 Shelf
26-type
OLIU
26-type
OLIU
* Main -1
* Main -2
* Main OLIUs required for Function-Unit Pass-through connections
tpa 849776/01
26G2-U
or
27G2-U
OLIUs
