DLP-518: Detailed Level Procedure 363-206-285
Page 1 of 2 Issue 2, February 2000
DDM-2000 OC-3 MULTIPLEXER
Install IMA LAN Circuit Packs
1.
!
CAUTION:
Take care to avoid damaging the LEDs that protrude through the opening
in the faceplate of the
IMA
LAN circuit pack.
NOTE:
The only hardware option settings on IMA LAN circuit packs are the
power settings (located on the bottom circuit board) shown in Figure 1. If
there are other jumpers on the circuit pack similar to the power jumpers,
they are factory test points and should be ignored.
Refer to Figure 1 and Table A and set power jumpers.

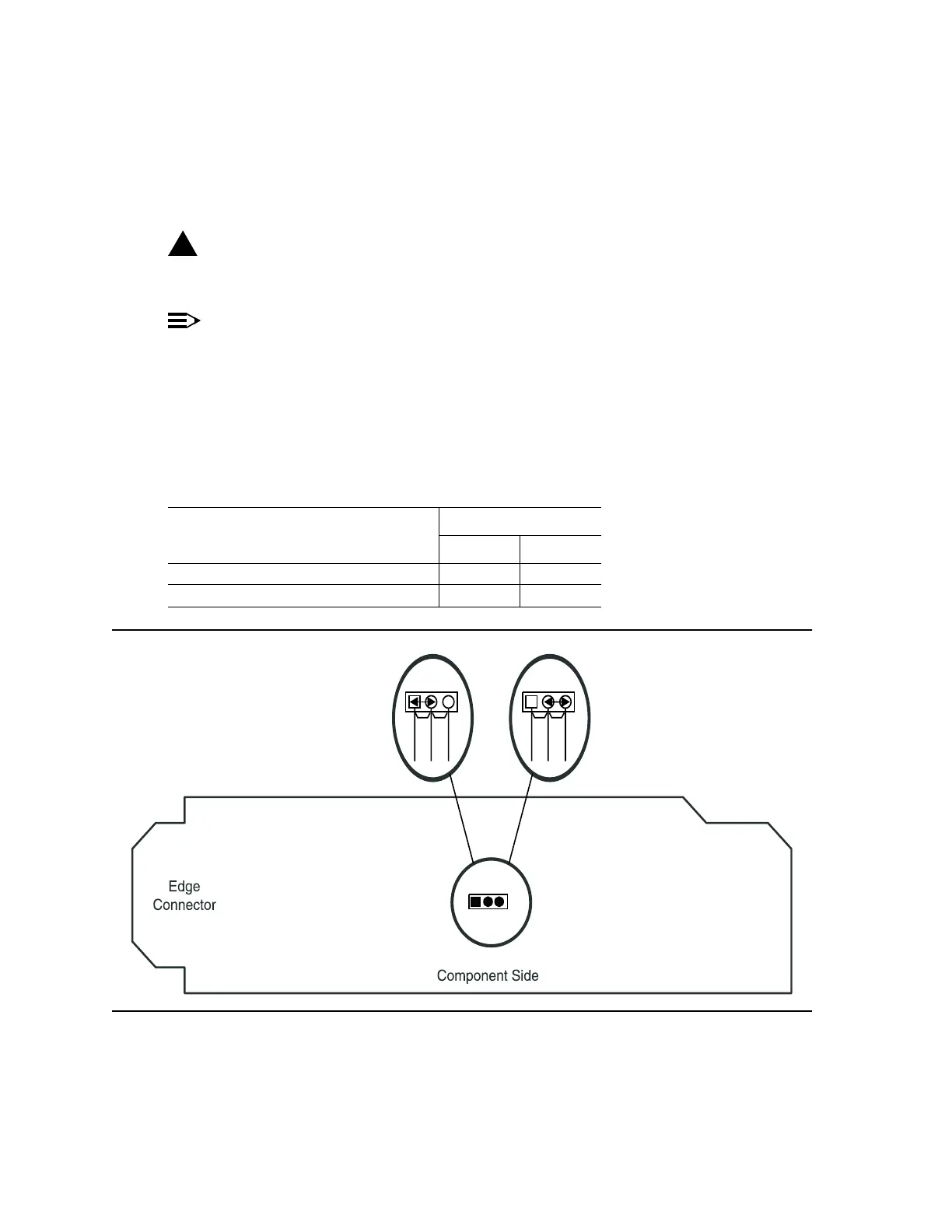

Figure 1 – IMA LAN Power Settings
Table A – IMA LAN Power Settings
Corresponding FUNCTION UNITS IMA Power Setting
MXRVOCircuitPack +5V –48V
BBG2 MXRVO X
BBG2B MXRVO X
-48V
-48V
-48V+5V
+5V
+5V
To Next Page
