Lucent Technologies DDM-2000 OC-3 - Page 2349

DLP-546: Detailed Level Procedure 363-206-285
Page 13 of 20 Issue 2, February 2000
DDM-2000 OC-3 MULTIPLEXER

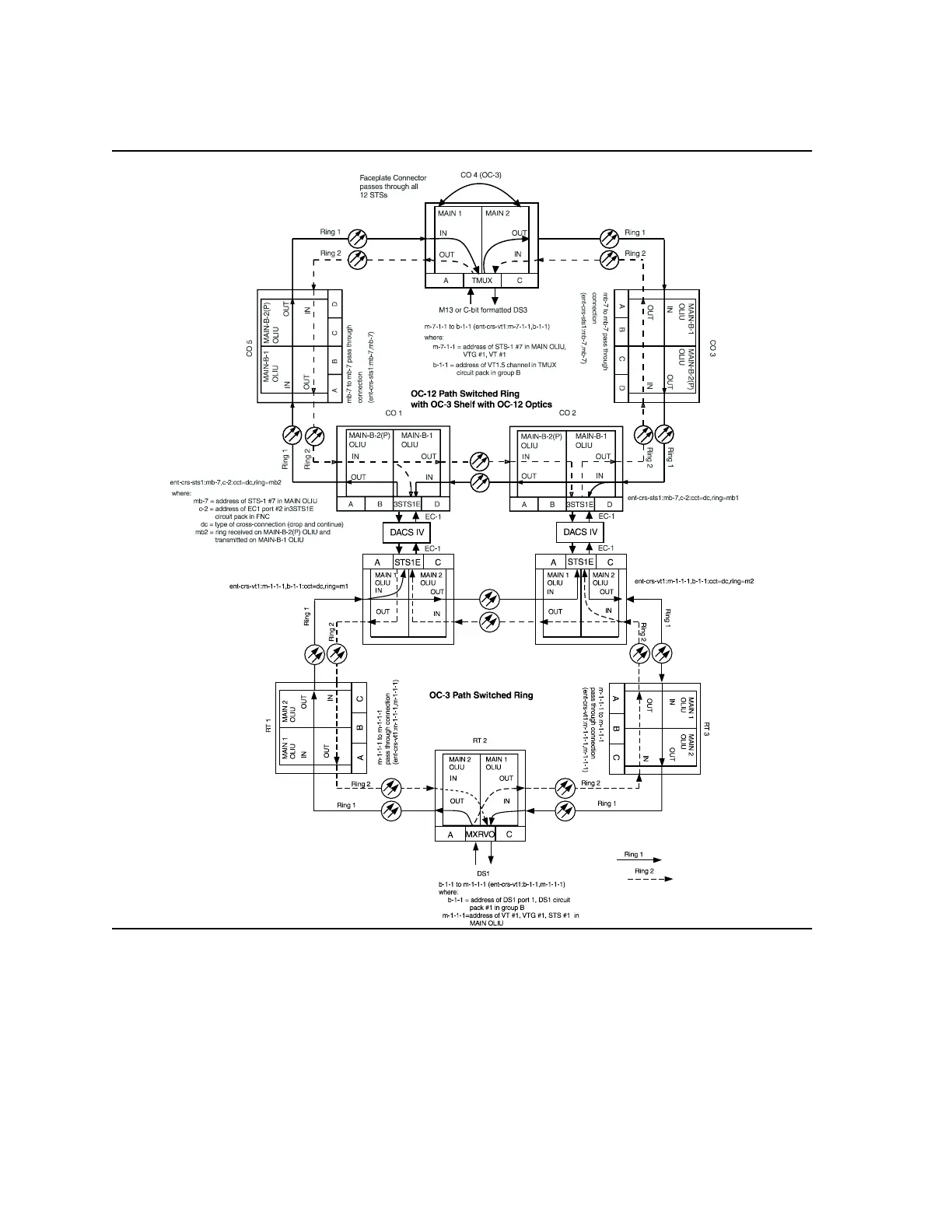

Figure 10 – Path Protected Ring OC-3 Network (DS1 to TMUX) with VT1.5
Cross-Connections
24/29-Type
OLIU
24/29-Type
OLIU
