DLP-549: Detailed Level Procedure 363-206-285
Page 1 of 4 Issue 2, February 2000
DDM-2000 OC-3 MULTIPLEXER
Install BBG8/BBG8B SYSCTL
New Shelf
Only BBG9 OHCTL Installed
1.
NOTE:
This procedure is used for installing the SYSCTL in a new shelf for the
first time (initial shelf turnup, only OHCTL installed at this time). For
procedures to replace an in-service SYSCTL,refertoDLP-501.
Set all SYSCTL switch S1 sections S1-1, S1-2, and S1-3 to OFF,tosetthe
product (shelf) type. See Figure 1.
2. Set all SYSCTL switch S2 sections S2-1, S2-2, S2-3, S2-4, S2-5, S2-6, S2-7,
and S2-8 to OFF.

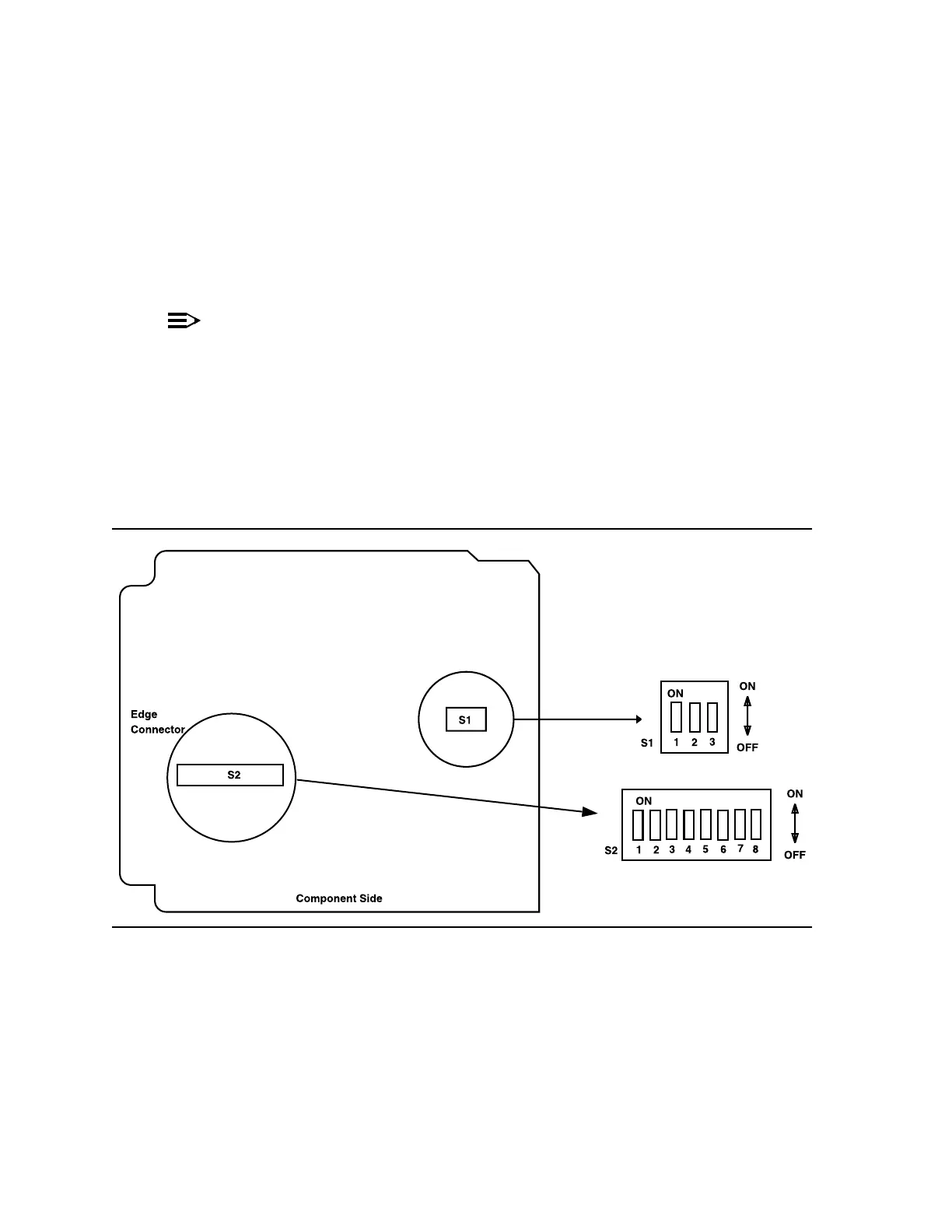

Figure 1 – SYSCTL Option Settings
