Lucent Technologies DDM-2000 OC-3 User Manual

DLP-552: Detailed Level Procedure 363-206-285
Page 3 of 4 Issue 2, February 2000
DDM-2000 OC-3 MULTIPLEXER

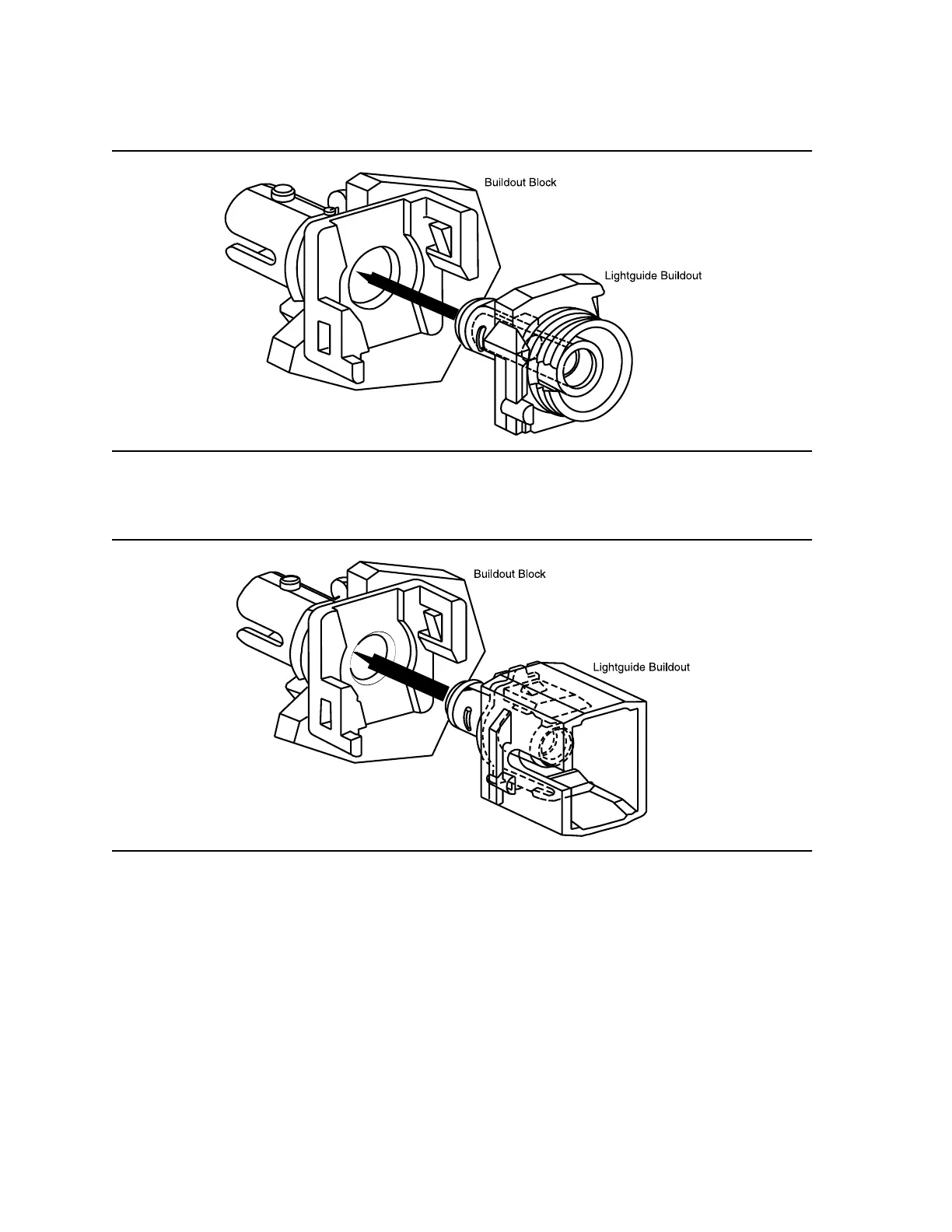

Figure 3 – FC/PC-Type Universal Buildout
Figure 4 – SC-Type Universal Buildout
5. Depress locking tab on the buildout until locking tab is free from the locked
position, rotate the buildout counterclockwise to the stop position, and
separate the buildout block by pulling it toward you. Only the old version of the
ST -type buildout is shown. Refer to the appropriate figure in Step 3 for the
specific buildout type.

Lucent Technologies DDM-2000 OC-3 Specifications

General

Brand	Lucent Technologies
Model	DDM-2000 OC-3
Category	Multiplexer
Language	English
