DLP-557: Detailed Level Procedure 363-206-285
Page 18 of 22 Issue 2, February 2000
DDM-2000 OC-3 MULTIPLEXER

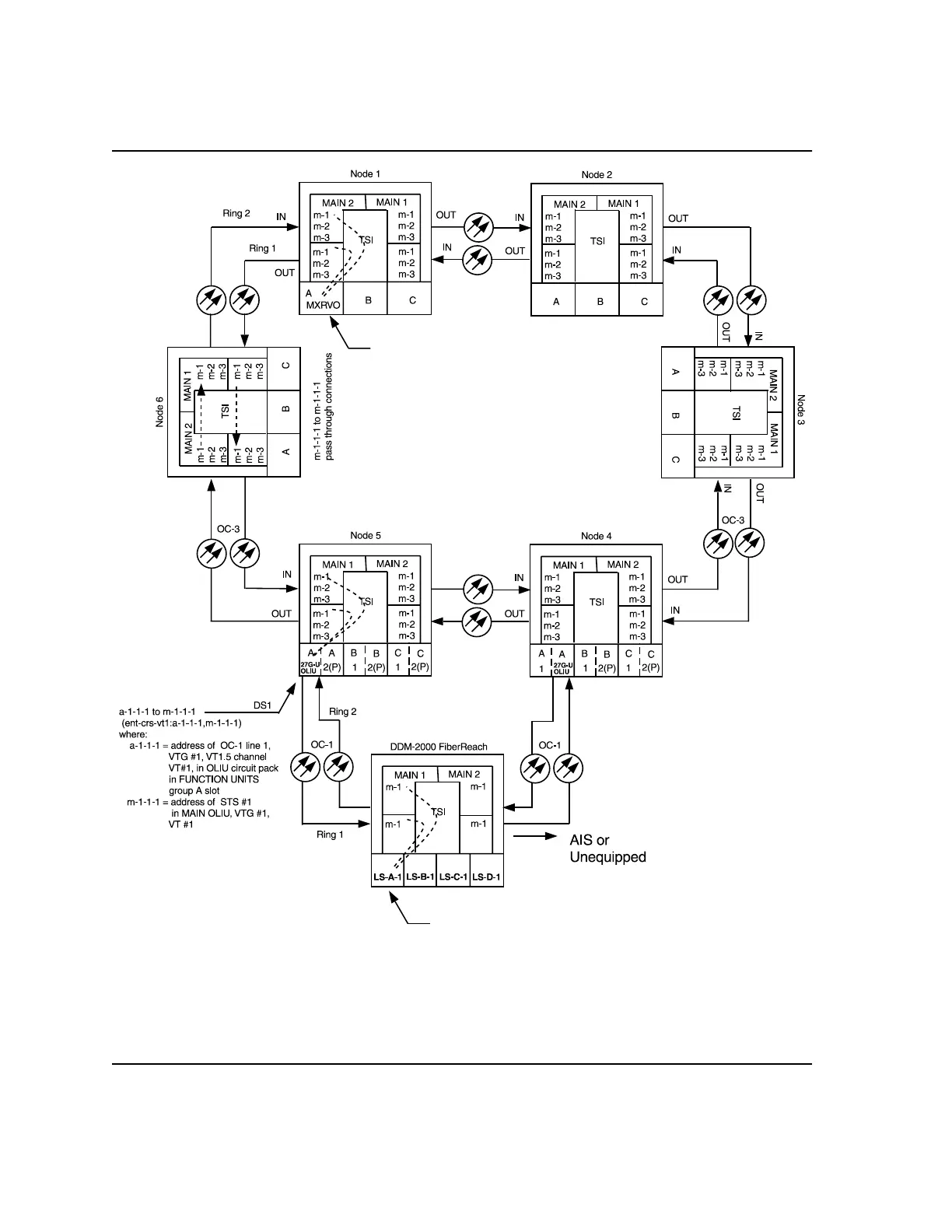

Figure 14 – Example of OC-3 Locked Cross-connections
a-1-1 to m-1-1-1
(ent-crs-vt1:a-1-1,m-1-1-1:cct=locked,ringid=m2)
where:
a-1-1 = address of DS1 circuit pack 1
in LS group A, DS1 port #1
m-1-1-1 = address of STS #1
in MAIN OLIU, VTG #1, VT #1\
cct = locked, locks path to specified ring
ringid = m2, specifies ring (ring 2) from which
channel is received. Data received on
the low speed port is transmitted via
the same OLIU on other ring (ring 1).
a-1-1 to m-1-1-1
(ent-crs-vt1:a-1-1,m-1-1-1:cct=locked,ringid=m1)
where:
a-1-1 = address of DS1 circuit pack 1
in LS group A, DS1 port #1
m-1-1-1 = address of STS #1
in MAIN OLIU, VTG #1, VT #1\
cct = locked, locks path to specified ring
ringid = m1, specifies ring (ring 1) from which
channel is received. Data received on
the low speed port is transmitted via
the same OLIU on other ring (ring 1).
DS1
DS1
