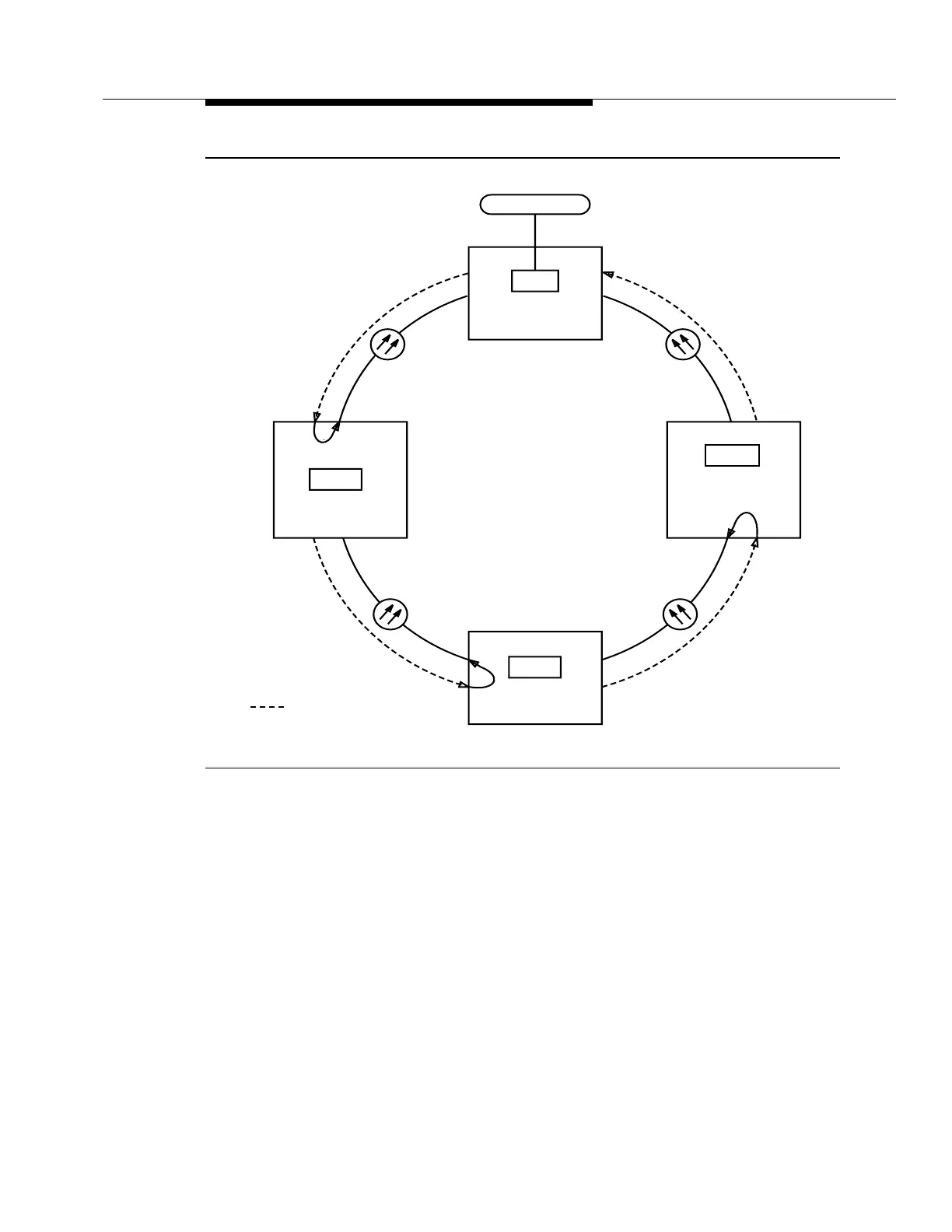

Figure 5-27. OC-3 and OC-1 External/Line Timing
TG
DDM-2000
OC-3
OLIU
DDM-2000
FiberReach
OLIU
DDM-2000
FiberReach
OLIU
DDM-2000
FiberReach
Line-Timed
Line-Timed
Line-Timed
External Clock
active timing direction
