363-206-285
Circuit Pack Descriptions
Issue 3 June 2001
7-51

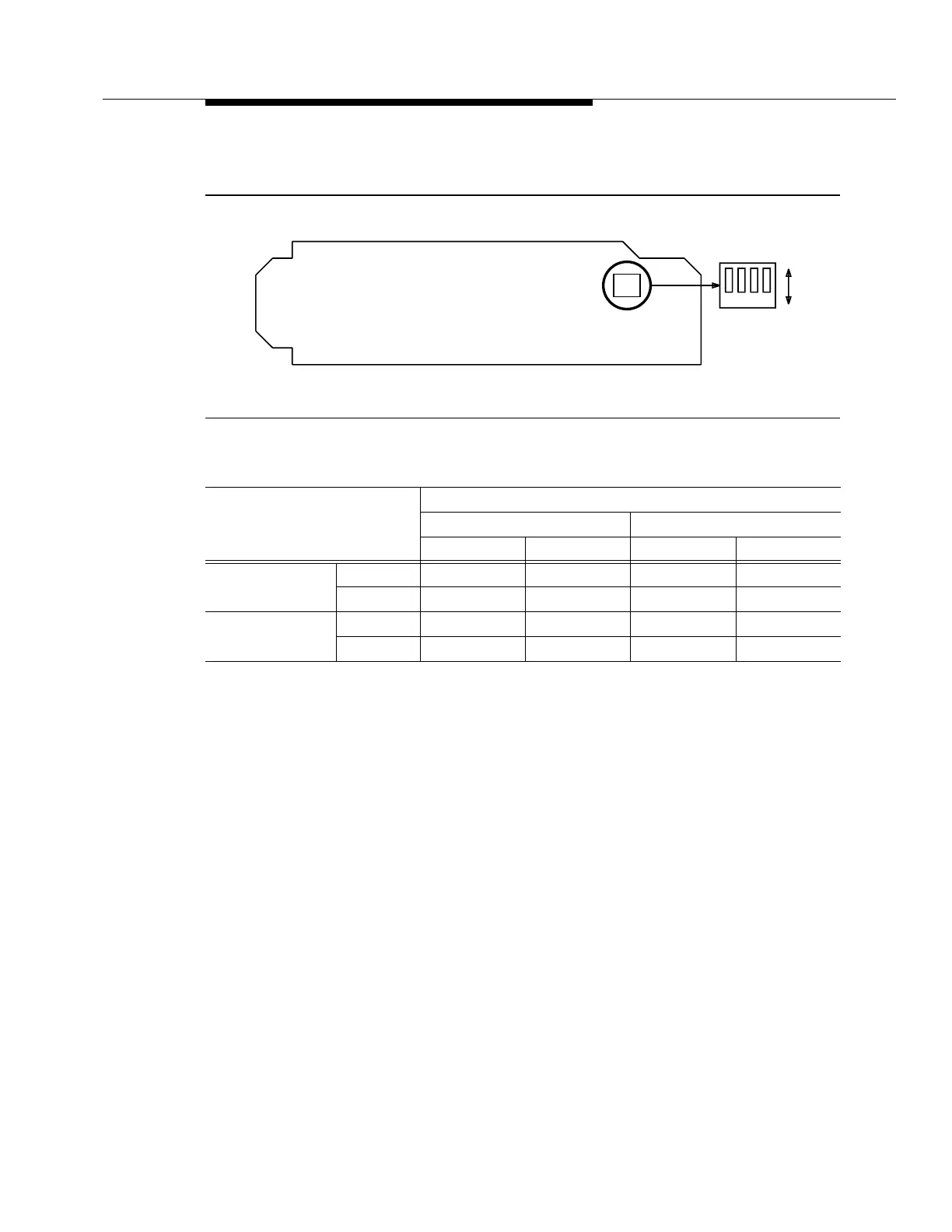

Figure 7-19 shows HDSL options selectable via S1.
Figure 7-19. HDSL DIP Switch Settings
HDSL Options
DIP Switch Settings
HDSL Port #1 HDSL Port #2
S1-1 S1-2 S1-3 S1-4
HDSL Master — OFF — OFF
START-UP Slave — ON — ON
HDSL Local OFF — OFF —
MANAGEMENT Through ON — ON —
1234
ON
OFF
S1
Component Side
Edge
Connector
