M A E D A Crawler Crane 4.9 CAB FRONT WINDOW
5/2020 CC1908S-1 4-47

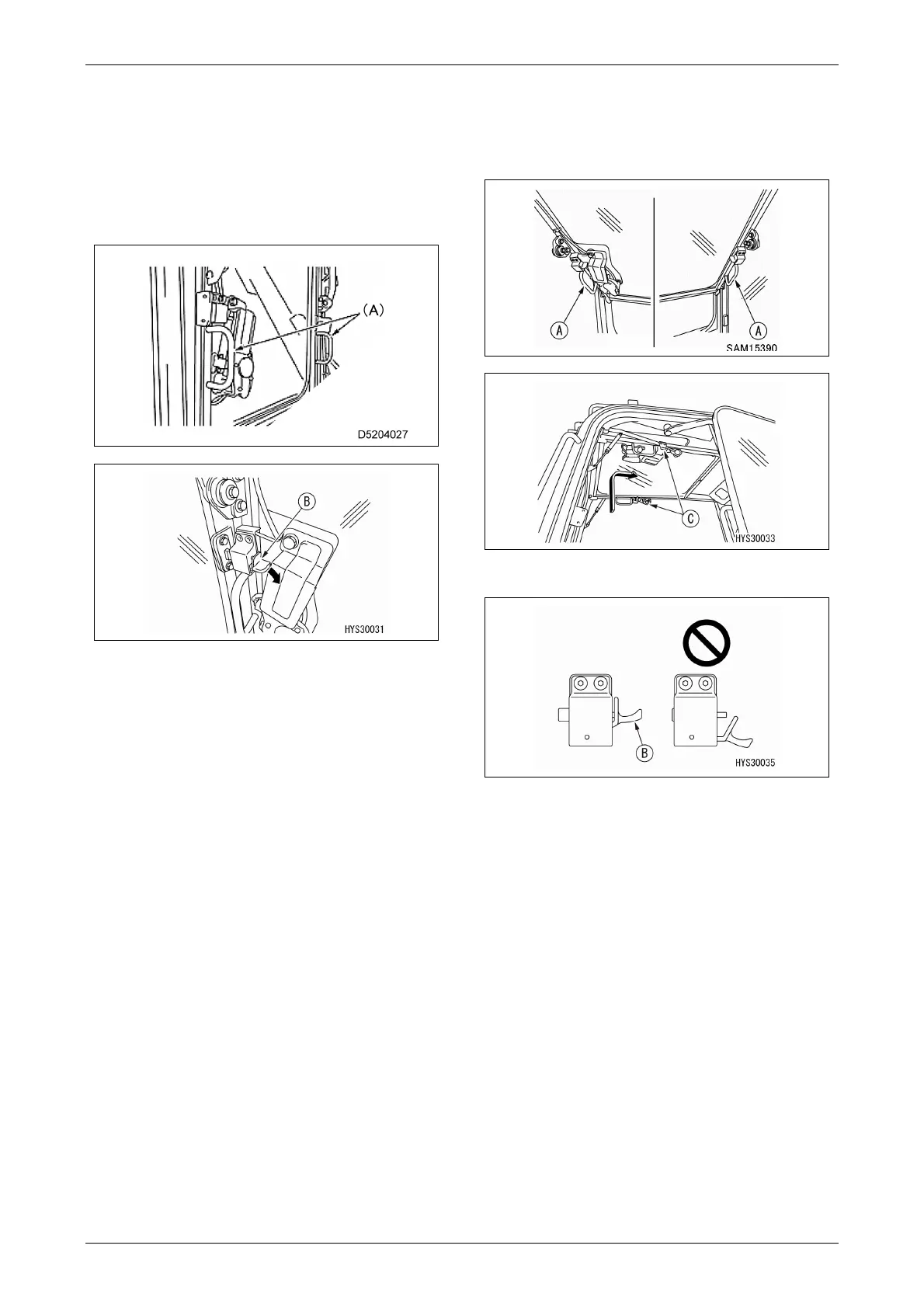

4. While holding the handles (A) (two locations)
on the right and left of the upper part of the
front window, push down the levers (B) (two
locations) with the thumb and disengage the
lock of the upper part of the front window. The
upper part of the front window can be
detached.
5. Hold and pull up the right and left handles (A)
from the cab inside and push them firmly
against lock (C) in the rear of the cab until it
locks with a click.
6. Check that the levers (B) are securely locked.
