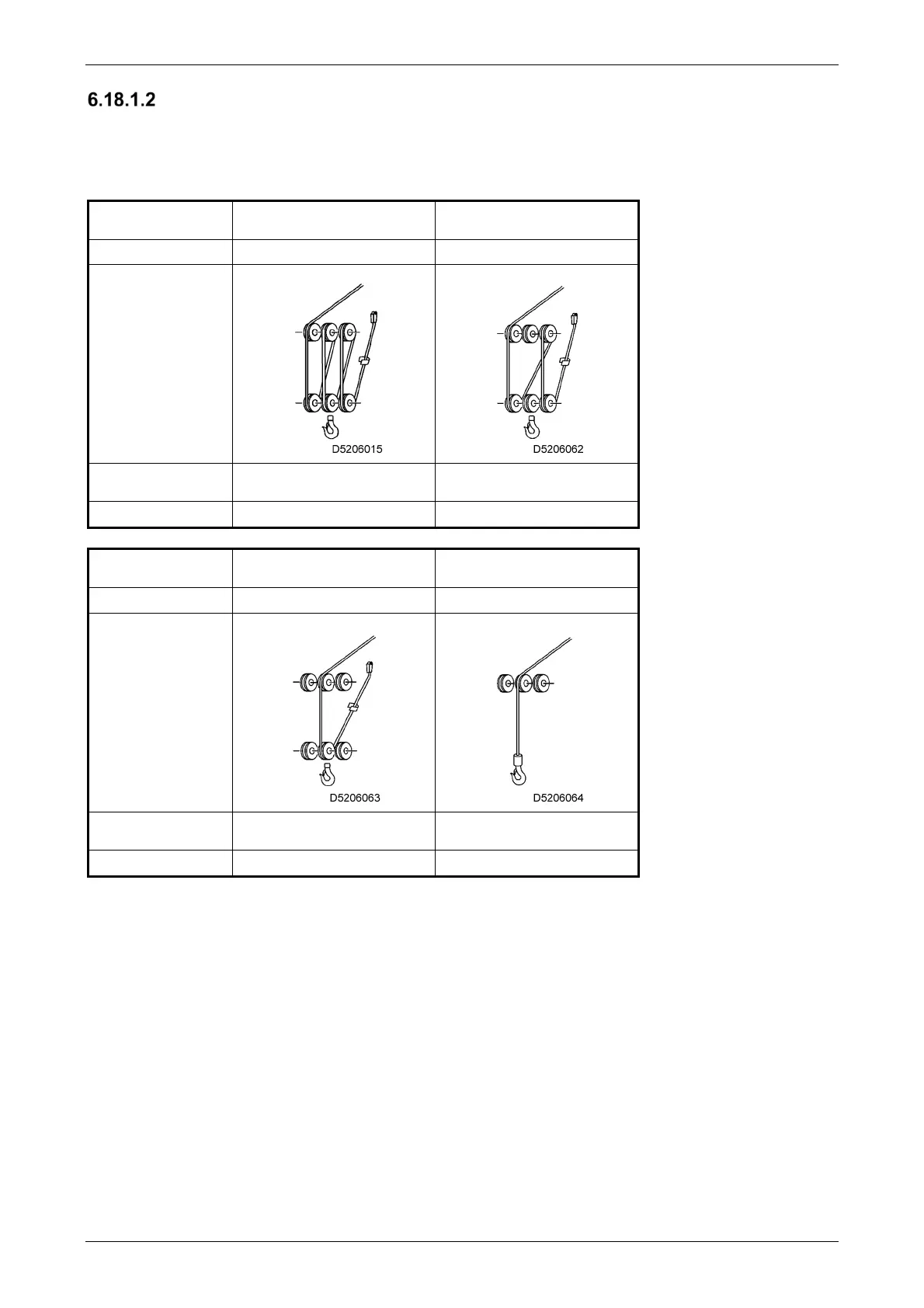

WINCH WIRE ROPE REEVING SYSTEM AND RATED TOTAL LOAD
Use wire rope so that the load per wire rope does not exceed 1,545 kg.
The table below shows the type of hook block, number of falls of wire rope, and the corresponding
maximum rated total load.
Hook type
Hook used for 6, 4, and 2
falls
Hook used for 6, 4, and 2
falls
Number of falls 6 falls 4 falls
Reeving system
Maximum rated
total load
8090kg 6090kg
Hook weight 90kg 90kg
Hook type
Hook used for both 2 falls
and 4 falls
Hook for single fall only
Number of falls 2 falls Single fall
Reeving system
Maximum rated
total load
3090kg 1520kg
Hook weight 90kg 20kg
