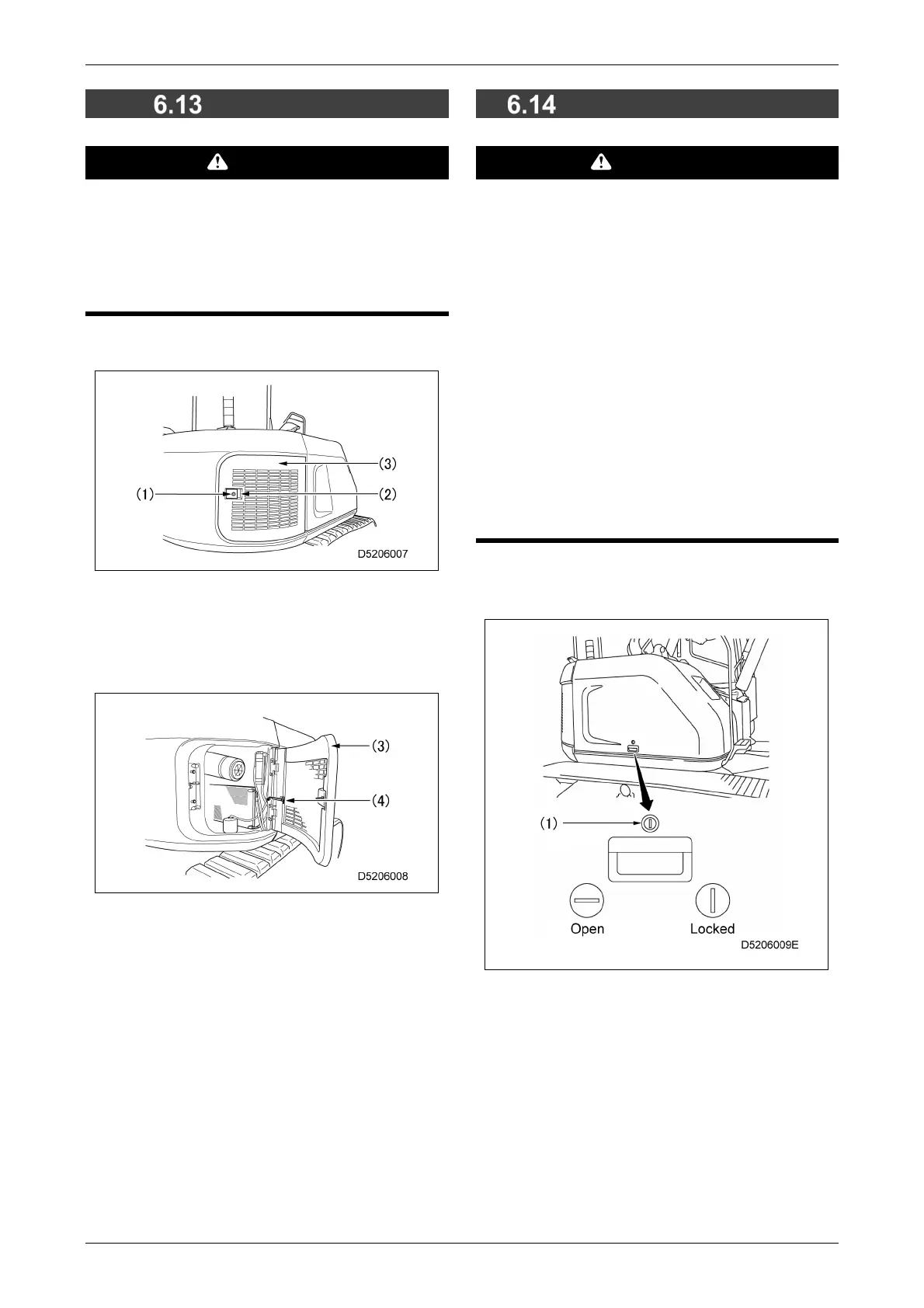

6.13 RIGHT COVER M A E D A Crawler Crane
6-22 5/2020 CC1908S-1
RIGHT COVER
CAUTION
• When performing inspection and
maintenance inside the door, use a stopper
to ensure the door stays open.
• Be sure to lock the door except when
opening it.
1. Unlock the door lock (1).
2. Insert your fingers into the door handle (2)
and open the door (3).
3. After opening the door (3), insert the rod (4) in
the slot to secure it in place.
4. To close the door (3), lift the rod (4) to remove
it from the slot and close the door.
5. Lock the door.
MACHINERY COVER
WARNING
• Never stand on the machinery cover other
than in the designated location. Otherwise,
there is a risk of slipping and falling.
For details, refer to "2.1.4 PRECAUTIONS
WHEN GETTING ON AND OFF THE
MACHINE" on P. 2-5.
• When performing inspection and
maintenance inside the machinery cover, be
sure to secure the machinery cover in the
open position using the machinery cover
supporting rod.
• Be sure to close the machinery cover during
all operations except for inspection.
• Be sure to lock the machinery cover except
when opening it.
1. Insert the key into the machinery cover open
knob (1) to unlock it.
