6.7 FUSES M A E D A Crawler Crane
6-16 5/2020 CC1908S-1
FUSES
CAUTION
Be sure to turn the disconnecting switch to
the "OFF" position when checking or
replacing fuses.
IMPORTANT
Fuses protect electrical parts and wires
from burning out.
• Blade fuses are used here. If a fuse is
corroded and shows white powder, be sure
to change the fuse.
• If a fuse has blown, always check the
cause in the circuit and fix the problem
before changing the fuse.
• Always make sure the replacement fuse is
of the same capacity.

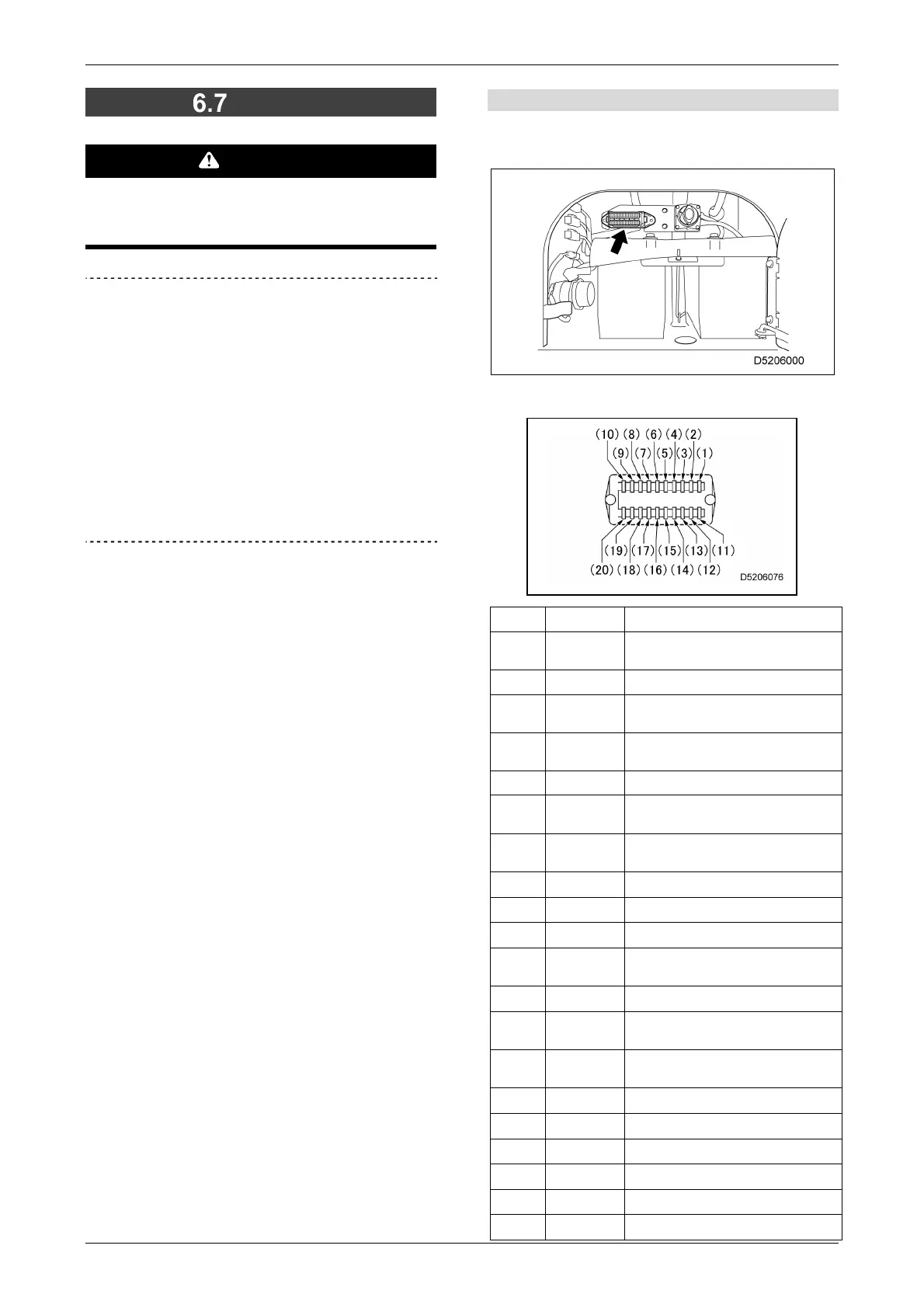

[1] Fuse box 1
The fuse box 1 is located inside the battery
compartment.
[Fuse capacities and circuit names]
No. Capacity Connection table
(1)
20 A
Main controller output
power supply
(2)
5A Override unit
(3)
10A
Emergency power supply
(EPC)
(4)
5A
Emergency power supply
(ON/OFF)
(5)
2A PCB power supply
(6)
5A
Working status lamp power
supply
(7)
5A
Tip over sensor power
supply
(8)
5A Radio control power supply
(9)
- -
(10)
- -
(11)
20 A
Engine controller control
power supply
(12)
20 A EGR valve
(13)
5A
Main controller control
power supply
(14)
15A
Permanent power supply
(floor)
(15)
10A Horn
(16)
- -
(17)
- -
(18)
- -
(19)
- -
(20)
20 A Fuel pump power supply
