M A E D A Crawler Crane 6.8 FUSIBLE LINKS
5/2020 CC1908S-1 6-17

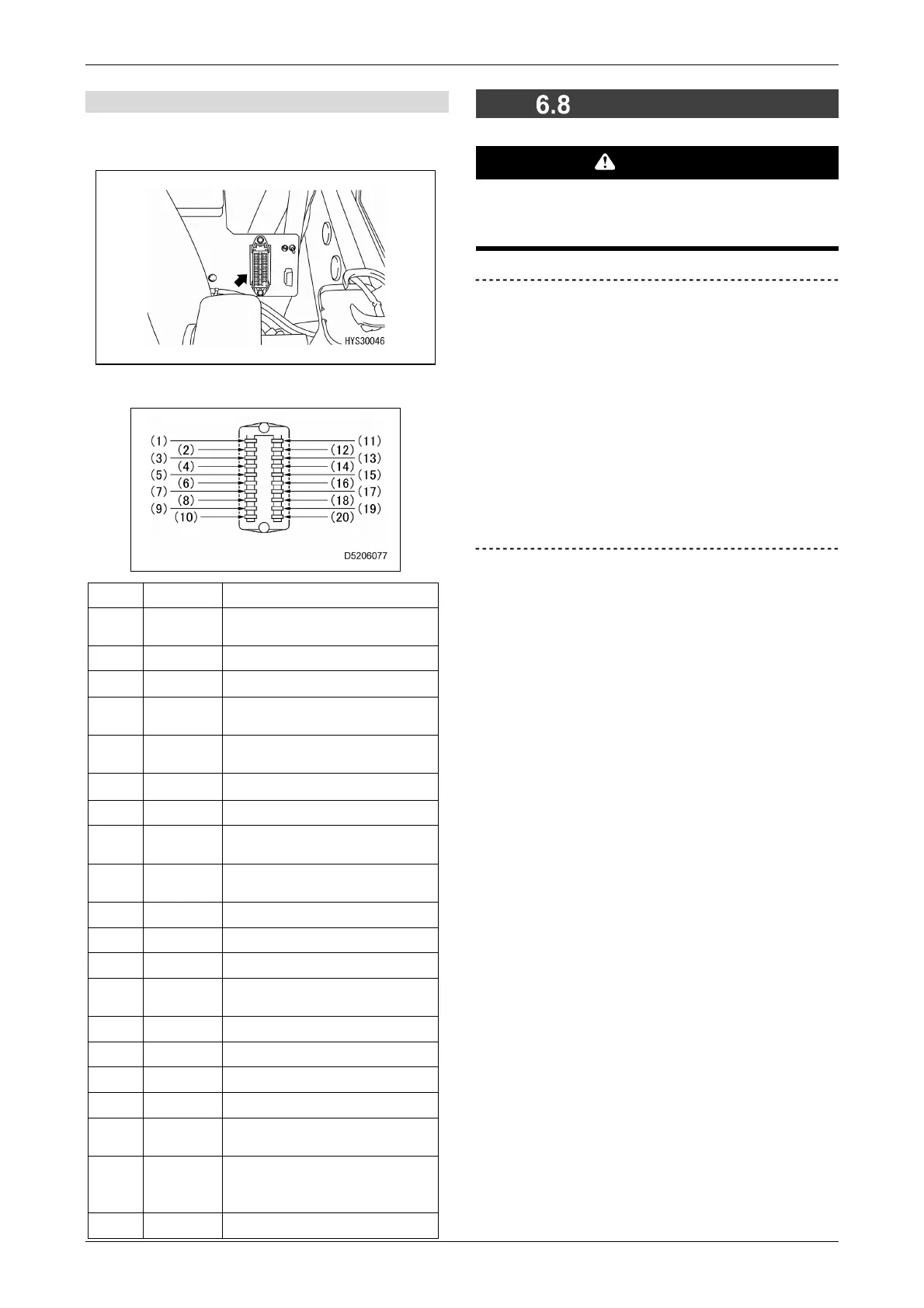

[2] Fuse box 2
The fuse box 2 is located on the left hand side
behind the seat in the cab.
[Fuse capacities and circuit names]
No. Capacity Connection table
(1)
5A
Emergency operation
switch/lock switch
(2)
5A Operation switch
(3)
10A Controller I/O power supply
(4)
10A
Boom working light and
head light
(5)
10A
Rear lamp and yellow
rotating lamp
(6)
5A Radio
(7)
10A Air compressor
(8)
15A
Air-conditioner power
supply
(9)
5A
Air-conditioner
interior/exterior air servo
(10)
5A Air-conditioning controller
(11)
10A Accessory power supply
(12)
5A Camera controller
(13)
3A
Camera controller power
supply
(14)
2A Image converter
(15)
10A Front window wiper/washer
(16)
10A Roof window wiper/washer
(17)
5A Option power supply
(18)
5A
Interior lamp/radio power
supply
(19)
5A
Controller control power
supply/monitor control
power supply
(20)
5A Starter switch ON
FUSIBLE LINKS
CAUTION
Be sure to turn the disconnecting switch to
the "OFF" position when checking or
replacing fusible links.
IMPORTANT
A fusible link refers to large fuse wire
installed in a circuit through which a large
capacity current flows.
As with a normal fuse, this protects electrical
parts and wiring from burning out due to
abnormal currents.
• If a fusible link has blown, always check the
cause in the circuit and fix the problem
before changing the fusible link.
• Always make sure the replacement fusible
link is of the same capacity.
