4.3 MOMENT LIMITER (OVERLOAD PREVENTION DEVICE) M A E D A Crawler Crane
4-26 5/2020 CC1908S-1
MOMENT LIMITER FUNCTION

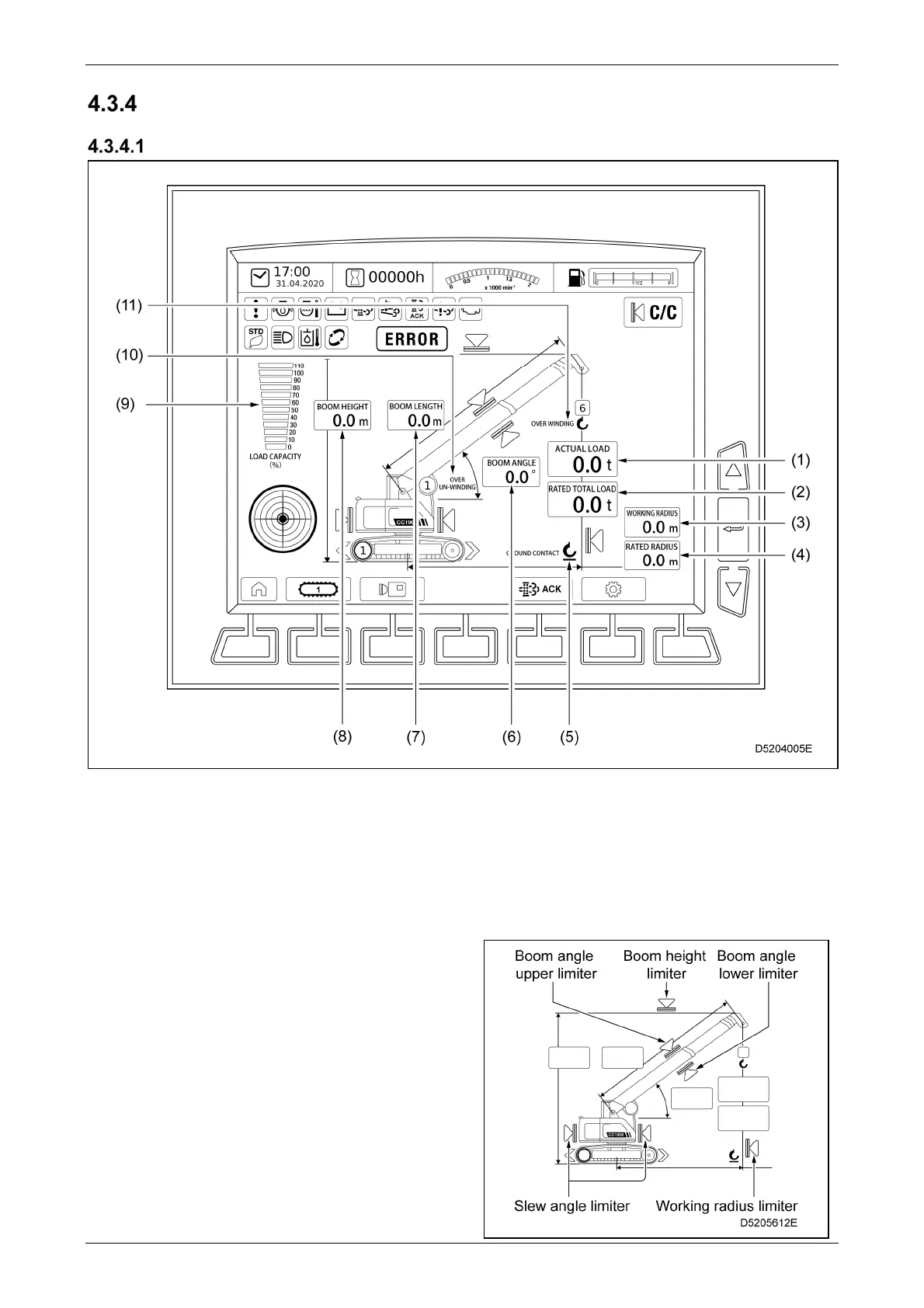

MOMENT LIMITER DISPLAY
(1) Actual load display
(2) Rated total load display
(3) Actual working radius display
(4) Rated working radius display
(5) Hook ground contact indicator
(6) Boom angle display
(7) Boom length display
(8) Boom height display
(9) Load factor display
(10) Over un-winding display
(11) Overwinding display
 For details on the moment limiter working
range limiter switches, refer to "5.4.10
MOMENT LIMITER WORKING RANGE
LIMITER OPERATION" on P. 5-37.
