M A E D A Crawler Crane 5.3 MACHINE TRAVELLING
5/2020 CC1908S-1 5-15
MACHINE TRAVELLING
POSTURE
WARNING
• When travelling this machine under its own
power, use it in its "travelling posture" with
the boom and hook block stowed.
• Travelling this machine on a public road is
prohibited by the Road Traffic Law.
Use the following travelling posture when moving
the machine:
5.3.2.1 MOVING BEFORE AND
AFTER WORK/DURING
TRANSPORTATION

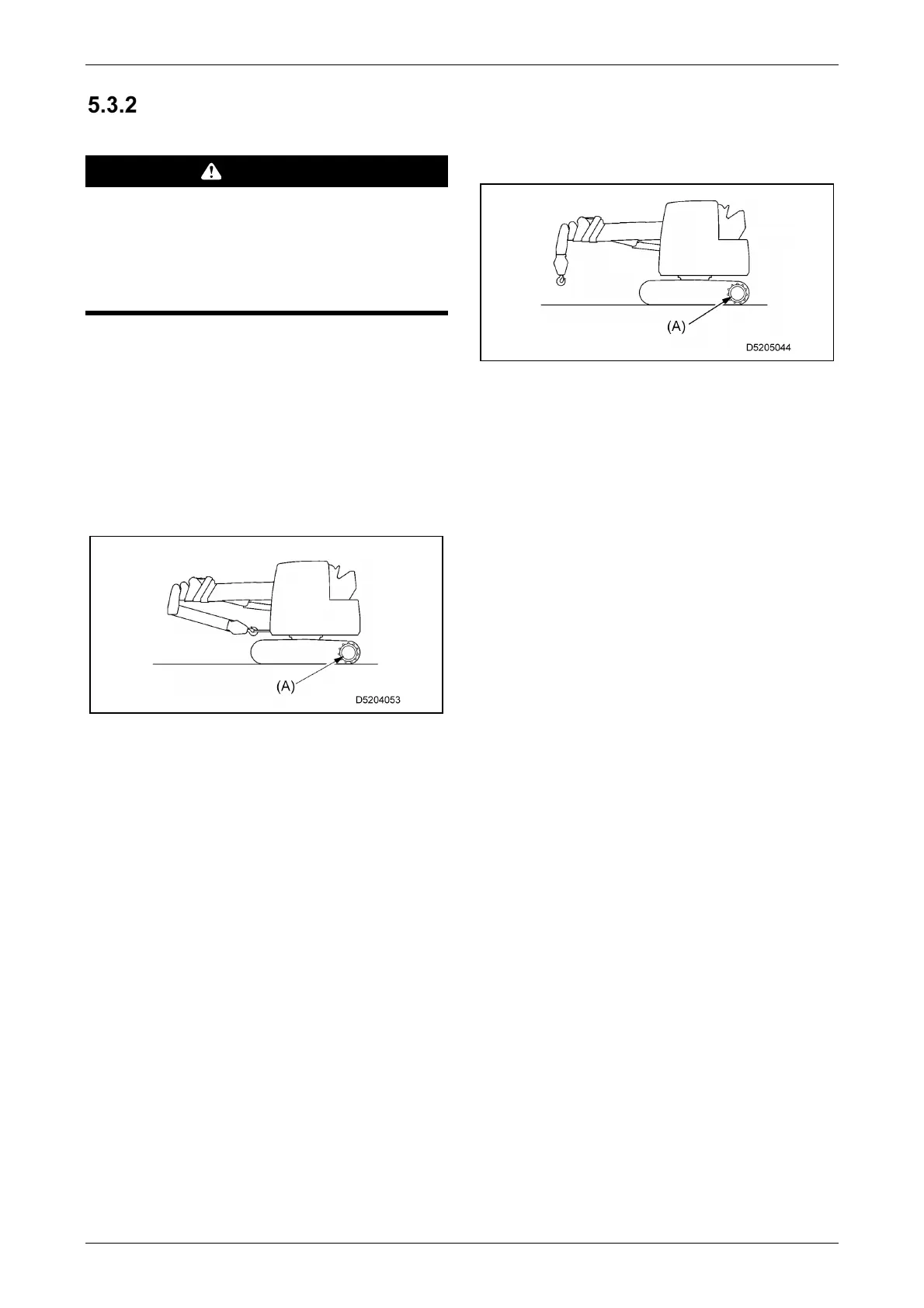

Use the travelling posture shown in the figure
when moving to and from the worksite and when
moving to and from transportation locations.
• Fully retract the boom.
• Fully lower the boom.
• Stow the hook block in the designated stowage
position (normal stowage position).
• Position the sprocket (A) to the rear.
5.3.2.2 MOVING DURING WORK
Use the travelling posture shown in the figure
when moving within the worksite during crane
operation.
• Fully retract the boom.
• Fully lower the boom.
• Stow the hook block in the simple stowage
position at the boom tip.
• Position the sprocket (A) to the rear.
 For details on how to stow the hook block,
refer to "5.4.11 CRANE STOWAGE
OPERATION" on P. 5-40.
