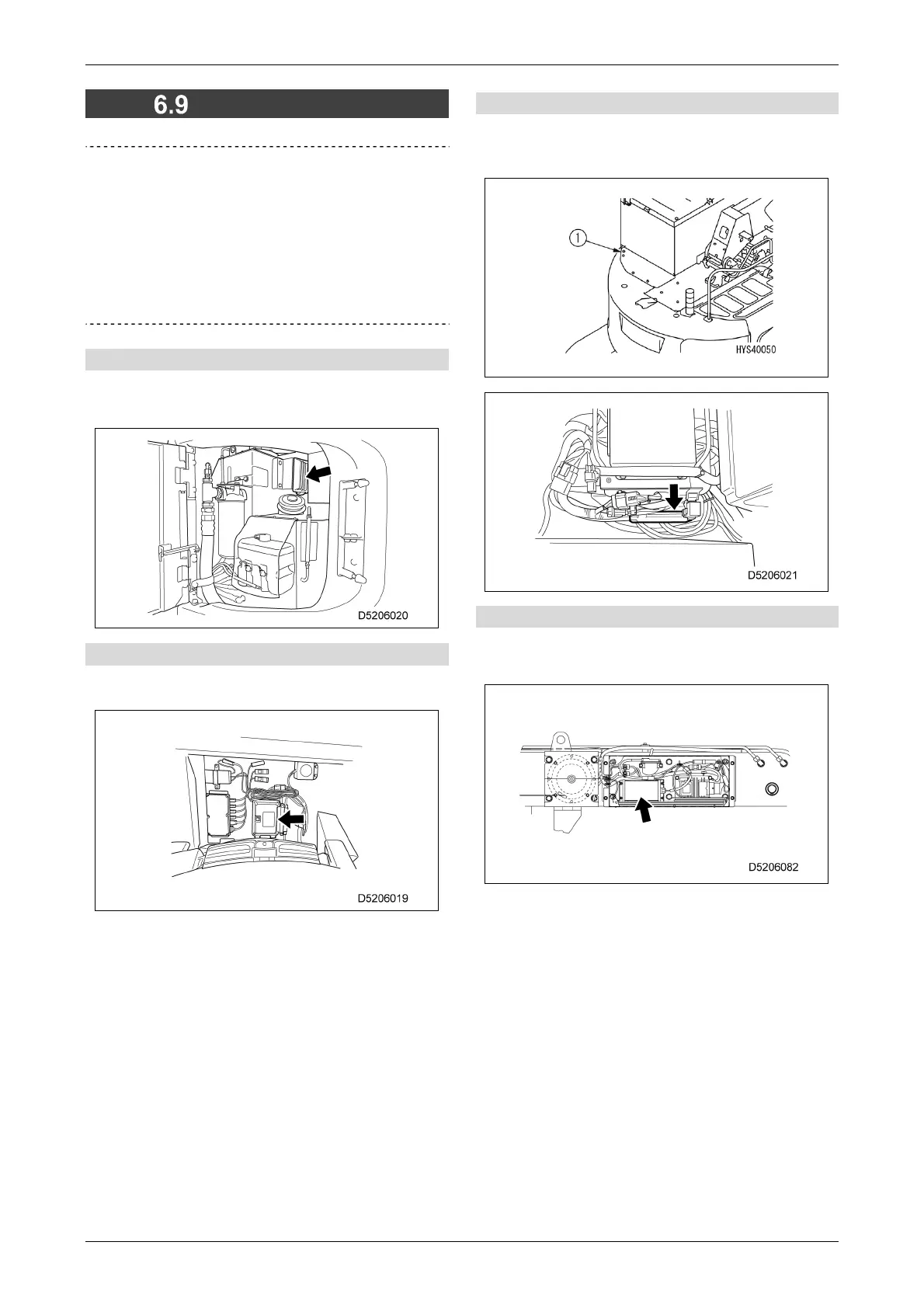

M A E D A Crawler Crane 6.9 CONTROLLER
5/2020 CC1908S-1 6-19
CONTROLLER
IMPORTANT
• Do not splash water, mud, juice, or other
liquids onto the controller.
• If an abnormality occurs in the controller, do
not repair it by yourself, but contact us or
our sales service agency for inspection or
repair.
[1] Machine body main controller
The machine body main controller is located
inside the left cover.
[2] Machine body sub controller
The machine body sub controller is located inside
the cover at the rear of the cab interior.
[3] Engine controller
Removing the top cover on the hydraulic oil tank
(1) reveals the engine controller located behind
the hydraulic oil tank.
[4] Fly jib controller (option)
The fly jib controller is located inside the cover on
the left side of the fly jib main unit.
