5.9 FLY JIB (OPTION) M A E D A Crawler Crane
5-60 5/2020 CC1908S-1

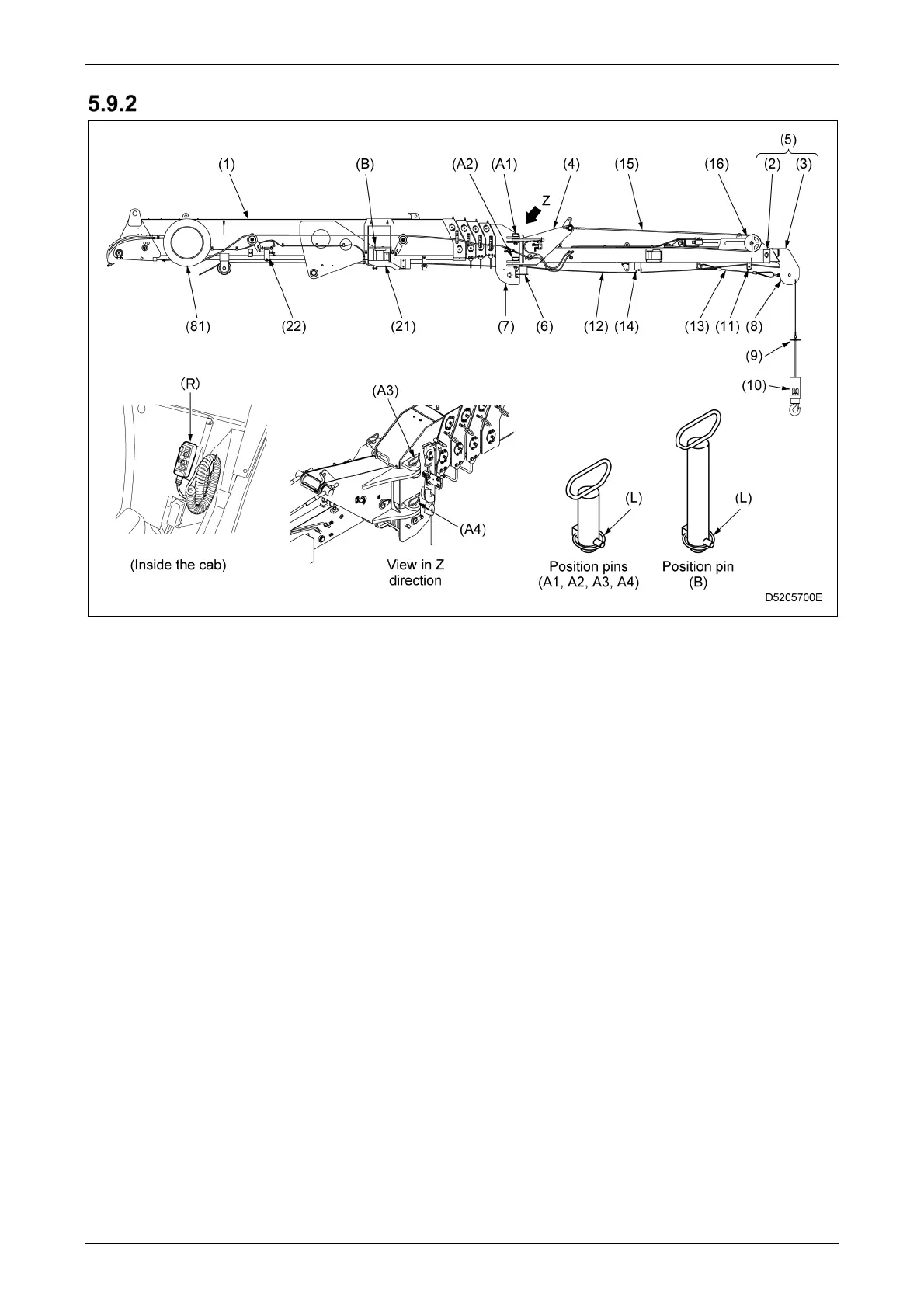

PART NAMES
(1) Main boom
(2) No. 1 fly jib
(3) No. 2 fly jib
(4) Fly jib base
(5) Fly jib
(6) Stowage wire guide
(7) Sheave (Boom)
(8) Sheave (Fly jib)
(9) Overwinding detector weight
(10) Single hook
(11) Snap sheave
(12) Wire rope
(13) Wire
(14) Guide sheave
(15) Derricking wire rope
(16) Derricking sheave
(21) Stowage bracket A
(22) Stowage bracket B
(81) Hose reel
(A1) Position pin A1
(A2) Position pin A2
(A3) Position pin A3
(A4) Position pin A4
(B) Position pin B
(L) Linchpin
(R) Fly jib remote controller
