5.10 SEARCHER HOOK (OPTION) M A E D A Crawler Crane
5-78 5/2020 CC1908S-1

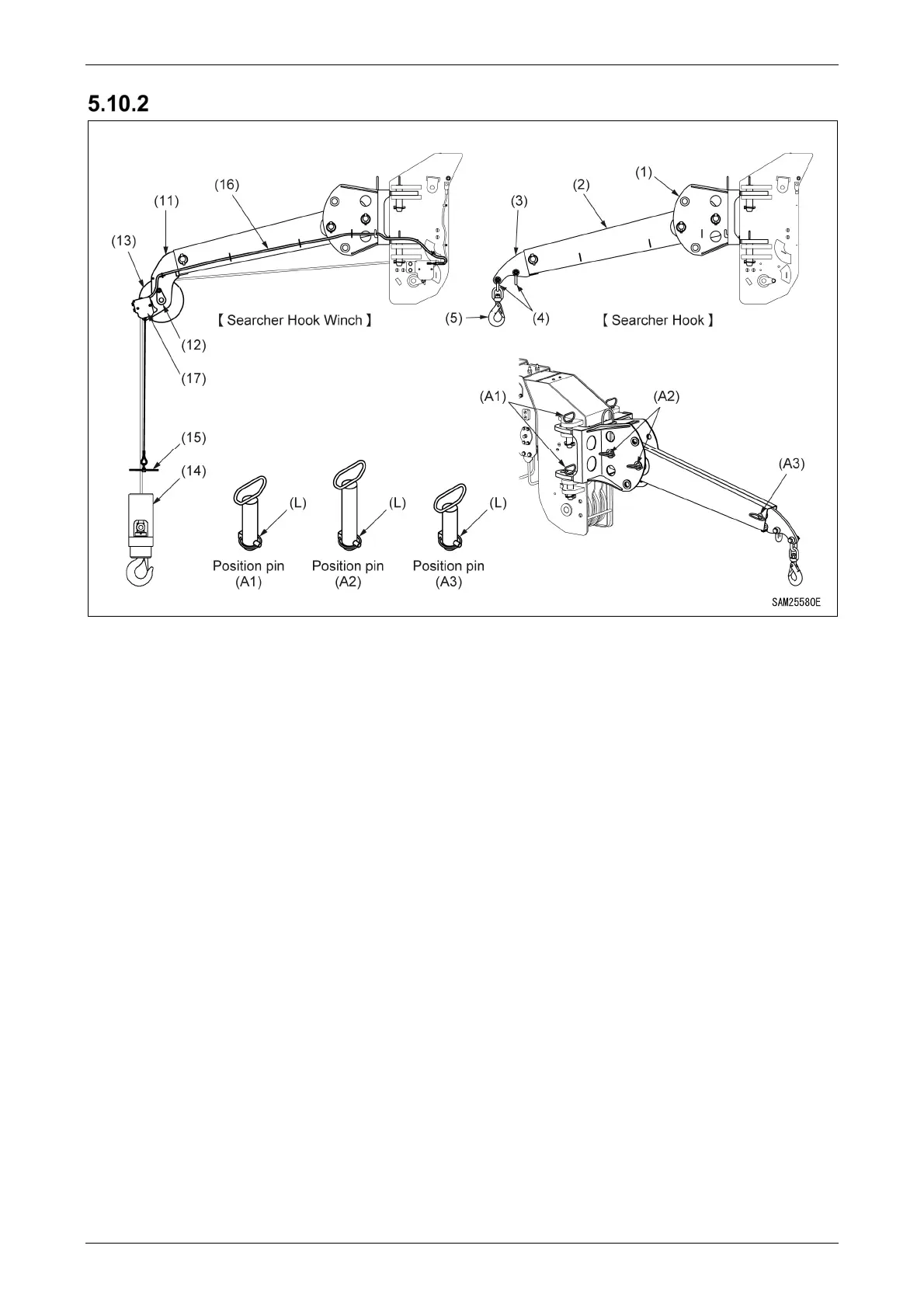

PART NAMES
(1) Bracket
(2) E boom
(3) Boom head
(4) Shackle
(5) Swivel hook
(11) Sheave head
(12) Sheave pin
(13) Sheave
(14) Single hook block
(15) Overwinding detector weight
(16) Overwinding detector harness
(17) Overwinding detector
(A1) Position pin A1 (φ35×148L)
(A2) Position pin A2 (φ30×186L)
(A3) Position pin A3 (φ30×130L)
(L) Linch pin
