M A E D A Crawler Crane 5.10 SEARCHER HOOK (OPTION)
5/2020 CC1908S-1 5-81

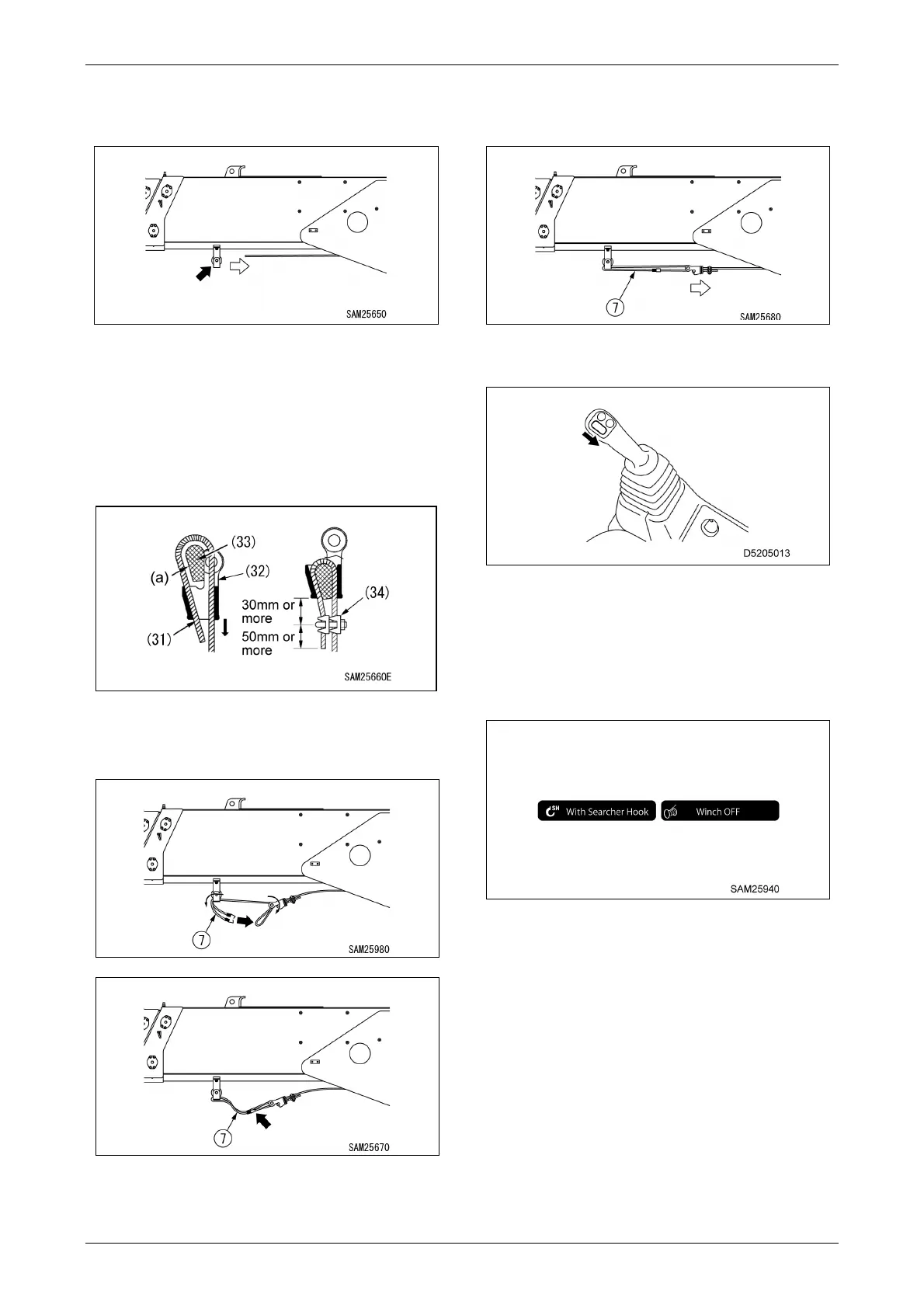

7. Wind the wire rope with the hook raising
operation until it comes off the guide roller at
the bottom of the boom.
8. Secure the end of the wire rope (31) to the
wire socket (32).
Pass the wire rope (31) through the wire
socket (32), put the rope wedge (33) in
position (a), and then pull the wire rope (31)
strongly in the direction of the arrow.
Install the wire clip (34) with the following
dimensions.
9. Fold the stowage rubber (7) in half and pass
it through the guide roller and wire socket on
the underside of the boom before hooking it.
10. Slide the hook stowage lever downward and
wind the wire rope until the stowage rubber
(7) is slightly taut.
Use the hook stowage lever to reel in the wire
rope. Be careful not to wind up too much, as
the stowage rubber (7) will be cut off.
11. Select "With Searcher Hook" in the searcher
hook setting on the user setting screen of
the monitor.
12. Set the searcher hook setting on the user
setting screen of the monitor to "Winch
OFF".
