M A E D A Crawler Crane 4.1 PART NAMES
5/2020 CC1908S-1 4-3

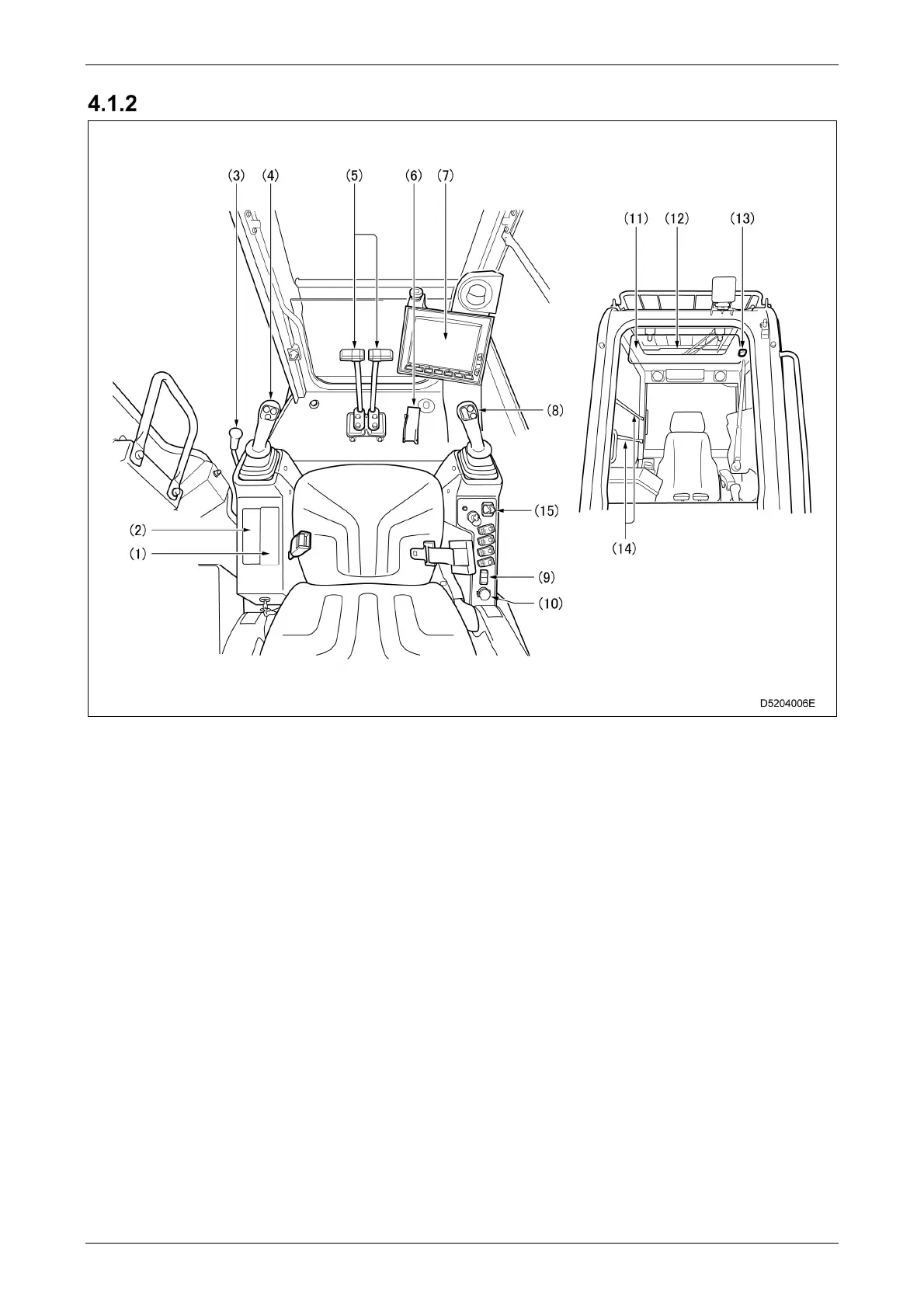

CAB INTERIOR UNIT NAMES
(1) Air conditioner operation unit
(2) Cab radio
(3) Safety lock lever
(4) Left-hand control lever
(5) Travel levers
(6) Accelerator pedal
(7) Monitor
(8) Right-hand control lever
(9) USB power supply port
(10) Accessory power supply
(11) Sun visor
(12) Sun shade
(13) Interior lamp
(14) Option bar (Option)
(15) Blade control lever (Option)
For details on the individual operating switches, refer to "4.6 SWITCHES" on P. 4-35.
